2250 SERVICE/MAINTENANCE MANUAL INTRODUCTION
1
Restraining section of counterbalance valves open,
controlling fluid flow out of jacking cylinders. Fluid then exits
counterbalance valves and flows out of upper accessory
valve before returning to tank through return manifold. If
more power is needed to extend jacks, engine speed can be
increased with remote engine speed switch in remote start
junction box on right side of rotating bed.
When power button or jacking switch is moved to off position,
the PC sends a 0 volt output to shift spool of solenoid valves
HS-25 and HS-27 to center position.
RF-25
50 AMP
8P1
K1
8
5A
F13
15A
8SR
CRANE DISPLAY
WD-19
WD-20
FRONT ADAPTER FRAME PINS ENGAGE
0
GND
CONTROLLER
PROGRAMMABLE
POWER
LEFT FRONT JACK EXTEND
CONTROLLER
PROGRAMMABLE
FRONT ADAPTER FRAME PINS DISENGAGE
REAR ADAPTER FRAME PINS ENGAGE
REAR ADAPTER FRAME PINS DISENGAGE
LEFT FRONT JACK RETRACT
RIGHT FRONT JACK EXTEND
RIGHT FRONT JACK RETRACT
LEFT REAR JACK EXTEND
LEFT REAR JACK RETRACT
RIGHT REAR JACK EXTEND
RIGHT REAR JACK RETRACT
HS
24
HS
26
HS
29
HS
31
HS
32
RINGER JACKS POWER
HS
22
HS
23
HS
28
HS
30
LEVEL ALARM
R
10 VDC REGULATED SUPPLY
WA-01
F16
3A
87FA
LEVEL SENSOR X
0
LEVEL SENSOR X
0
WC-36
WB-11
WA-20
WA-33
HS
21
HS
25
HS
27
WC-27
HS
12
AUXILIARY SYSTEM DISABLE

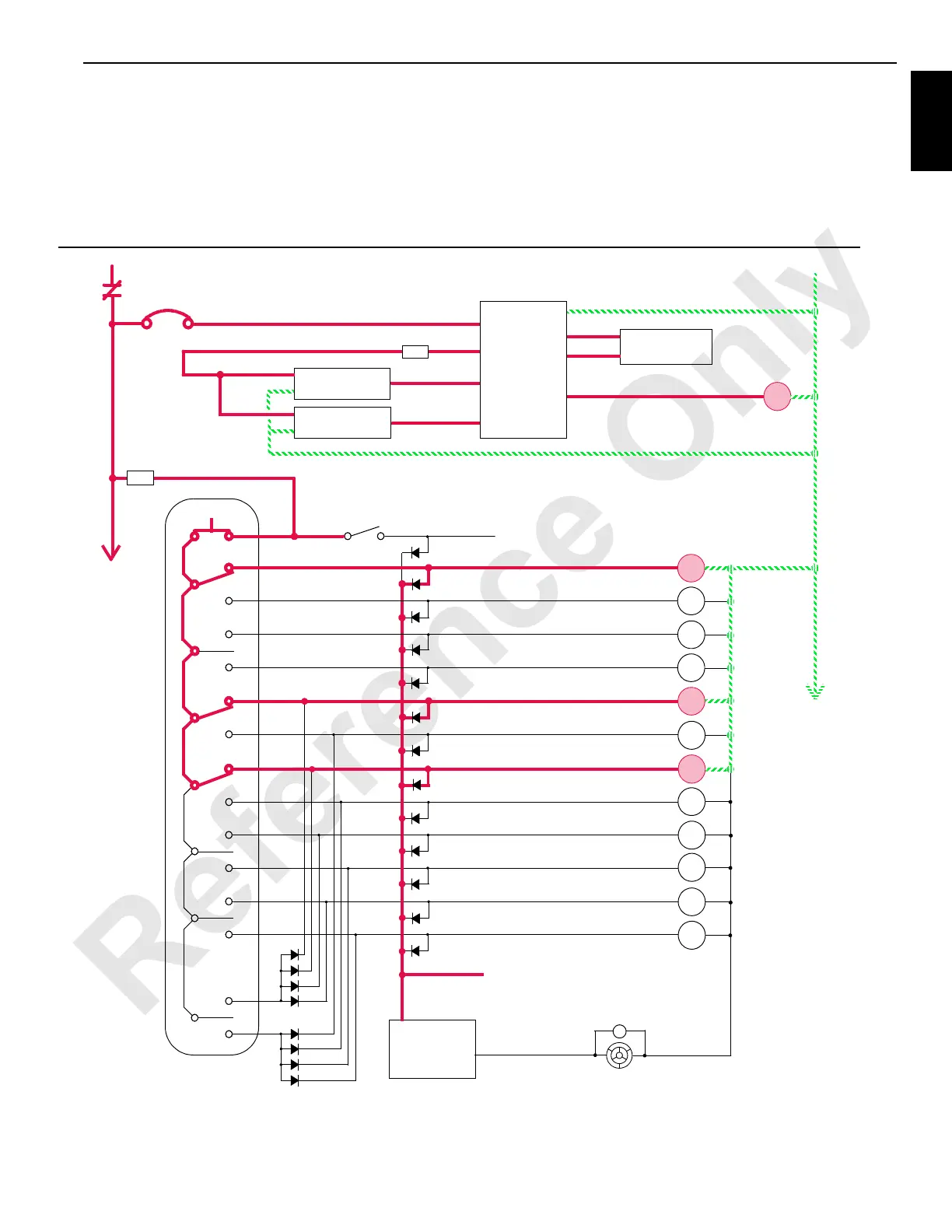

FIGURE 1-33
