Transmission

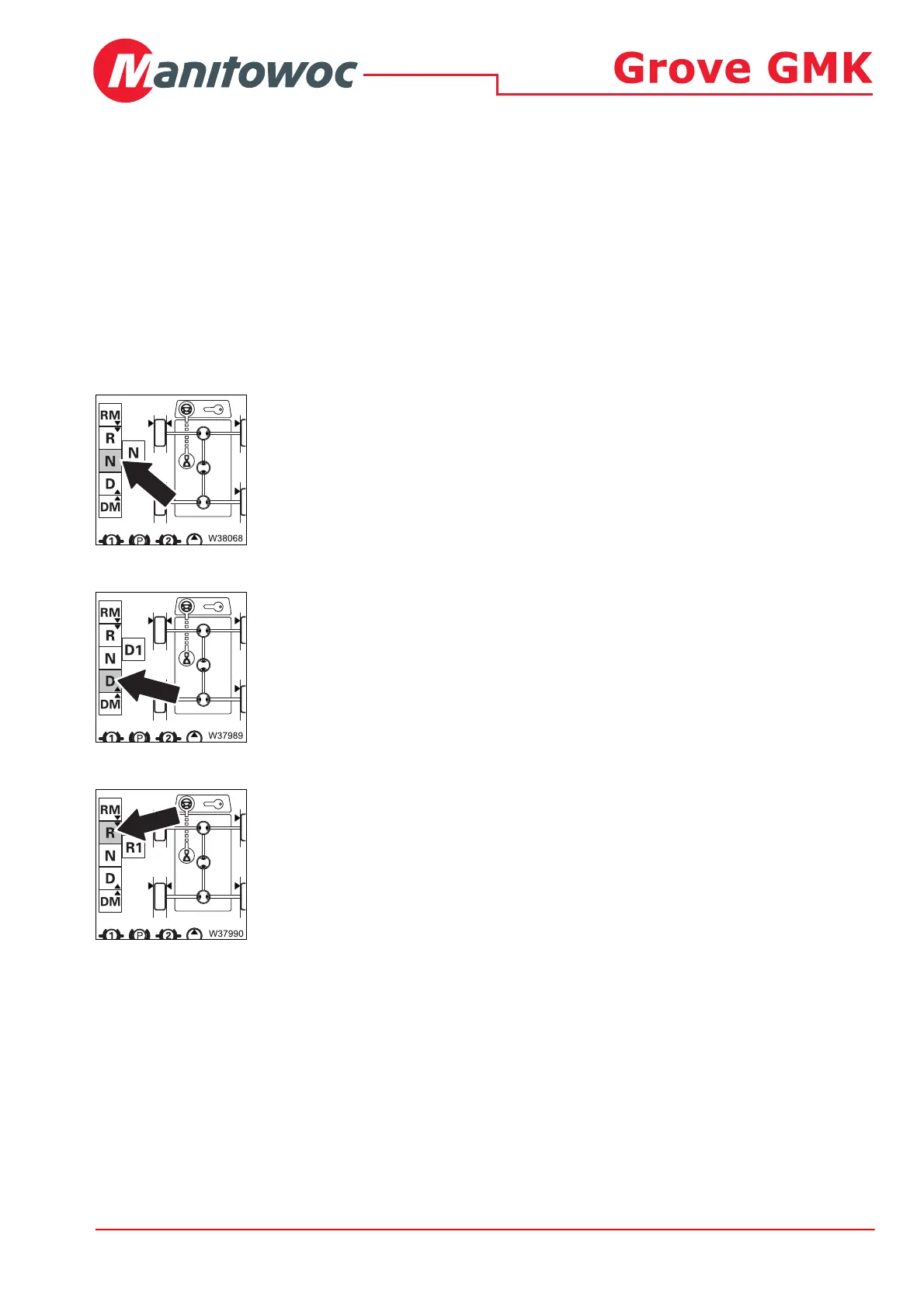

Operating the transmission when driving with rigged truck crane,
à Operating the transmission, p. 26.
The following applies to all operating elements:
– Driving mode must be switched on
– The
Service brake pedal must be applied
– The truck crane must be stationary.
Neutral position N
Transmission mode D
Transmission mode R
s
– To switch on: Select and confirm symbol – letter is white – no gear is
engaged
– To switch off: Shift to a different gear – letter is blue
– To switch on: Select and confirm symbol – letter is white
– Select forwards starting gear
– Crane's hydraulic system
Driving mode off
– Crane movements disabled
– To switch off: Shift to a different gear – letter is blue
– To switch on: Select and confirm symbol – letter is white
– Select reverse starting gear
– Crane's hydraulic system
Driving mode off
– Crane movements disabled
– To switch off: Shift to a different gear – letter is blue
