Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 690 en 11 - 41
GMK4100L-1
23.11.2017
11.4.4 Confirm the rigging mode and lifting capacity table
You must confirm the rigging mode together with the display lifting capac-
ity table before commencing crane operation. Some parts of the procedure
are different, depending on the entered slewing range type.
Slewing range
type
Standard
If the MAXbase slewing range type has been entered; à p. 11 - 43.
• Check whether the current rigging mode of the truck crane corresponds
to the displayed rigging mode.
• Check:
• Correct any incorrectly entered rigging
modes if necessary.

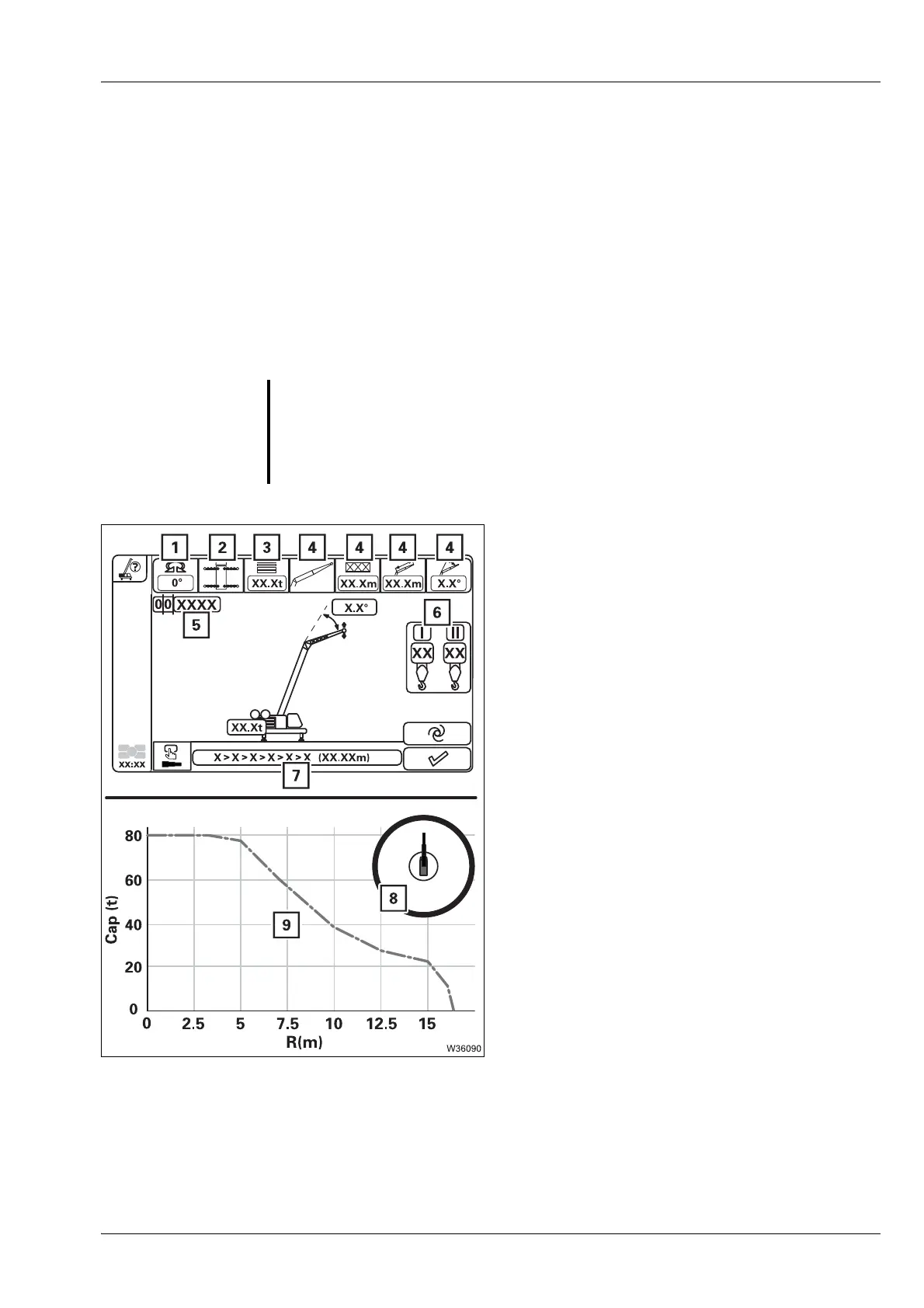

The displayed lifting capacity table (9) applies
to the RCL code (5) in the corresponding slew-
ing range (8) and for the preselected telescope
status (7).
If the actual rigging mode is displayed correctly
and the planned operation can be performed
within the displayed working range (8) then
you can confirm the rigging mode.
s
G
Risk of accidents due to an incorrectly set RCL
If the current rigging mode varies from the displayed rigging mode, the
maximum load displayed by the
RCLwill not correspond to the actually per-
missible lifting capacity according to the
lifting capacity table.
Overloading and accidents will certainly be the result.
–1 The slewing range for the planned job
–2 The rigged outrigger span
–3 The rigged counterweight
–4 The rigged boom system
–6 The number of reeved hoist rope lines
