Rigging work
12.8 Outrigger operation
Operating manual 3 302 690 en 12 - 39
GMK4100L-1
23.11.2017
12.8 Outrigger operation

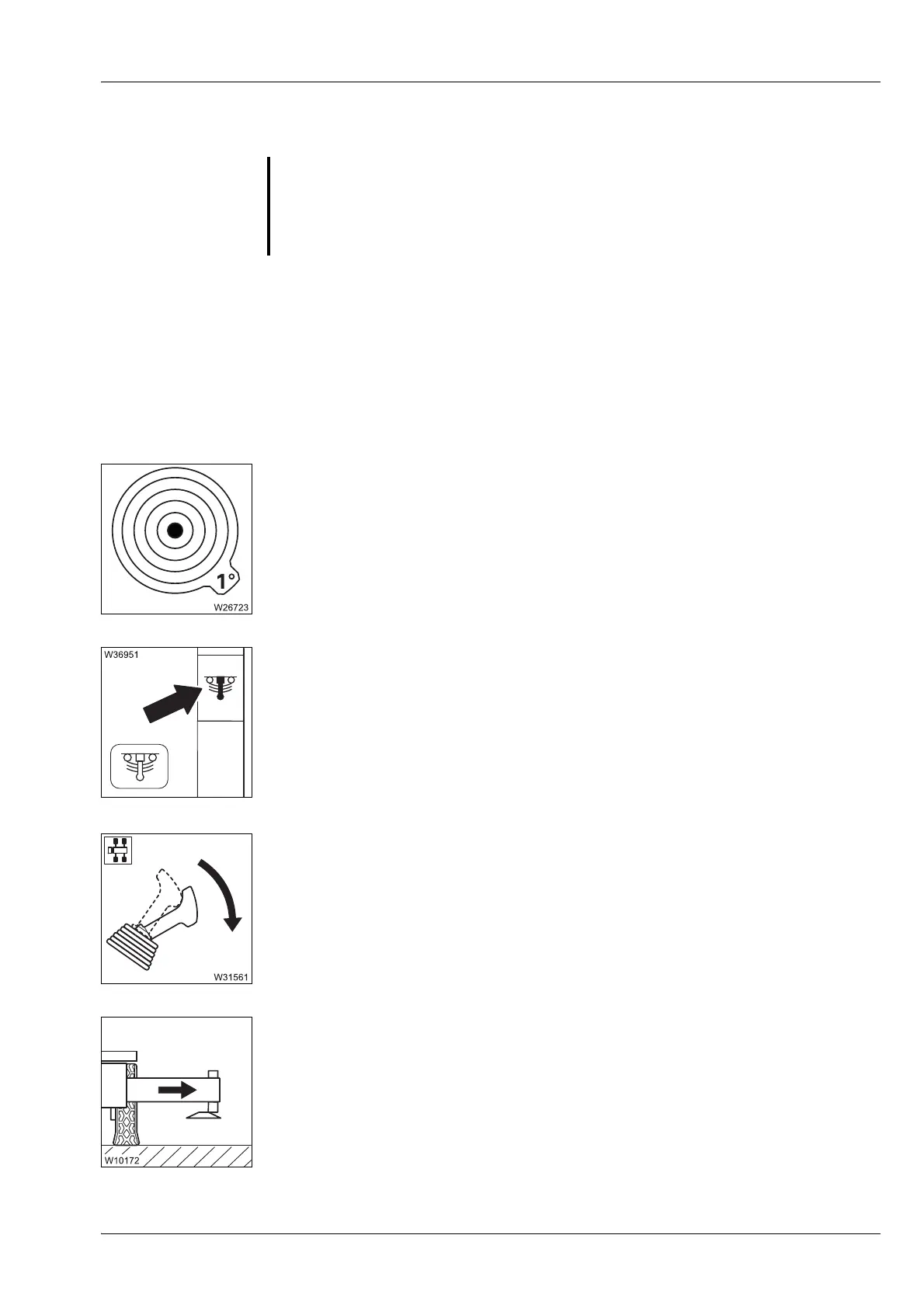

12.8.1 CHECKLIST: Extending the outriggers
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. Level the truck crane with the level adjustment system and lower it as
far as possible;
à p. 5 - 53.
2. Deactivate (Lock) the suspension – symbol red (suspension off);
à p. 5 - 17.
3. Engage parking brake;
à p. 5 - 46.
4. Extend all outrigger beams to the required span;
–For the
Standard slewing range type; Ã p. 12 - 30
–For the
MAXbase slewing range type; Ã p. 12 - 34
à Setting the outrigger spans, p. 12 - 44
à Extending/retracting outrigger beams, p. 12 - 47.
s
G
Danger of crushing by extending outrigger beams.
You may only activate the outriggers if you yourself or a banksman with
whom you are in visual contact have an unobstructed view of their
movements.
