Driving modes
6.5 Installing/removing the outrigger beams
6 - 36 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
6.5.6 Removing/attaching outrigger pads
You only need remove the outrigger pads if the outrigger beams are to be
transported lying on their side.
For transportation in a suitable holding frame, the outrigger beams can be
set down on the outrigger pad.
Removing the
outrigger pads
Handling is easier if you remove the outrigger pad before removing the
outrigger beams.

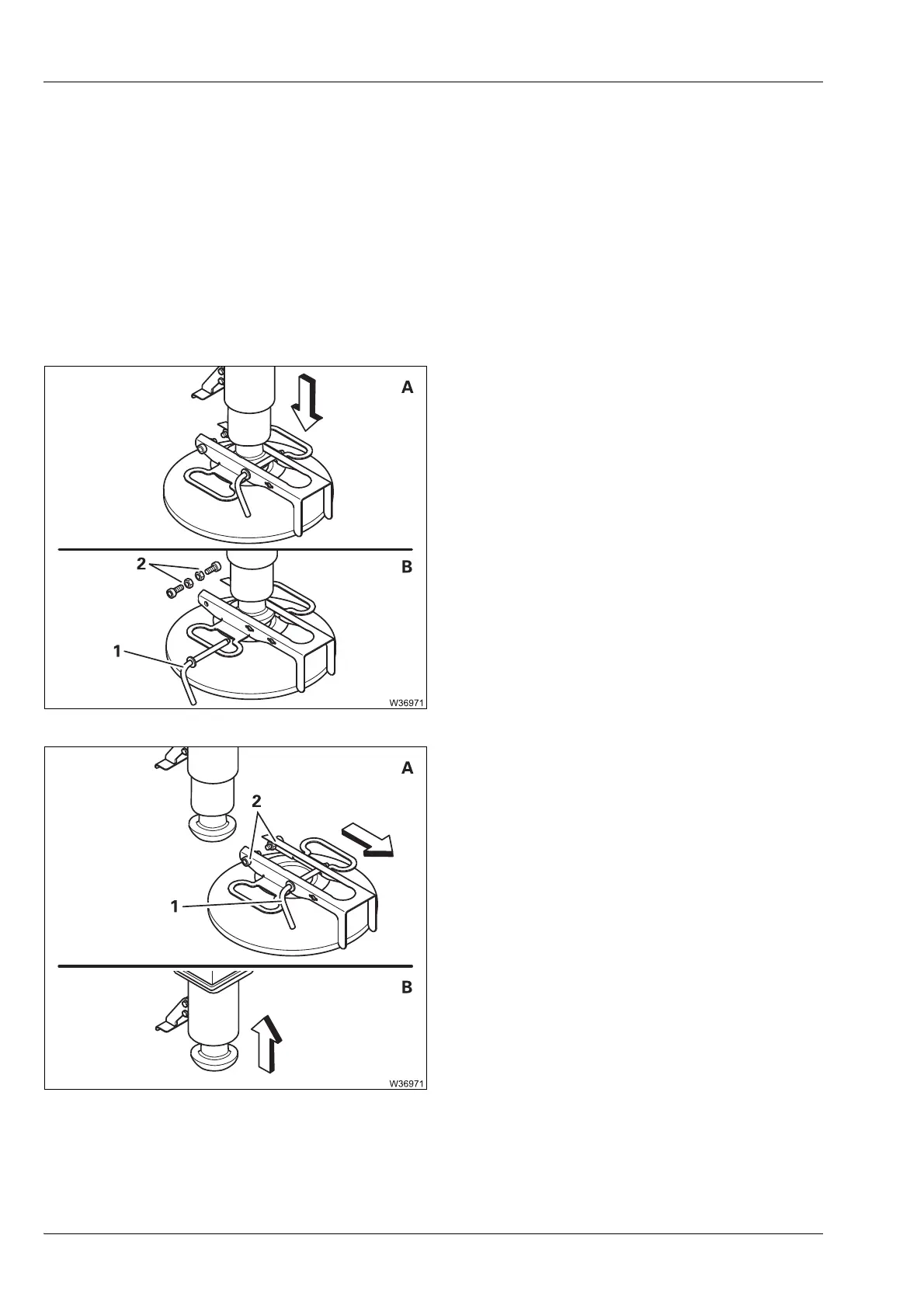

• (A) – Move the outrigger pad into the oper-
ating position.
• Extend the outrigger cylinder until the out-
rigger pad just touches the ground but is not
yet under strain.
• (B) – Remove out the pin (1).
• Remove the bolts/nuts (2).
• (A) – Pull the outrigger pad off the outrigger
cylinder.
• Insert the pin (1) and secure it.
• Fasten the bolts/nuts (2).
• (B) – Fully retract the outrigger cylinder.
• Remove the other outrigger pads in the
same way.
