Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 690 en 12 - 85
GMK4100L-1
23.11.2017
12.9.8 Counterweight hoist unit

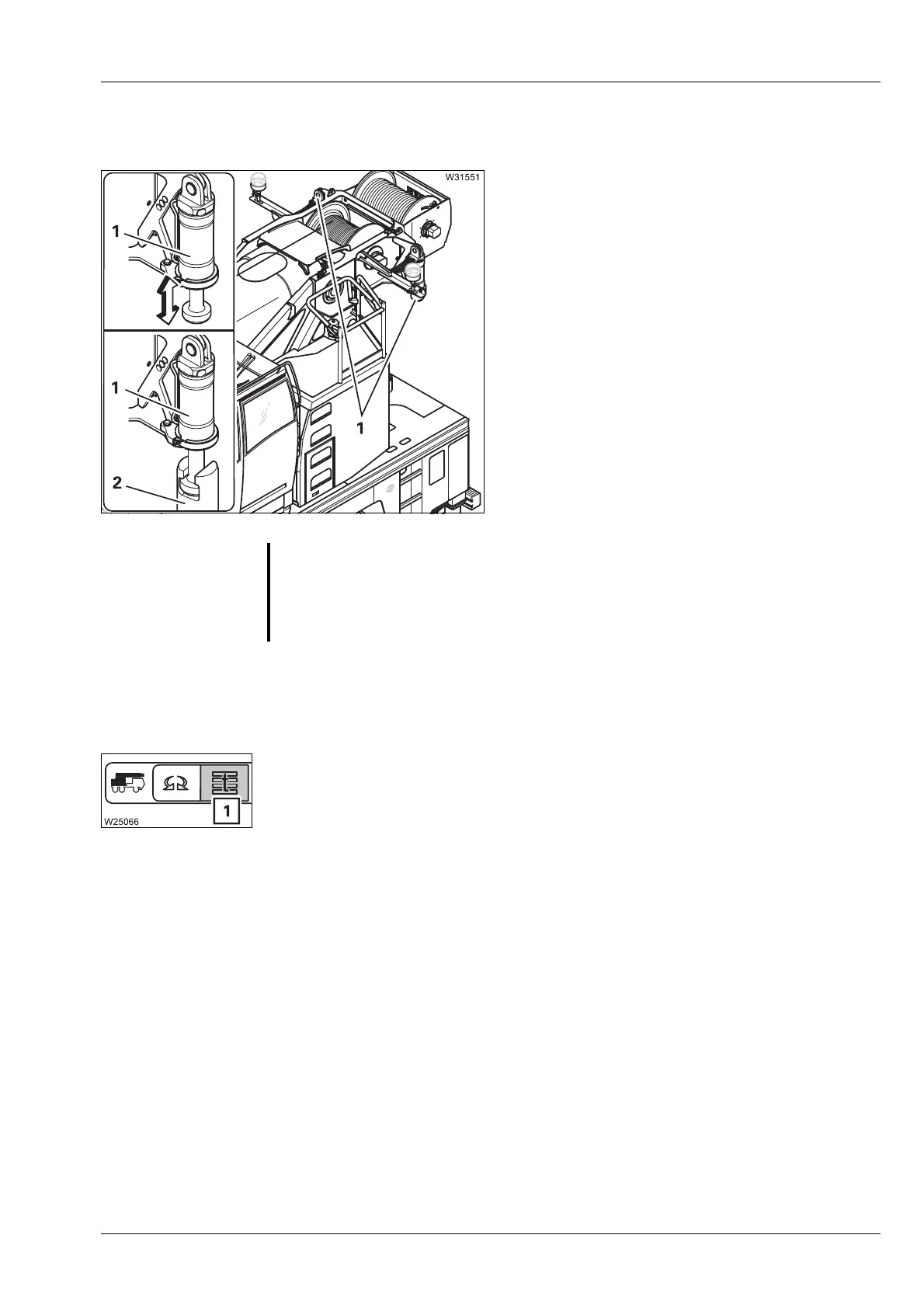

The lifting cylinders (1) can be extended and
retracted.
To lift and lower the counterweight, the lifting
cylinders are screwed into the 2.7 t base
plate (2).
Counterweight
menu
To operate the counterweight hoist unit, you must open the
Counterweight
menu.
Open menu
• Open the Counterweight menu (1).
s
G
Risk of crushing when lifting and lowering the counterweight!
Make sure nobody is on the counterweight platform while the
counterweight is being lifted or lowered.
