Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 158 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
9.3.2 Transmission
The following applies to all operating elements:
–The
Driving mode menu is opened automatically
–The
Service brake pedal must be applied,
– The truck crane must be stationary.
The transmission modes D and R cannot be selected in the
Driving mode
menu – operation of the transmission for on-road driving;
à p. 5 - 25.
The transmission modes DM and RM are provided for driving from the
crane cab – operating the transmission when driving a rigged truck crane;
à Operating the transmission, p. 13 - 27.

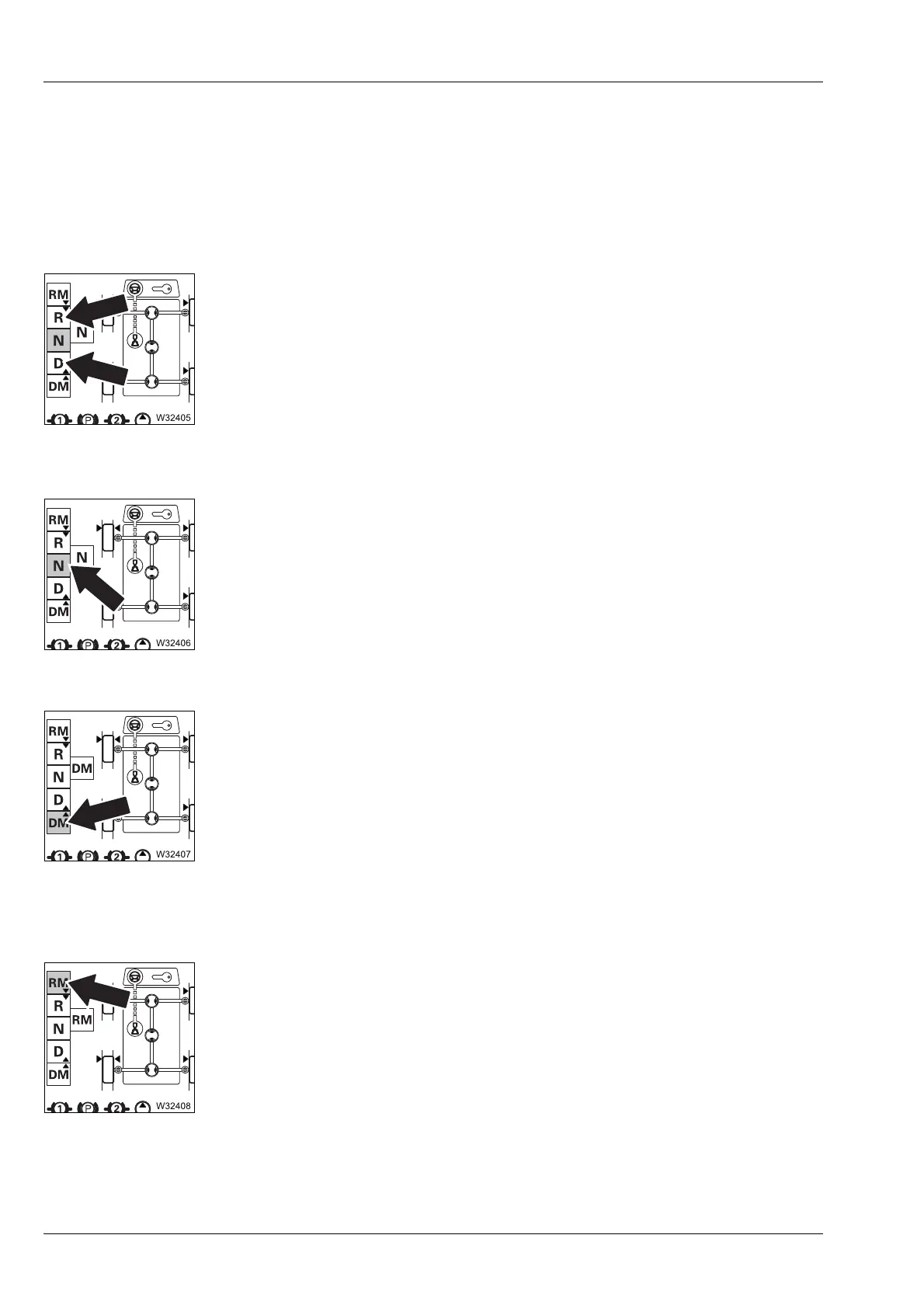

Neutral position N
Transmission mode DM
Transmission mode RM
– Switch on: Select and confirm symbol – letter is white –
No gear engaged
– Switch off: Shift to DM or RM – letter is blue
– Switch on: Select and confirm symbol – letter is white
When at a standstill – Select forwards starting gear
When driving forwards – Select a suitable gear,
clutch engages
When driving in reverse – Select neutral
– Switch off: Shift to RM or N – letter is blue
– Switch on: Select and confirm symbol – letter is white
When at a standstill – Select reverse starting gear
When driving forwards – No gear change
When driving in reverse – Select neutral
– Switch off: Shift to D, L or N – letter is blue
