Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 690 en 12 - 71
GMK4100L-1
23.11.2017
12.9.2 Counterweight sections
Depending on the version, the GMK4100L-1 can be equipped with a
counterweight mass of 4.5 t (9,920 lbs) or 26.2 t (57,761 lbs).

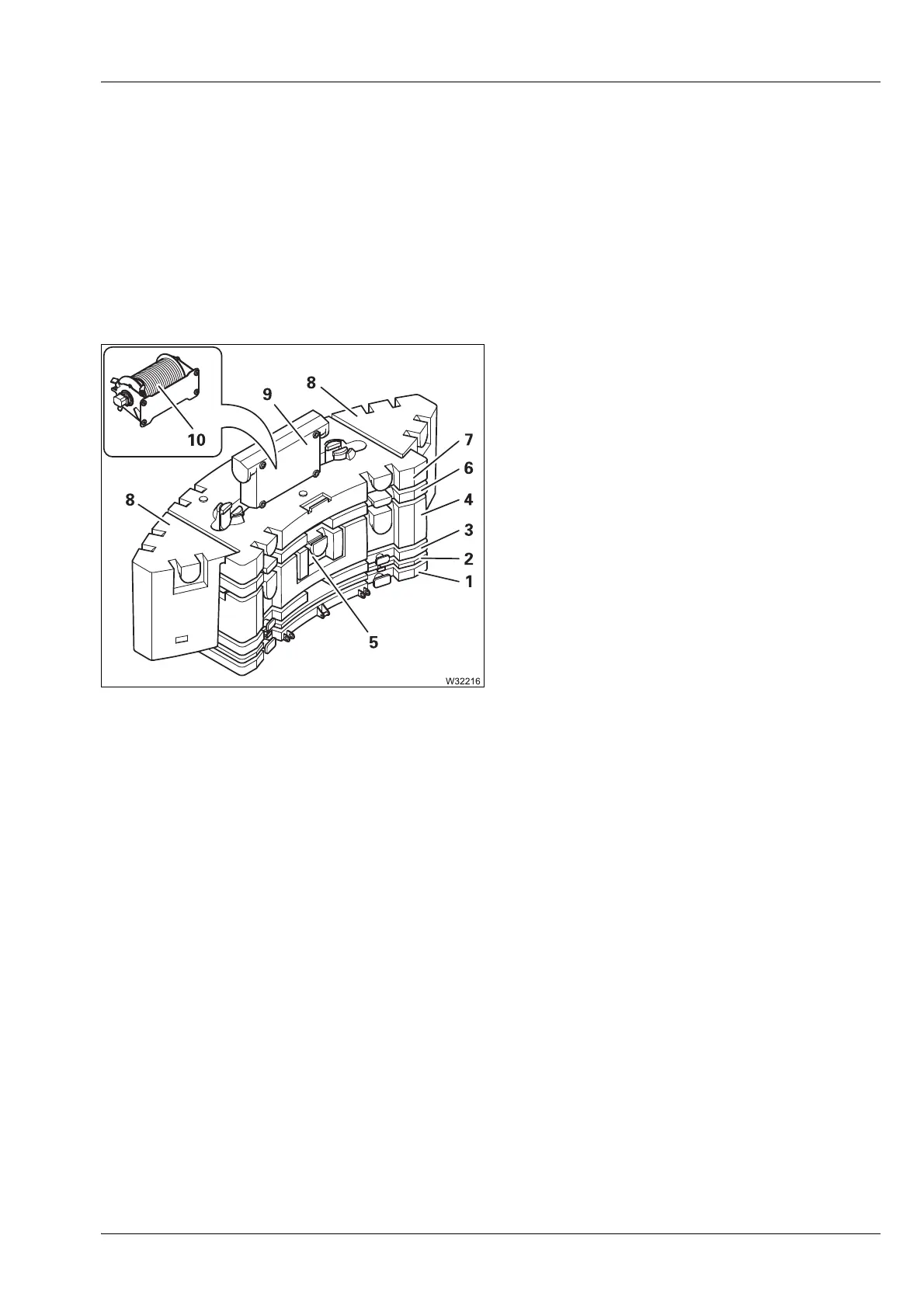

There are various counterweight sections, depending on the rigging of the
truck crane.
– one 0.8 t plate (9) or the auxiliary hoist (10),
– one 2.7 t base plate (1),
– one 1.0 t plate (2)
– one 2.1 t section (3),
– one 7.1 t section (4),
– one 1.5 t block (5),
– one 2.2 t section (6),
– one 4 t section (7),
– two 2.4 t blocks (8).
