Manitowoc Grove GMK4100L-1 User Manual

Driving modes
6.4 Rigging the auxiliary hoist
Operating manual 3 302 690 en 6 - 23
GMK4100L-1
23.11.2017

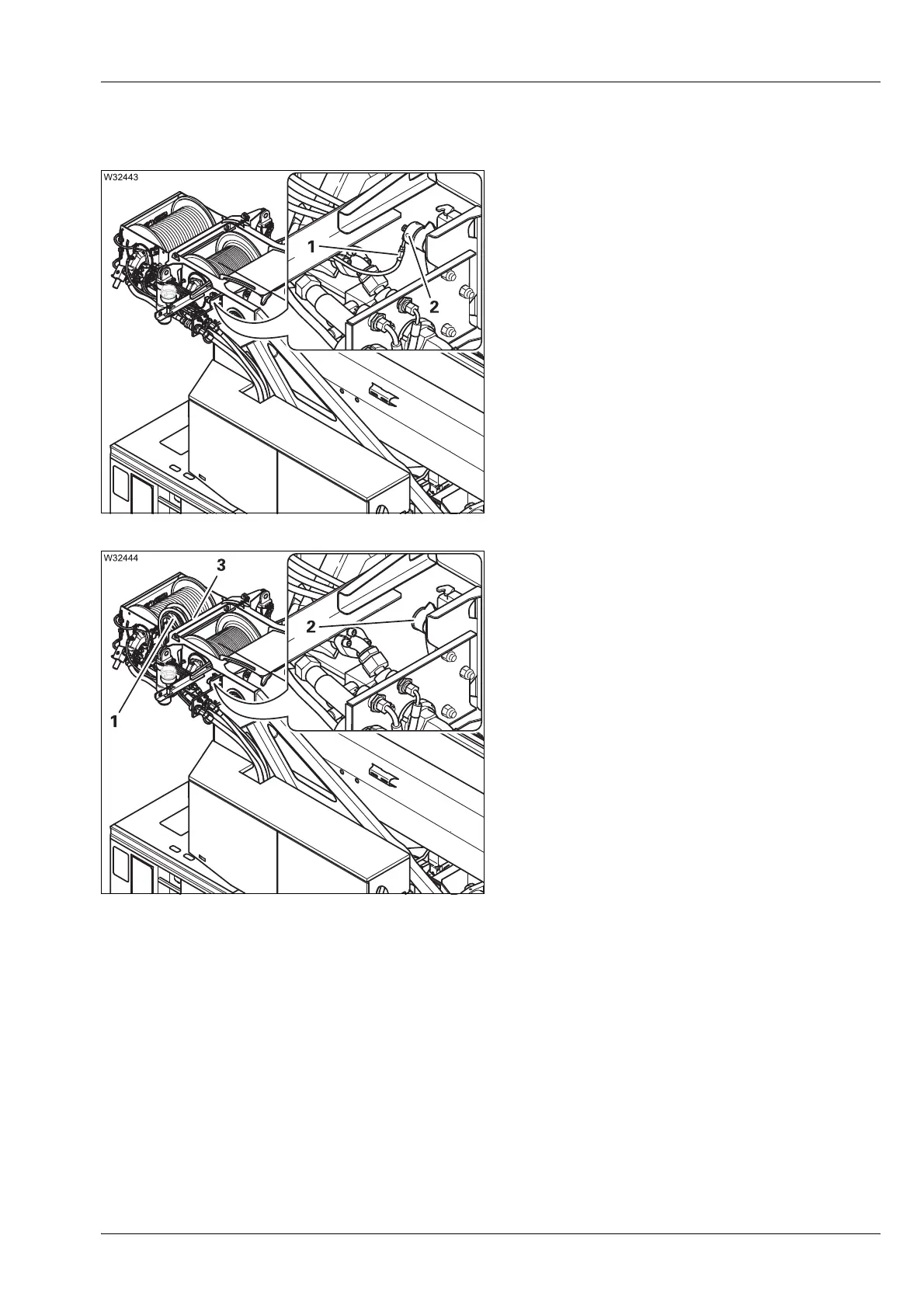

6.4.7 Making/breaking the connection to the central lubrication
Making the connection
• Connect the hose (1) to the connection (2)
Undoing the connection
• Remove the hose (1) from the connec-
tion (2).
• Close off the hose and the connection.
• Insert the hose into the hoist frame (3).
