Operating elements for crane operation
9.1 Overview of the operating elements
9 - 18 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

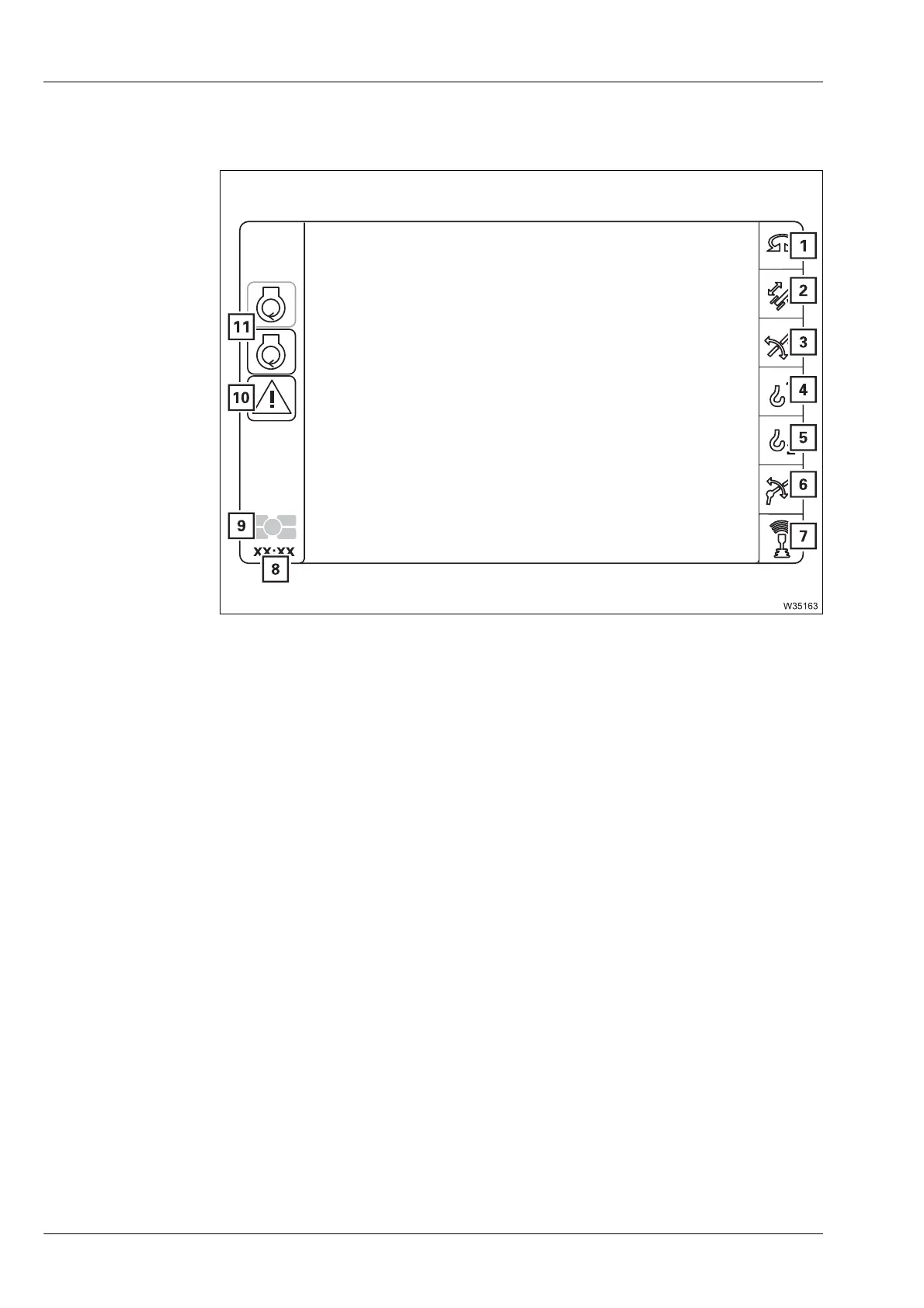

9.1.6 Menu-independent displays
1 Slewing gear à p. 9 - 118
2 Telescoping mechanism
à p. 9 - 122
3 Derricking gear
à p. 9 - 120
4 Main hoist
à p. 9 - 114
5 Auxiliary hoist
1)
à p. 9 - 116
6 Lattice extension derricking gear
1), 2)
7 Remote control display
3)
8 Display time
9 Jog dial display
à p. 9 - 98
10 Error display
à p. 14 - 7
11 Warning messages display
à p. 14 - 3
