9.2.22 Rated capacity limiter (RCL)
CCS display In the Start menu
For the
Standard slewing range type
Only one slewing range is displayed
The displays for working radius, current slew-
ing angle and current position are identical to
the displays for the
MAXbase slewing range
type.
For the
MAXbase slewing range type

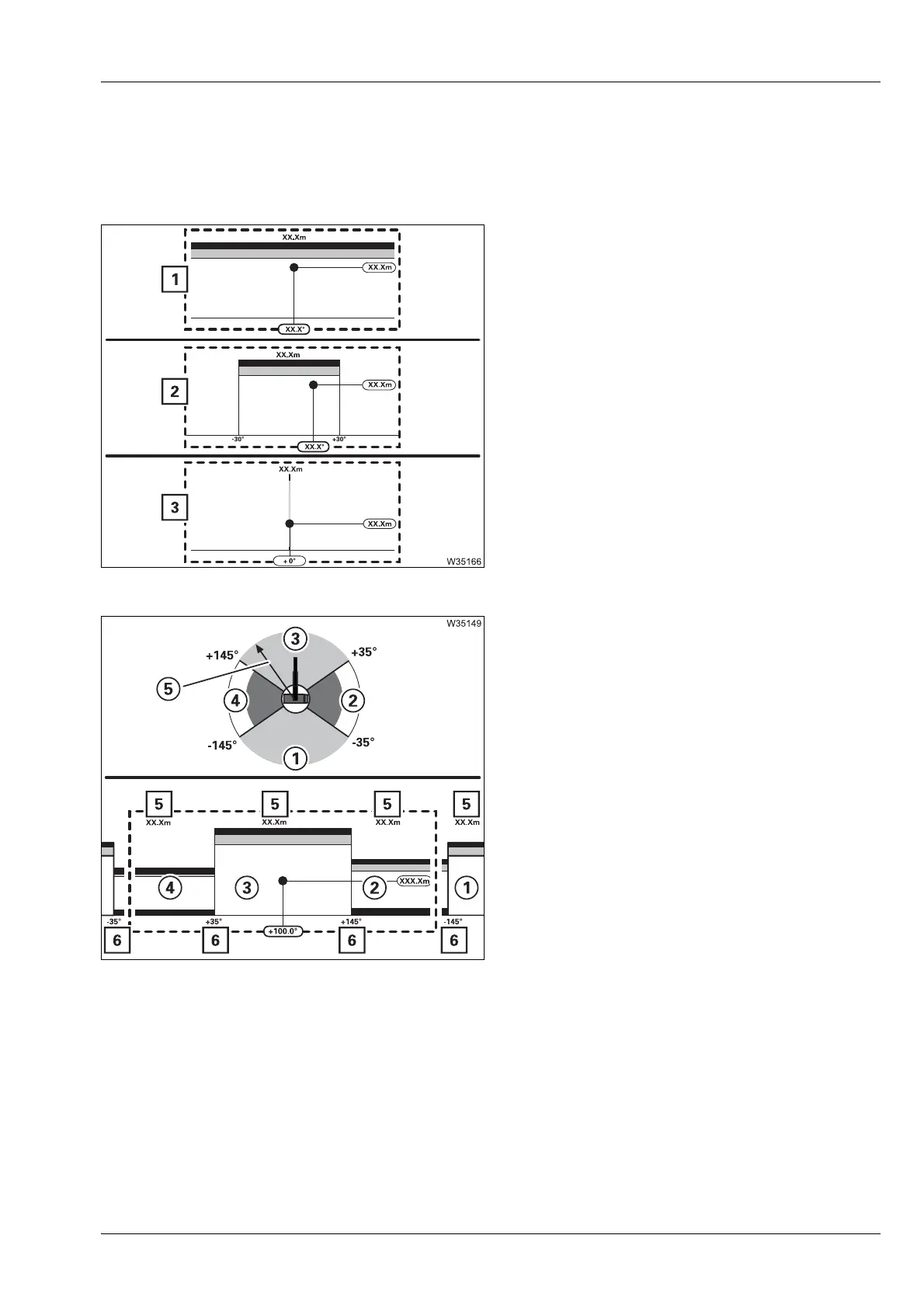

– Display Slewing ranges/working radii
Represents the defined slewing ranges and
corresponding respective maximum per-
missible operating radii
5
for the confirmed
rigging mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing
ranges
1
to
4
as pillars
1
to
4
. The pillar
width represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
s
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Working position, e.g.0°to the rear
