Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 690 en 9 - 83
GMK4100L-1
23.11.2017

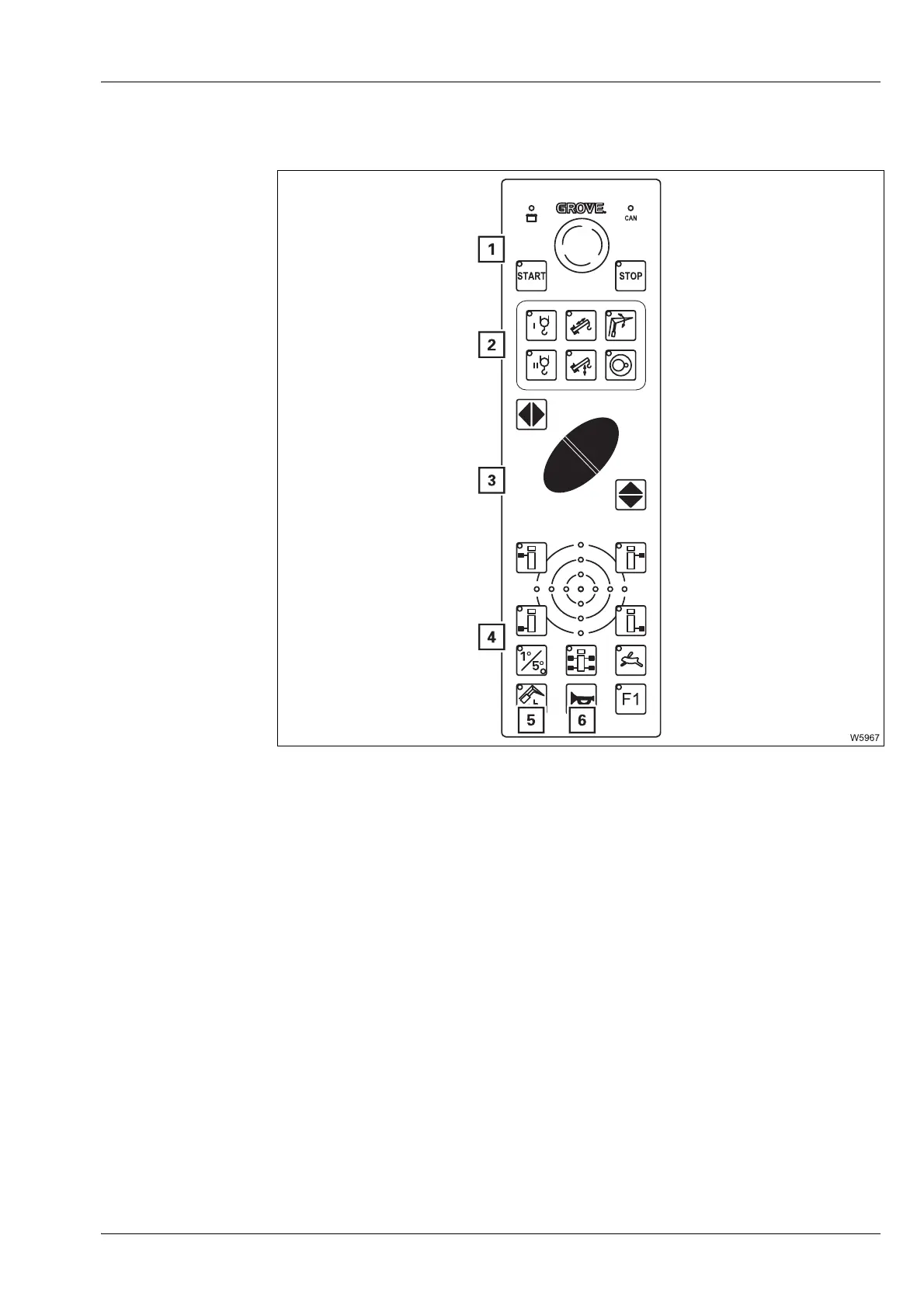

9.1.22 Hand-held control
H
Required connections for the various movements; à p. 9 - 150.
1 Engine control panel
à p. 9 - 151
2 Pre-select emergency operation
1)
à p. 9 - 152
3 Function buttons
à p. 9 - 152
4 no function
5 no function
6 Horn
à p. 9 - 151
1)
Additional equipment
