Operating elements for crane operation
9.2 Short description of the operating elements
9 - 156 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
9.2.27 Diagnostics
The diagnostics connections may only be operated by the service personnel.

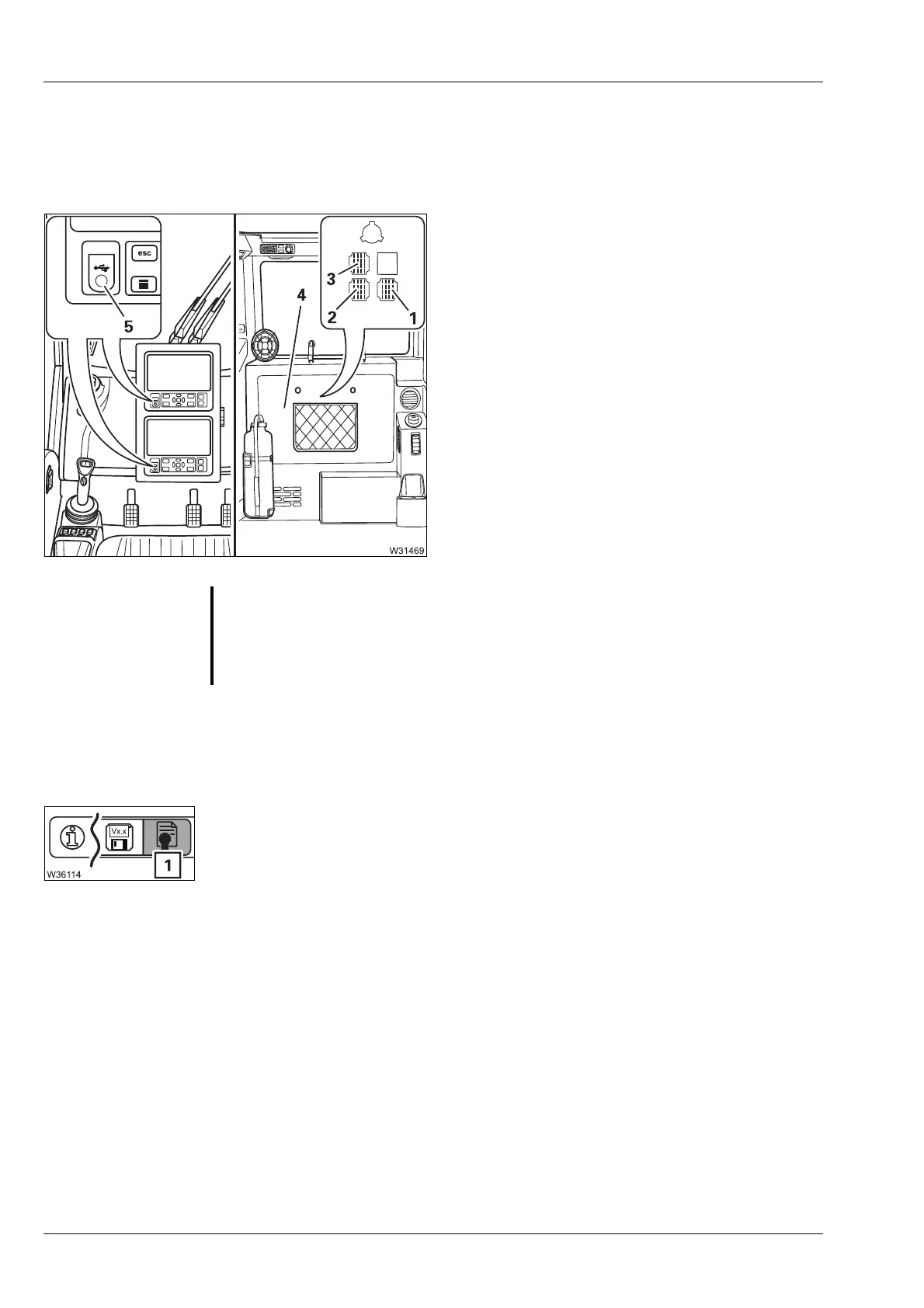

The following connections are below the
cover (4)
.
Additional diagnostic and service connections
are present on the
CCS and RCL control
units (5).
• Do not connect external devices, e.g. a
mobile phone, to these connections!
9.2.28 Other
Disclaimer menu
1
CCS diagnostics –
(serial interface)
2
CCS diagnostics – CAN bus
3
RCL diagnostics
S
Risk of damage to the crane control system!
Do not connect external devices to the diagnostic connections.
This prevents severe malfunctions in the crane control system.
– To open: Select and confirm symbol (1). The warranty waiver text is
shown on the display.
