12.10.6 Possible reevings on the main boom
Possible reevings on lattice extensions and the auxiliary single-sheave
boom top;
à Lattice extension operating manual.
H
The maximum lifting capacity is specified in the supplied lifting capacity table.
With 5 head
sheaves
If 6 head sheaves are provided;
à p. 12 - 117.

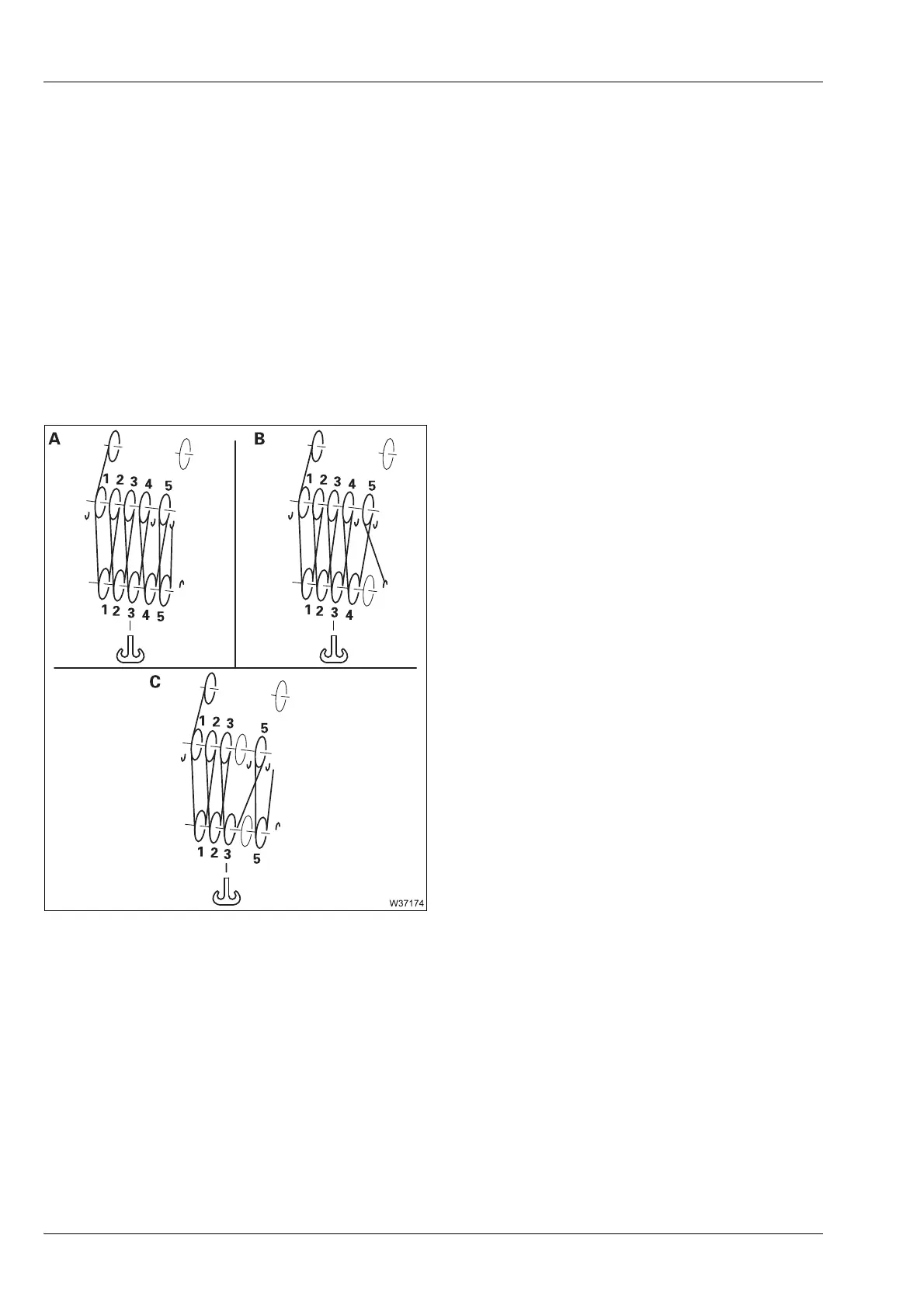

5-sheave hook block
Reeving
A 10-fall
B 9-fall
C 8-fall
