Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 690 en 12 - 113
GMK4100L-1
23.11.2017
Unreeving
hoist rope

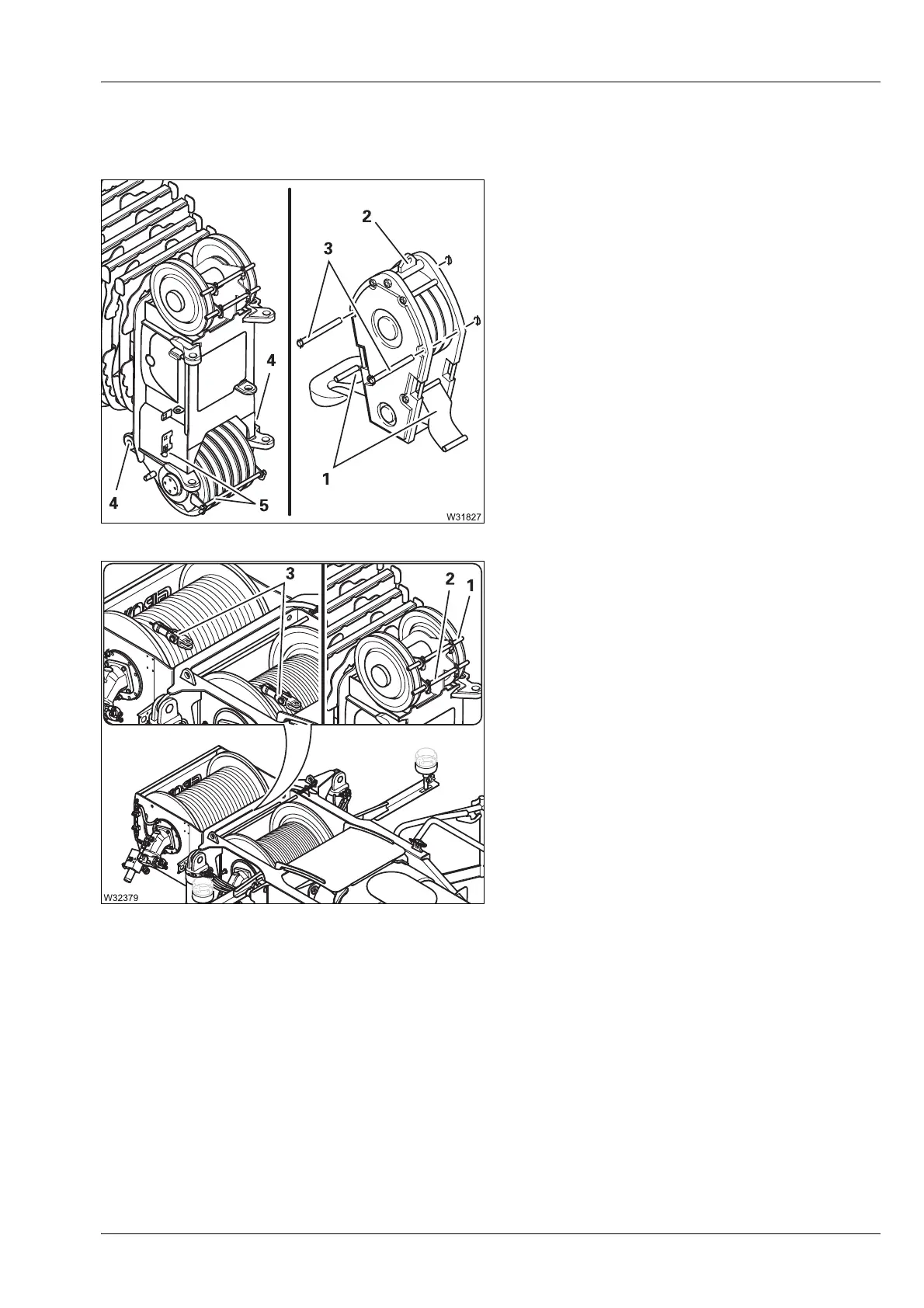

• Pull out the rods (5) and (3).
• Fold down the plates (1).
• Remove the rope end fitting from the fixed
point (2) or (4).
• Unreeve the hoist rope.
• Insert the rods (5) and (3) and secure them.
Depending on the driving mode, you can:
– fasten the hoist rope to the bumper;
à p. 12 - 103 or
– pull out the rods (1), (2) and roll the hoist
rope (3) on to the drum.
• Insert the rods (1), (2) and secure them.
• Secure the hoist rope (3).
