Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
Operating manual 3 302 690 en 9 - 161
GMK4100L-1
23.11.2017
9.3.4 Brakes

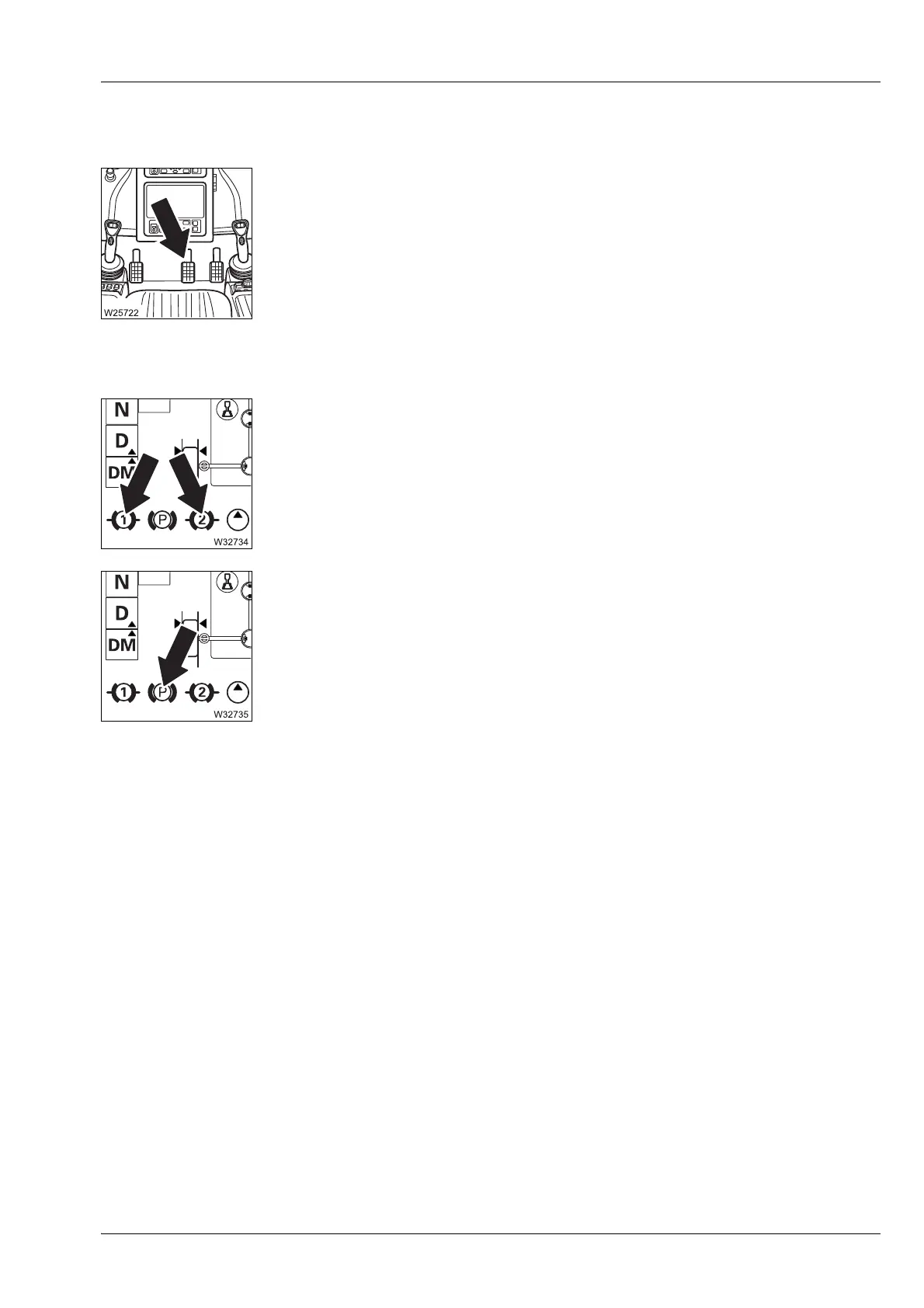

Service brake pedal
Affects the carrier brakes – the braking force can be steplessly adjusted.
CCS display
Supply pressure brake circuits 1 and 2 display
Parking brake indicator lamp
s
–Red: Supply pressure less than approx. 5 bar
– Green: Supply pressure greater than 5.5 bar
–Red: Parking brake applied
– Grey: Parking brake released
