Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 690 en 12 - 73
GMK4100L-1
23.11.2017
12.9.3 Identification
The truck crane and its corresponding counterweight sections are labelled
with the same serial number.

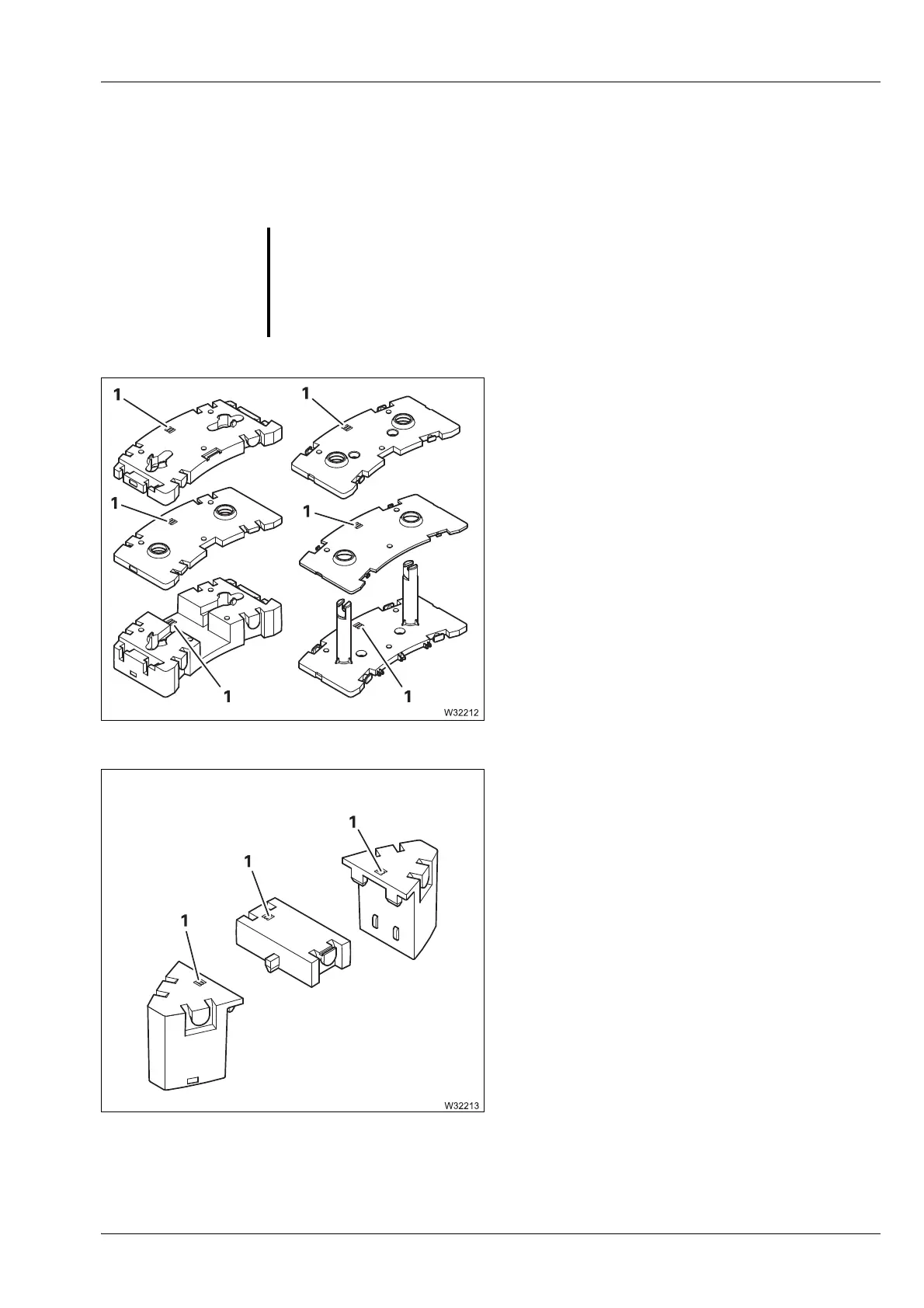

The base plate and the counterweight sections
are labelled with the serial number (1).
Depending on the version, other counter-
weight sections, e.g. blocks, are labelled
with a serial number (1).
S
Danger if counterweight sections are interchanged
Operate the truck crane only with the counterweight sections that belong to
it. The truck crane and counterweight sections are labelled with the same
serial number.
Other or additional counterweight sections may not be rigged.
