Rigging work
12.6 Slewing range – only with the Standard slewing range type
12 - 30 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

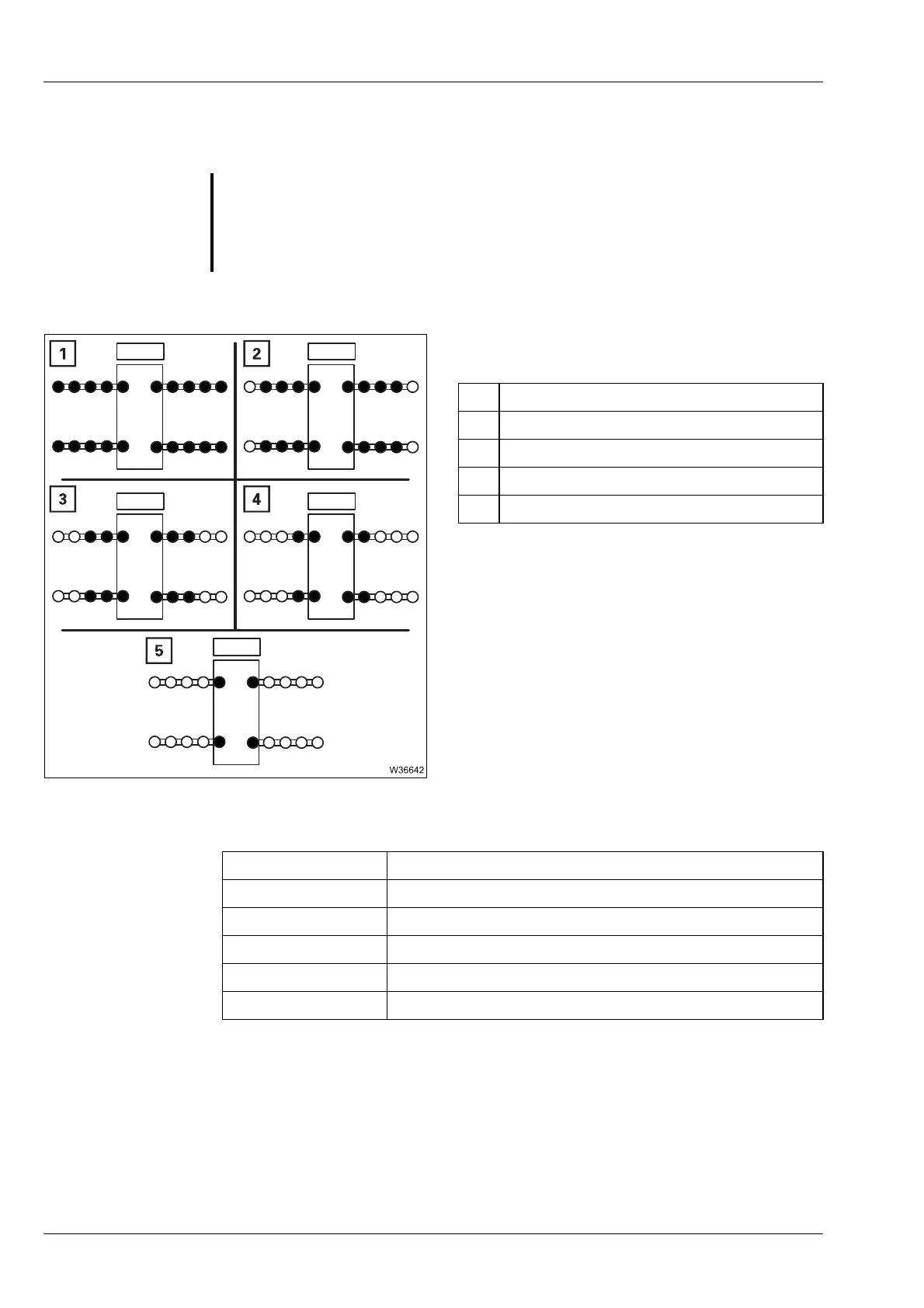

12.6.2 Enabled outrigger spans
The tables show the values for permissible
outrigger spans with overall widths (1) to (5).
In addition, there is a lifting capacity table for
the
Free on wheels working position.
The cover pages of the individual lifting capacity tables provide a brief
overview in per cent.
G
Risk of overturning when slewing the superstructure
With some outrigger spans, slewing is only permissible with certain
counterweight combinations and boom positions;
à Slewing with rigged
counterweight
, p. 12 - 97.
1 7.200 m (23.6 ft)
2 6.250 m (20.5 ft)
3 5.300 m (17.4 ft)
4 3.800 m (12.4 ft)
5 2.340 m (7.6 ft)
Outrigger width Per cent
1 100%
2 80%
3 60%
4 40%
5 0%
