6.4 Rigging the auxiliary hoist
Operating manual 3 302 690 en 6 - 19
GMK4100L-1
23.11.2017

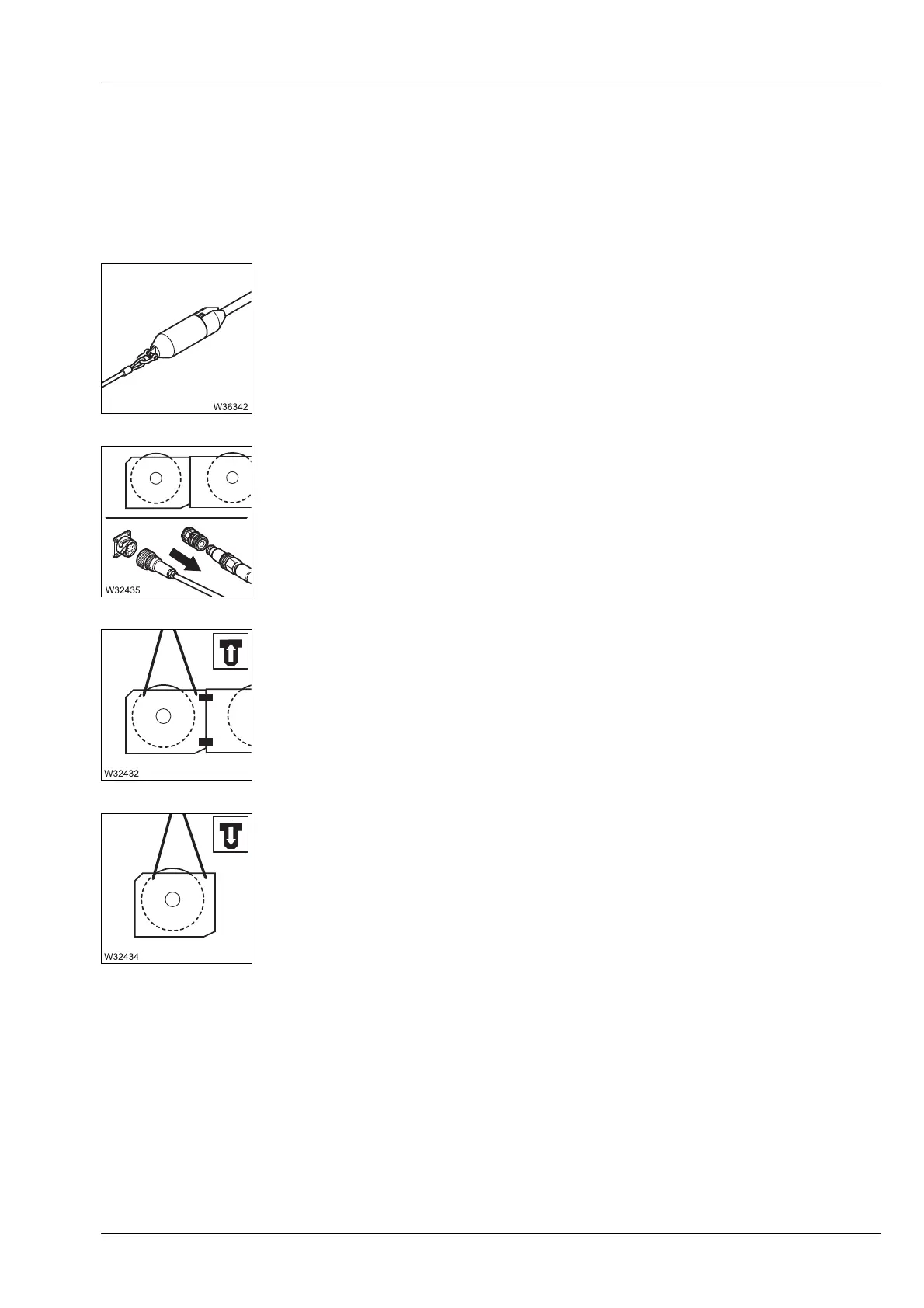

6.4.3 CHECKLIST: Removing the auxiliary hoist
– The main boom must be resting in the boom rest.
– The hoist rope is unreeved.
1. Wind on the auxiliary hoist rope, using the rigging aid if necessary;
à p. 6 - 26.
2. – Disconnecting hydraulic connections;
à p. 6 - 21.
– Disconnecting the electrical connection;
à p. 6 - 22.
– Disconnect the connection to the central lubrication;
à p. 6 - 23
3. – Attach the auxiliary hoist at the centre of gravity;
à p. 6 - 20.
– Disconnect the connection between the auxiliary hoist and turntable;
à p. 6 - 20.
4. Lift the auxiliary hoist onto the separate vehicle and prepare it for trans-
portation;
à p. 6 - 24.
