Rigging work
12.1 Rigging work checklists for crane operation with the main boom
Operating manual 3 302 690 en 12 - 7
GMK4100L-1
23.11.2017

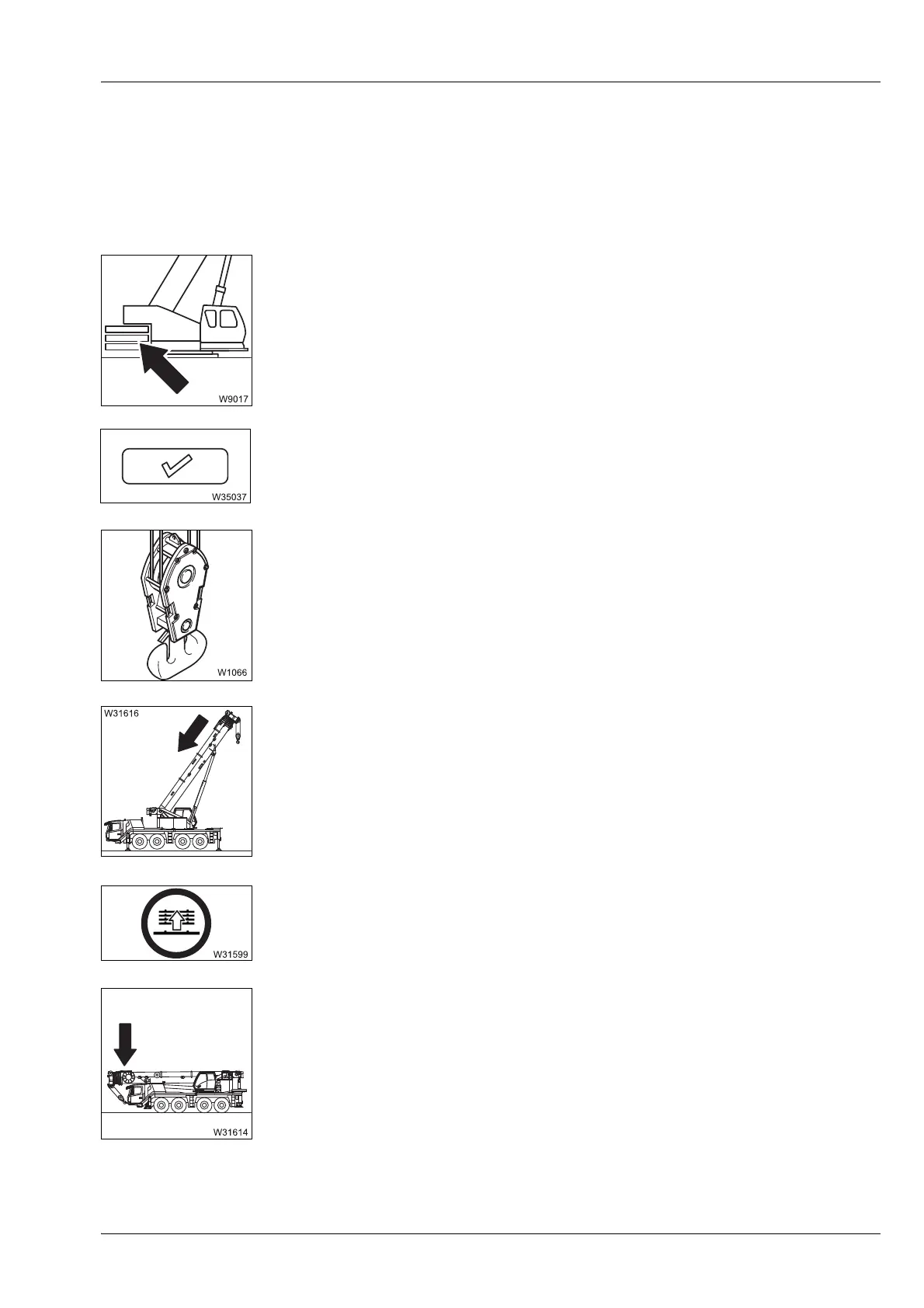

12.1.2 CHECKLIST: Unrigging
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. With the RCL set correspondingly, unrig the counterweight;
à CHECKLIST: Unrigging the counterweight, p. 12 - 78.
2. Enter the current rigging mode with the new rigged counterweight
combination at the RCL display;
à Enter rigging mode, p. 11 - 32.
3. Depending on transport:
– Attach the hook block to the bumper;
à p. 12 - 100 or
– Set down the hook block and unreeve the hoist rope;
à Setting down the hook block, p. 12 - 102
à Unreeving hoist rope, p. 12 - 113
4. Retract the main boom;
à p. 11 - 89.
5. The symbol goes out;
à p. 12 - 69.
6. For on-road driving without dolly:
– Turn the superstructure to the 180° position to the front with the RCL
adjusted accordingly,
– Place the main boom on the boom rest.
