Operating elements for crane operation
9.2 Short description of the operating elements
9 - 146 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
9.2.24 Lighting, windscreen wiper/washing system
Lighting
Air traffic control light on/off
Rotating beacon on/off
Outrigger lighting on/off
Headlight on/off

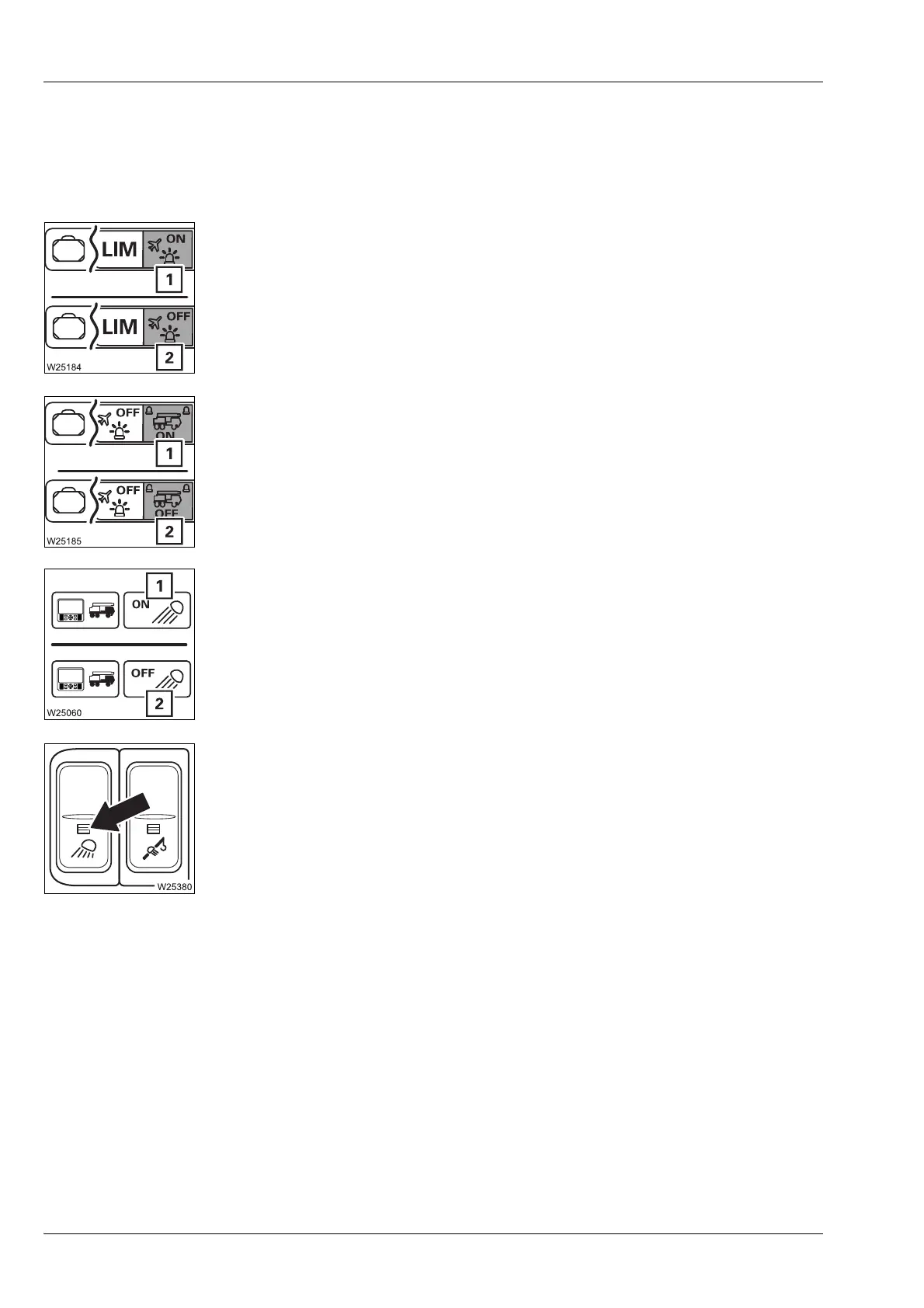

– Switch on: Select symbol (1) and confirm – symbol
ON is displayed
– Switch off: Select symbol (2) and confirm – symbol
OFF is displayed
à p. 12 - 127
– Switch on: Select symbol (1) and confirm – symbol
ON is displayed
– Switch off: Select symbol (2) and confirm – symbol
OFF is displayed
– Switch on: Select symbol (1) and confirm – symbol
ON is displayed
– Switch off: Select symbol (2) and confirm – symbol
OFF is displayed
à p. 12 - 43
– Switch on: Push down – lamp in the button on
– Switch off: Push up – lamp in the button off
