Manitowoc Grove GMK4100L-1 User Manual

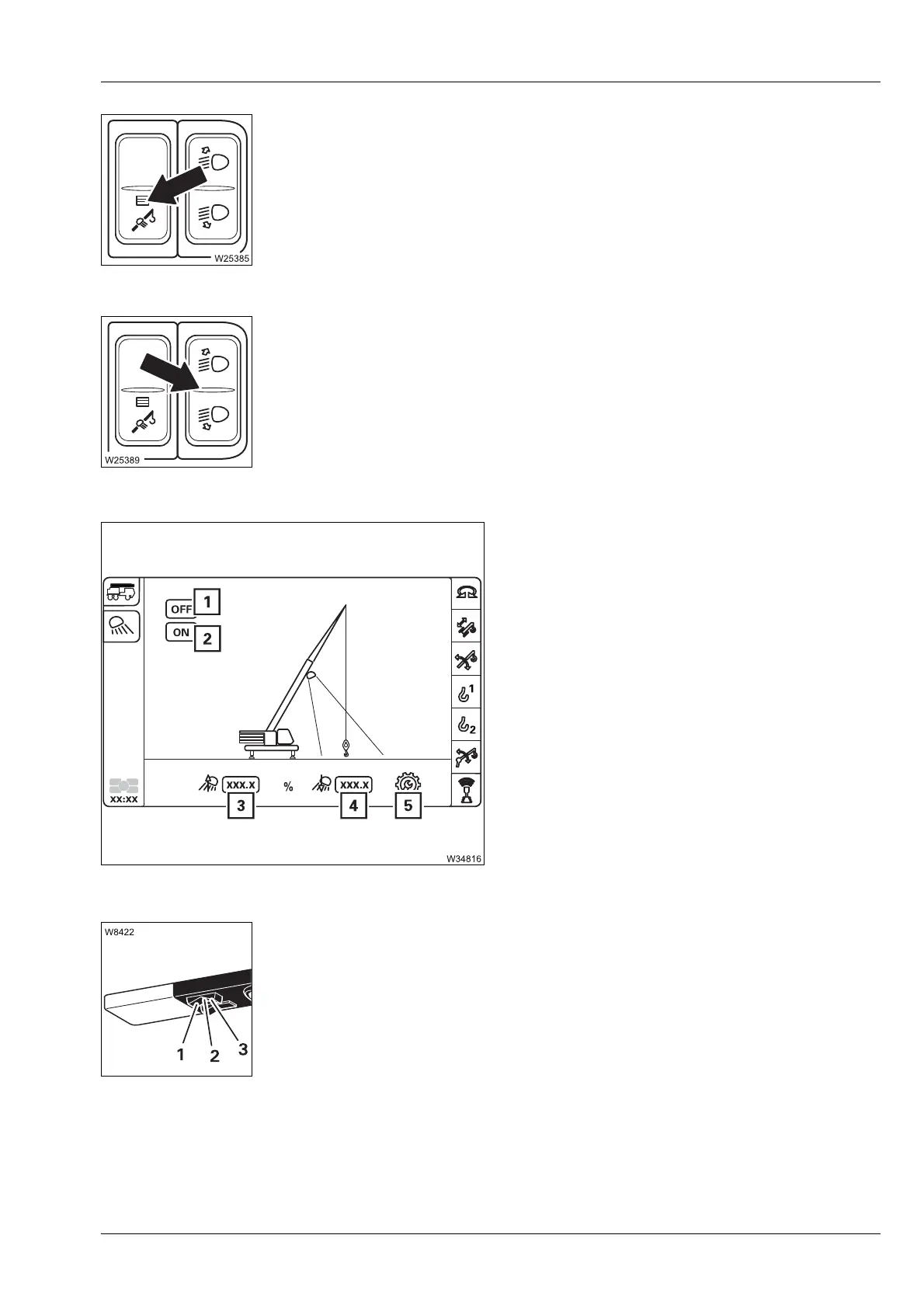

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 690 en 9 - 147
GMK4100L-1
23.11.2017
Slewable spotlights on/off
Slew slewable spotlight
Automatic spotlights
The spotlights are switched on.
Cab lighting
s
– Switch on: Push down – lamp in the button on
– Switch off: Push up – lamp in the button off
à p. 11 - 130
–Down: Push down
–Up: Push up
à p. 11 - 130
1 Switch on – symbol (2) display
2 Switch off – symbol (1) display
3 Increase the slewing speed
4 Reduce the slewing speed
5 Submenu
speed, opening/closing
à p. 11 - 130
1 Always on
2 Always off
3 On/off via door contact
