Driving
5.4 Off-road driving
5 - 50 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
5.4.1 Transfer case – switching the off-road gear on/off
The off-road gear increases the thrust of the driven wheels.
Prerequisites
• Stop the truck crane.
• Select neutral on the transmission.
• Open the main menu, if necessary.
After switching on, the speed is limited to approx. 20 km/h (12 mph).

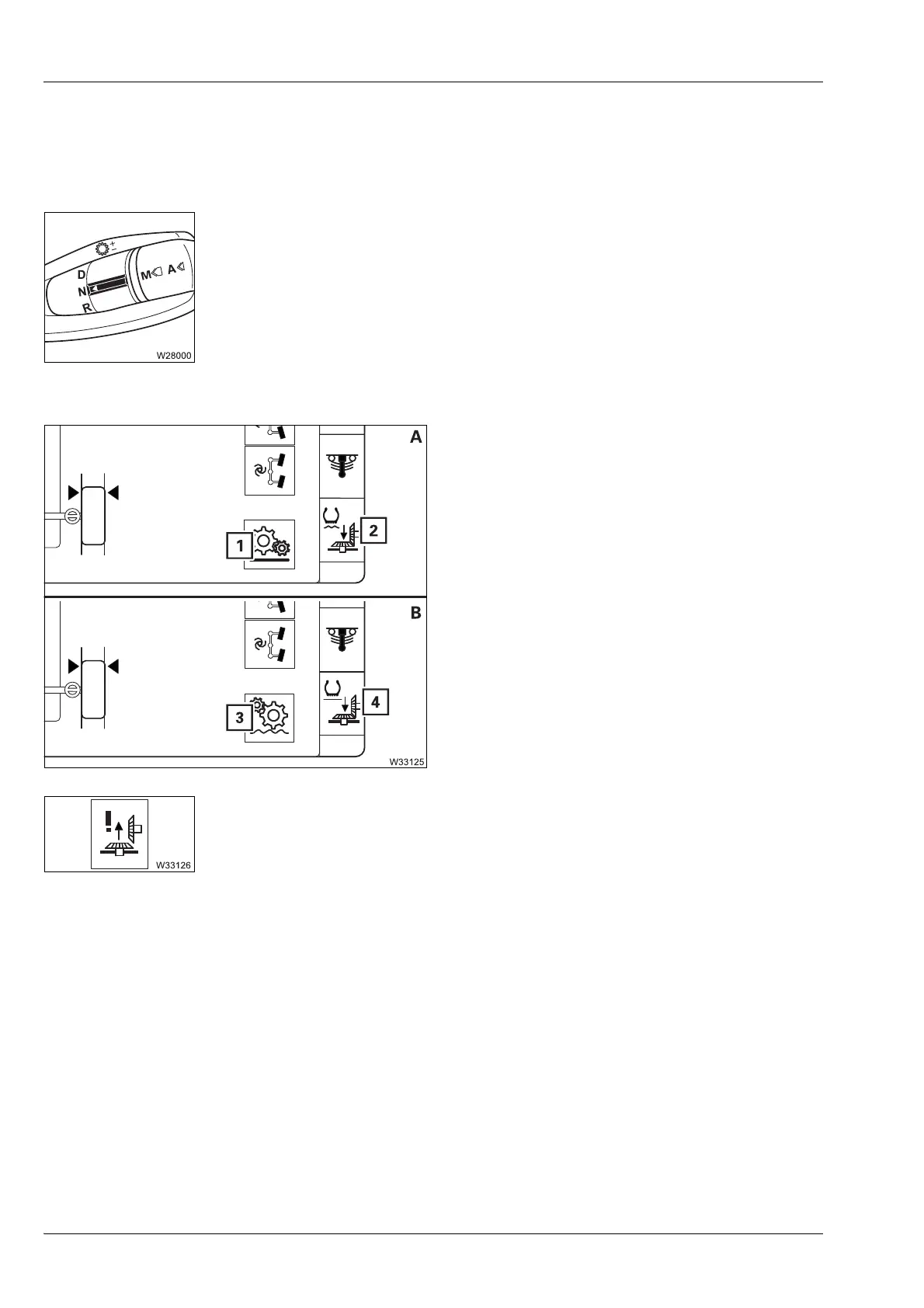

(A) – Switching on
• Select symbol (1) and confirm it – symbol (2)
is displayed, off-road gear engaged.
(B) – Switching off
• Select symbol (3) and confirm it – symbol (4)
is displayed, off-road gear is disengaged.
If neither the symbol (2) nor (4) is shown,
select a starting gear on the transmission and
shift back into neutral, or start up slowly.
If the error symbol is displayed, contact
Manitowoc Crane Care.
Neutral position For towing away, you can also switch the transfer case to the neutral
position;
à p. 8 - 29.
