Driving modes
6.4 Rigging the auxiliary hoist
6 - 22 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

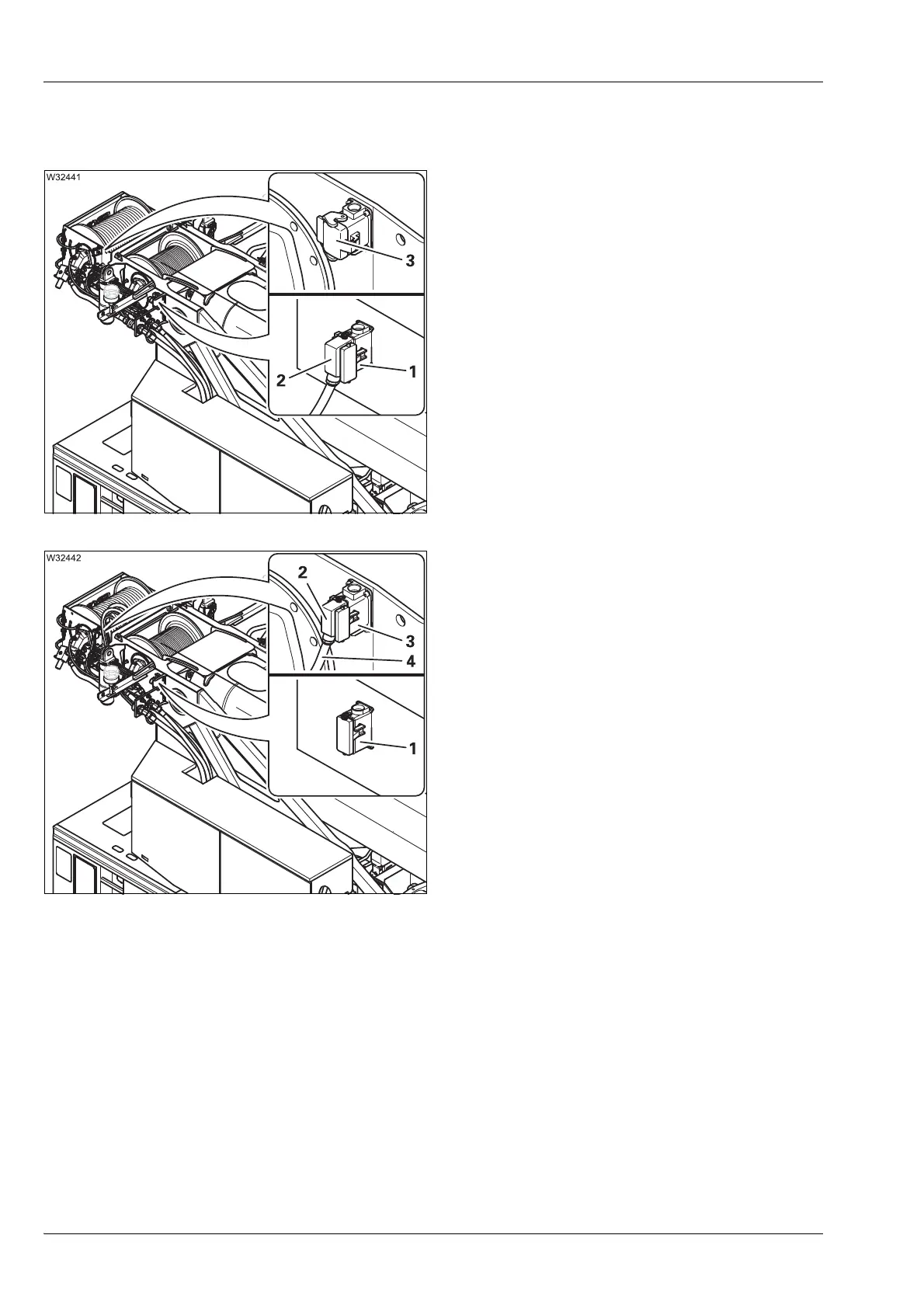

6.4.6 Disconnecting/establishing the electrical connection
Making the connection
• Remove the plug (2) from the dummy
socket (3) and plug it into the socket (1).
• Close the dummy socket (3).
Undoing the connection
• Remove the plug (2) from the dummy
socket (1) and plug it into the socket (3).
• Close the socket (1).
• Lay the cable (4) in such a way that it is not
left hanging during removal.
