7.2 Transport by ship
7 - 6 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
7.2 Transport by ship

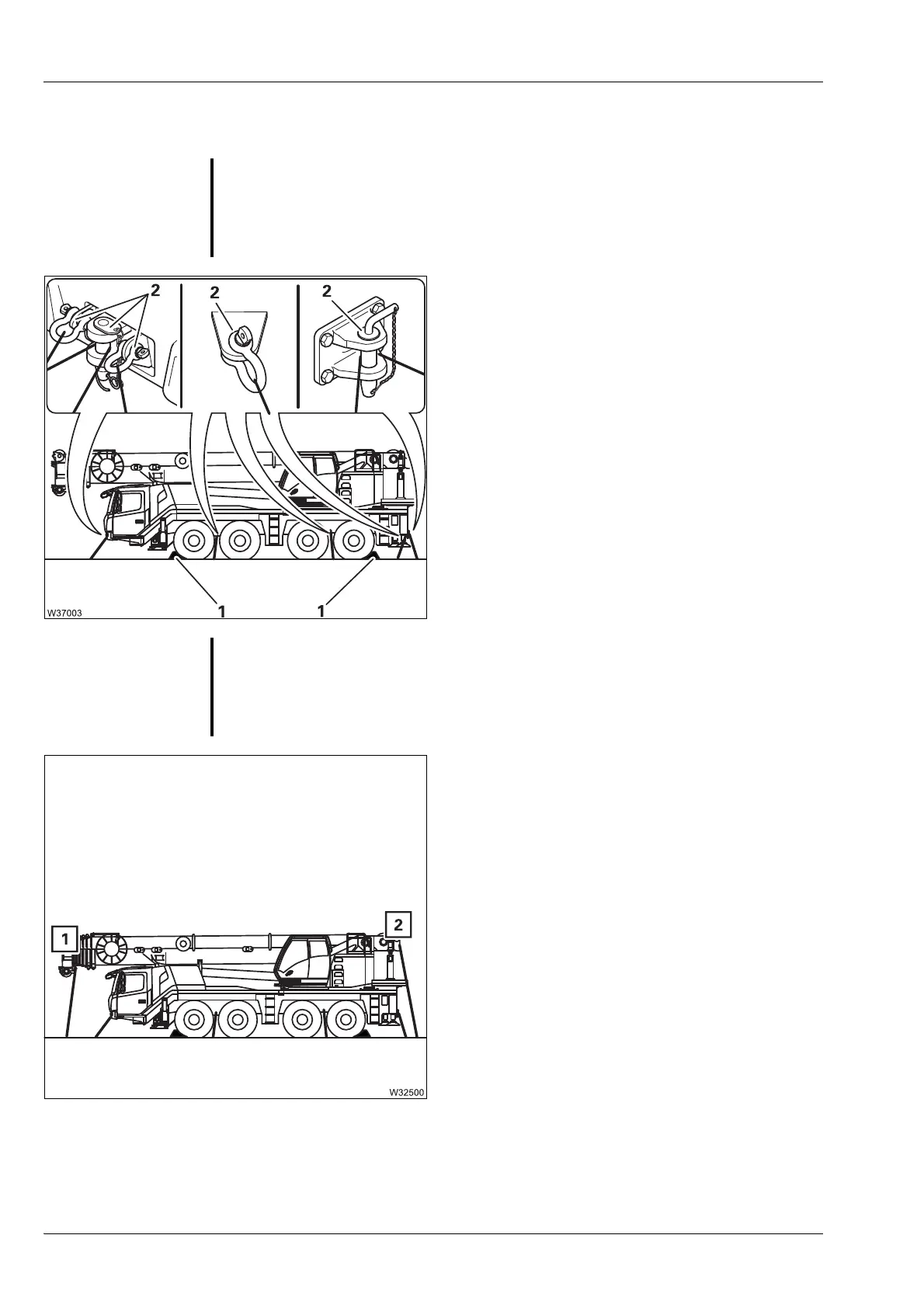

• Secure the truck crane with the chocks (1).
• Fasten the lifting gear to the slinging
points (2) on both sides. Ensure that no
attachments, cables or hoses are damaged
in this process.
• If necessary, use additional points as
slinging points.
Under no circumstances exceed the set
values.
G
Risk of accidents due to falling parts
Use only suitable lifting gear with sufficient load bearing capacity and use
only the slinging points provided.
S
Risk of damage to the auxiliary hoist and main boom
When lashing the truck crane, under no circumstances exceed the set val-
ues. This will avoid damage to the auxiliary hoist and main boom.
max. tensioning
force
1 Main boom head: 5 t (11,000 lbs)
2 Main hoist: 5 t (11,000 lbs)
