Driving modes
6.5 Installing/removing the outrigger beams
6 - 32 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

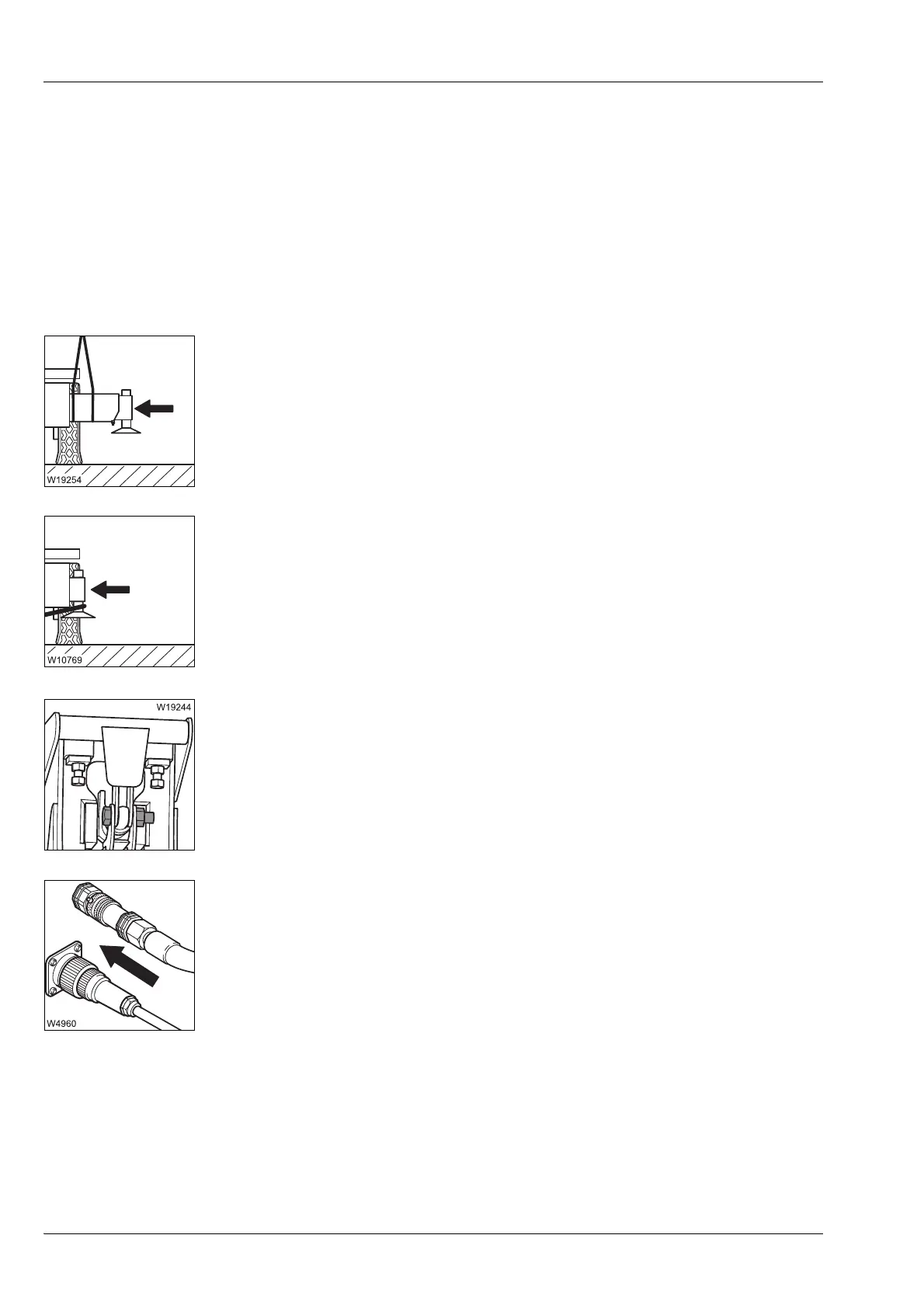

6.5.2 CHECKLIST: Installing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
operating instructions which are indicated by cross-references.
Observe the warnings and safety instructions specified here!
1. Preparing the truck crane;
à p. 6 - 35.
2. – Remove the connection elements from the outrigger box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the
lifting gear.
à Inserting the outrigger beam, p. 6 - 44
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
à p. 6 - 44.
4. Establish the connection to the support box;
à p. 6 - 42.
5. – Establishing hydraulic connections;
à p. 6 - 38.
– Establishing the electrical connection if necessary;
à p. 6 - 39.
