Rigging work
12.9 Rigging/unrigging the counterweight
12 - 92 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
12.9.9 Setting down counterweight for driving

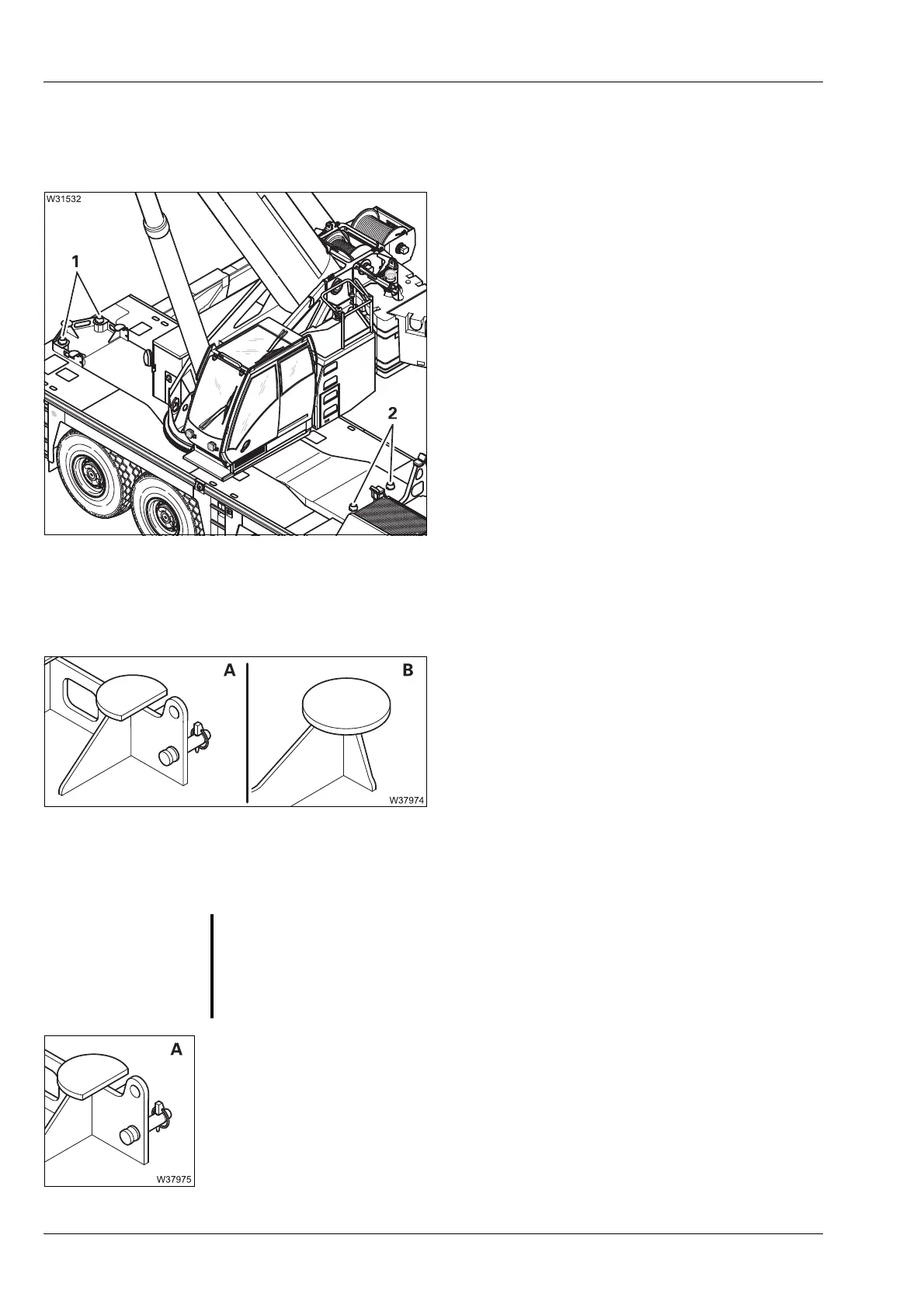

The list of counterweight sections that can be
carried on the
rear counterweight platform (1)
and on the
front counterweight platform (2)
whilst driving depends on the driving mode of
the truck crane;
à Driving modes, p. 6 - 1.
Rear counter-
weight platform
The Rear counterweight platform is available in two versions.
– Version (A) – with lock
– Version (B) – without lock
For driving with axle loads up to 10 t or dolly operation
No counterweight sections must be placed on the
rear counterweight
platform.
For version (A)
• Lock the pins on the counterweight platform; à p. 12 - 95.
S
Risk of damage during dolly operation!
Before you start driving in dolly mode, make sure that no counterweight is
placed on the
rear counterweight platform.
This avoids the rotating superstructure colliding with the counterweight,
and causing sections to be damaged or to fall off.
