Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 690 en 12 - 93
GMK4100L-1
23.11.2017
For driving with axle loads up to 12 t
Only the 2.7 t base plate may be set down directly on the
rear counterweight
platform.
• Place the 2.7 t base plate on to the counter-
weight platform;
à p. 12 - 81.
• For version (A) – Lock the counterweight
platform;
à p. 12 - 96.

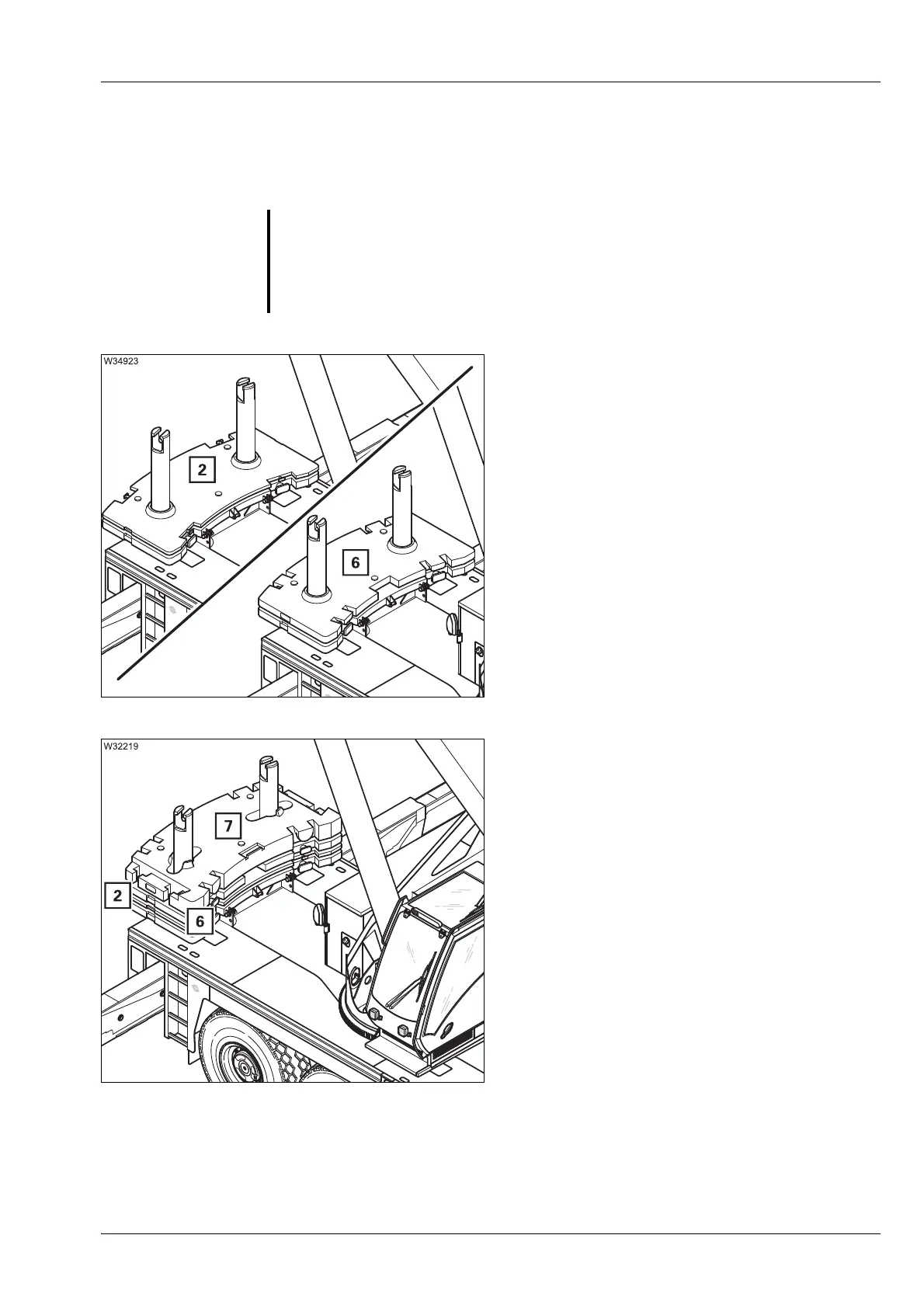

For 3.7 t (8,160 lbs)
• Set the 1.0 t section (2) down on the 2.7 t
base plate.
For 4.9 t (10,800 lbs)
• Set the 2.2 t section (6) down on the 2.7 t
base plate.
For driving with axle loads greater than 12 t
• Place the 2.7 t base plate on to the counter-
weight platform;
à p. 12 - 81.
• For version (A) – Lock the counterweight
platform;
à p. 12 - 96.
Depending on the driving mode, you can also
place
– the 1.0 t plate (2),
– the 2.2 t plate (6),
–and
– the 4.0 t plate (7),
on to the 2.7 t base plate.
s
G
Risk of accidents due to the counterweight slipping or tipping over!
Place only the 2.7 t base plate directly on to the
rear counterweight platform
and lock it.
By this means you will avoid the counterweight slipping or falling down,
causing serious accidents.
