Rigging work
12.9 Rigging/unrigging the counterweight
12 - 94 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
Front counter-
weight platform
For driving with axle loads greater than 12 t
Depending on the driving mode, in addition to the counterweight on the
rear
counterweight platform, the 2.1 t plate and the 7.1 t plate can be placed on
the
front counterweight platform.

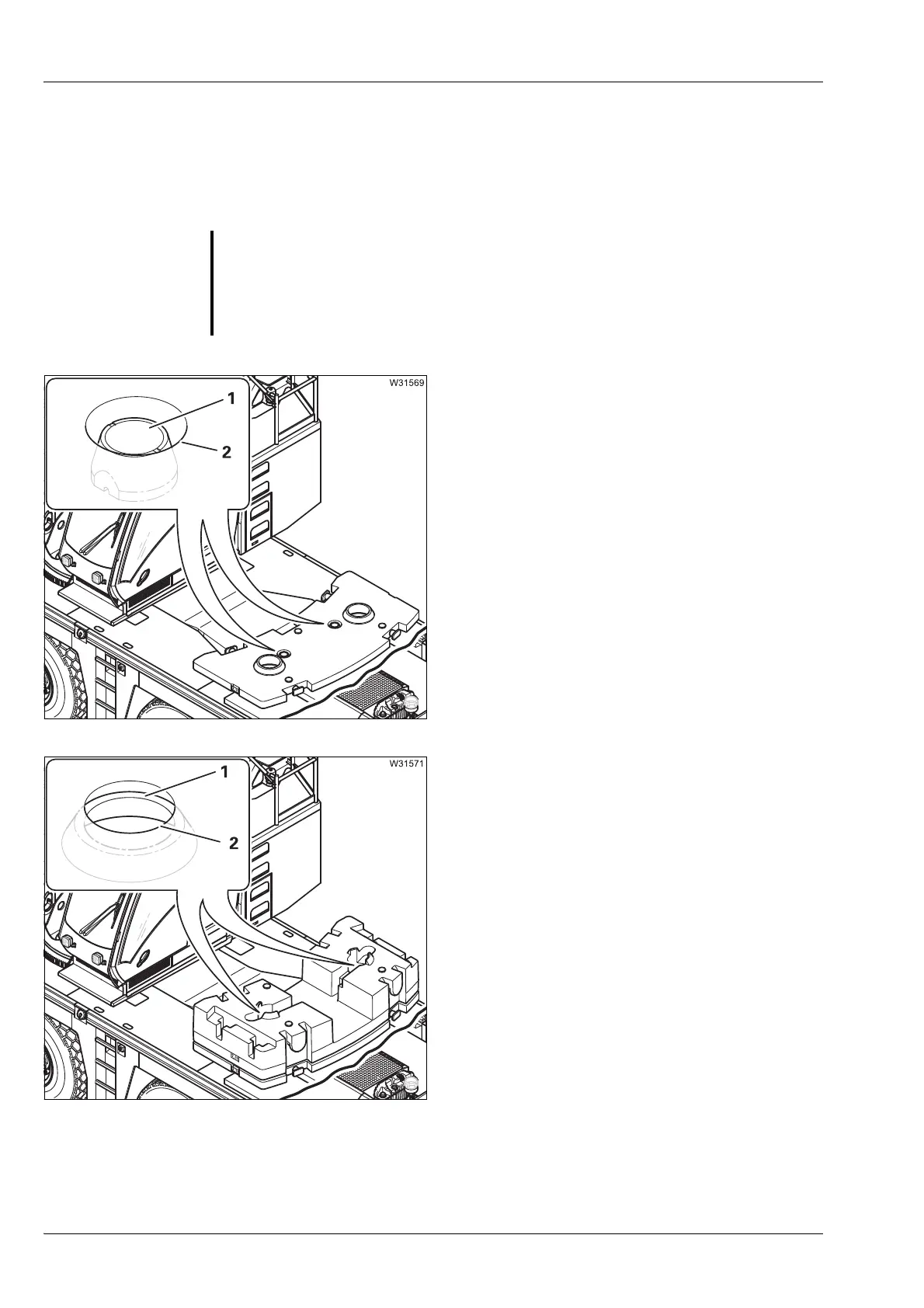

• Position the 2.1 t plate in such a way that the
holders (1) grip into the recesses (2).
• Position the 7.1 t plate in such a way that the
holders (1) grip into the recesses (2).
S
Risk of damage to the derricking cylinder!
Set down only the 7.1 t plate on the 2.1 t plate.
In this way you can prevent the derricking cylinder being pushed against an
incorrectly assembled counterweight combination and becoming damaged
when the main boom is being set down.
