Operating elements for crane operation
9.2 Short description of the operating elements
9 - 114 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

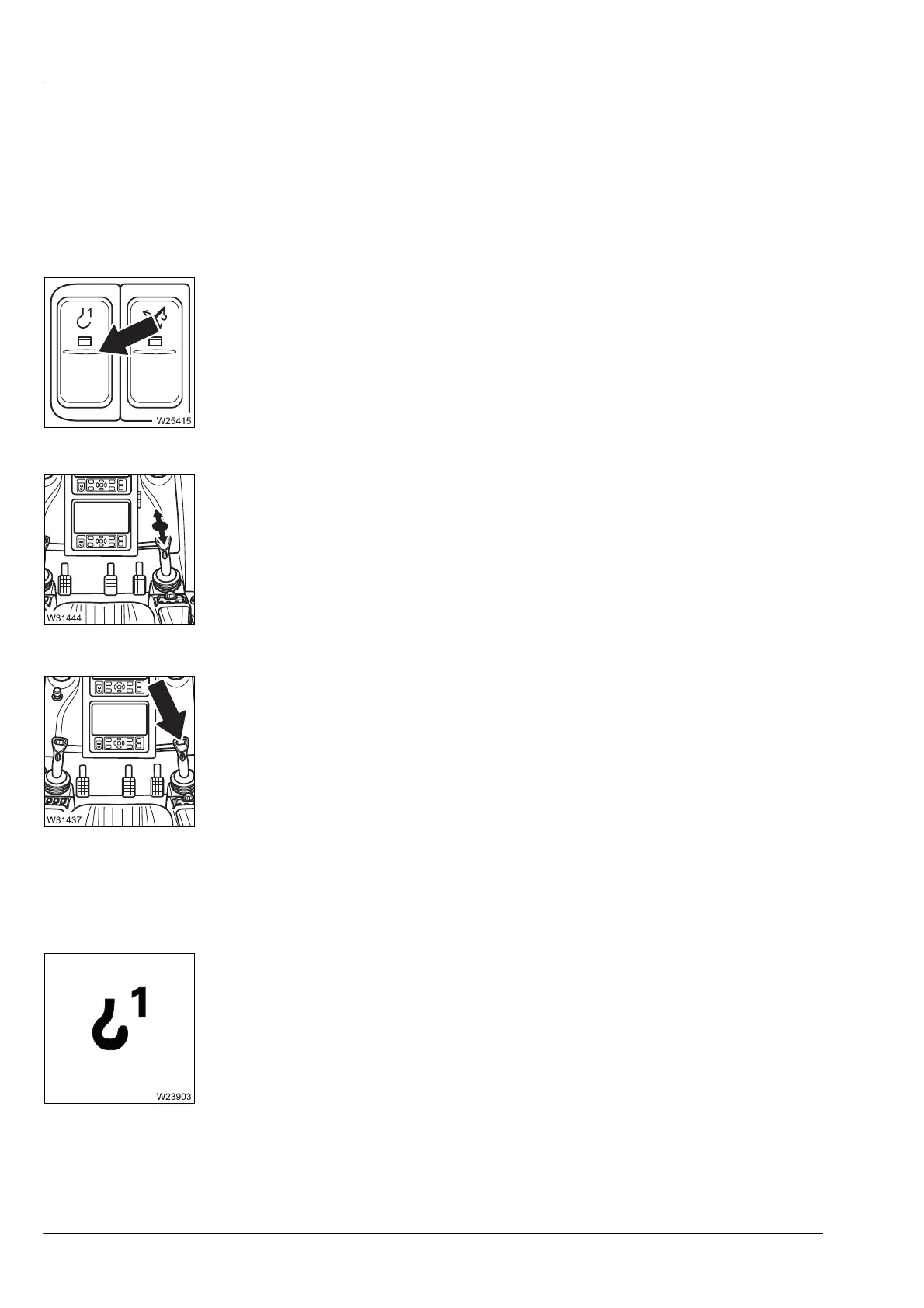

9.2.14 Main hoist
à Main hoist, p. 11 - 75.
Control panels
Main hoist on/off
There is a lamp in the button.
Right control lever
Hoist high-speed mode on/off
The parking brake is engaged.
CCS display
Power units display
– Press once: – Lamp bright – main hoist on
– Lamp dim – main hoist off
à p. 11 - 76
– Back: Lifting
–Forward: Lowering
à p. 11 - 76
–Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to the right or
once to the left:
High-speed mode off
à p. 11 - 113
–Green: Main hoist on
–Red: Main hoist off
