Crane operation
11.1 Before operating the crane
Operating manual 3 302 690 en 11 - 13
GMK4100L-1
23.11.2017
11.1.5 Earthing the load
Even if the truck crane is already earthed (Ã p. 12 - 15), the load may
become charged with static electricity. For example, if a hook block with
synthetic sheaves or non-conducting sling gear is used.
Use electrically conducting material for
earthing.

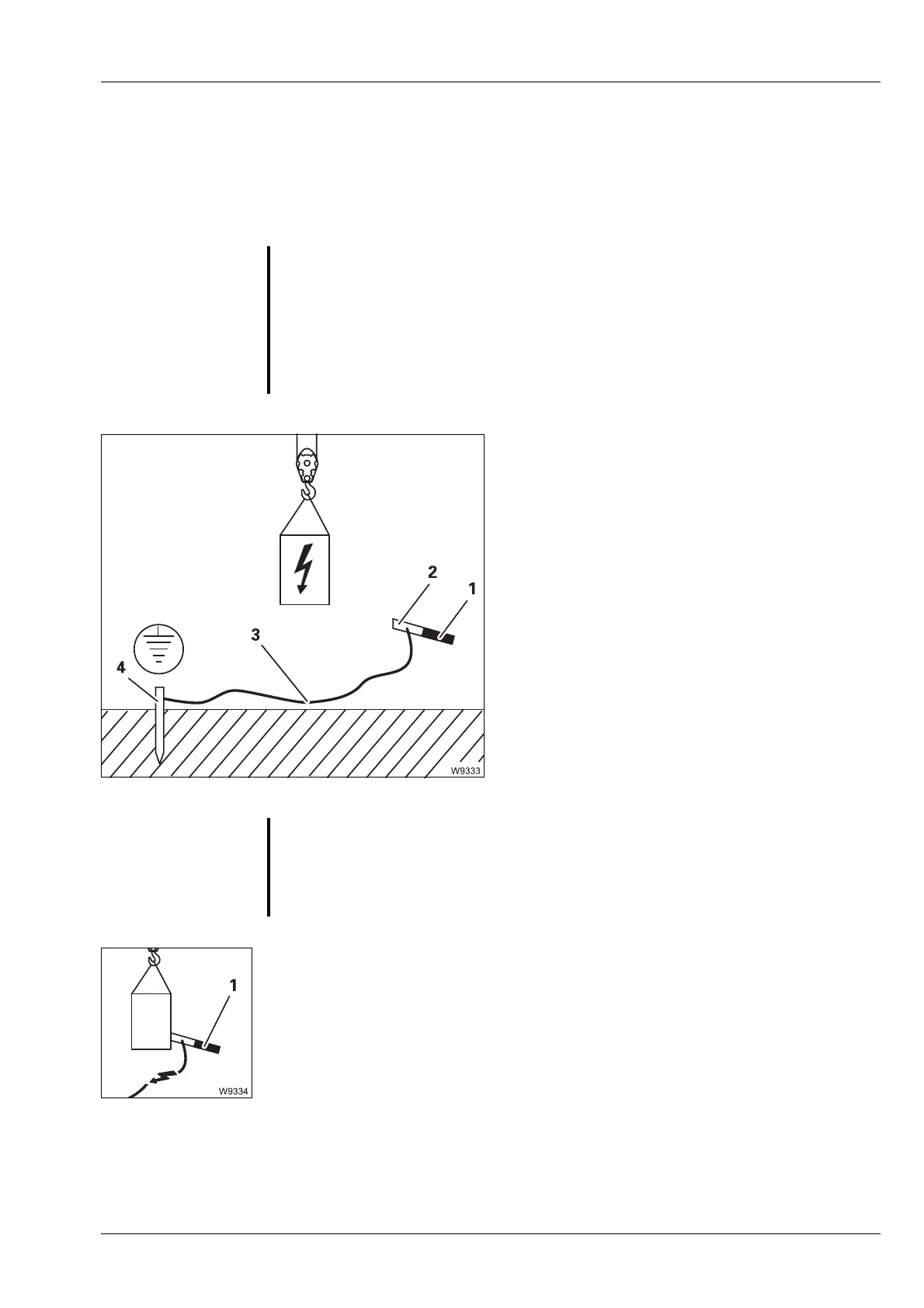

• Hammer a metal rod (4) (length of about
2.0 m (6.6 ft)) at least 1.5 m (5 ft) into the
ground.
• For better conductivity, dampen the soil
around the metal rod (4).
• Clamp an insulated cable (3) to the metal
rod (4) (cross-section of at least 16 mm
2
[0.025 in
2
])
• Clamp the other end of the cable (3) to a
metal rod (2) with an insulated handle (1).
• Hold the metal rod firmly by its insulated handle (1).
• To earth, touch the load with the metal rod.
B
Risk of accident due to electric shock
Always earth the load before operating the crane
– Near strong transmitters (radio transmitters, radio stations, etc.),
– Near high-frequency switchgears
– If a thunder storm is forecast.
If the load is charged with static electricity, you must always earth the load
before touching it.
B
Risk of accident due to electric shock
Ensure that the connections between the cable and the metal rods are elec-
trically conductive. When earthing, hold the metal rod only by the insulated
handle and keep a sufficient distance to the metal rod in the ground.
