Operating elements for crane operation
9.1 Overview of the operating elements
9 - 12 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

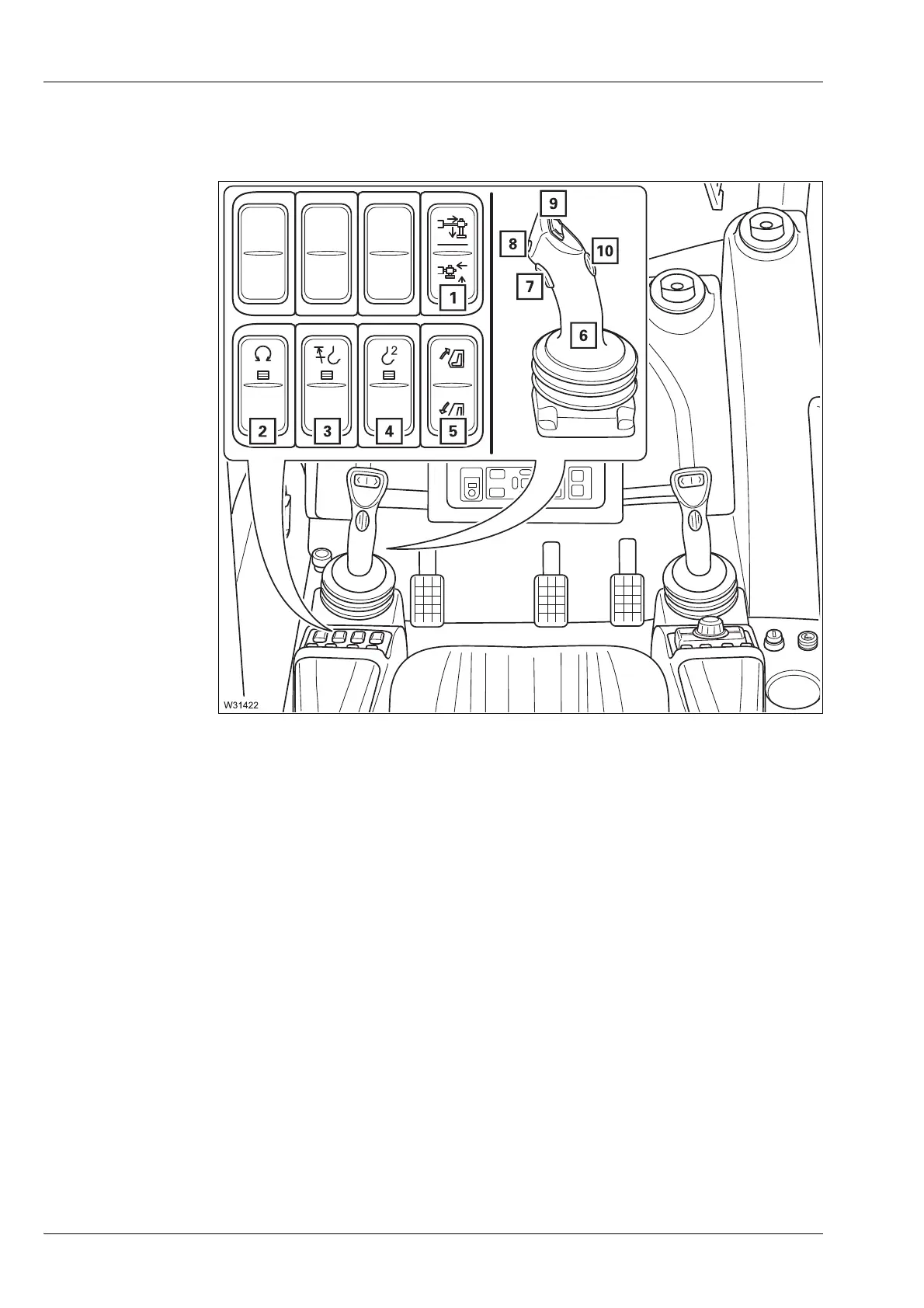

9.1.3 Control panels
Left
1 Moving the outrigger à p. 9 - 102
2 Slewing gear on/off
à p. 9 - 118
3 Lifting limit switch override
à p. 9 - 115
4 Auxiliary hoist
1)
on/off à p. 11 - 79
5 Inclining the crane cab
à p. 9 - 128
6 Left-hand control lever (configuration varies
depending on the version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 94
8 Slewing gear freewheel
à p. 9 - 118
9 Depending on which function is switched on, button
for:
– Derricking gear high-speed mode
– Telescoping mechanism high-speed mode
– Economy Mode step 3 switch on
1)
à p. 9 - 121
à p. 9 - 123
à p. 9 - 92
10 Auxiliary hoist slewing indicator
à p. 11 - 80
1)
Additional equipment
