Manitowoc Grove GMK4100L-1

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 690 en 9 - 13
GMK4100L-1
23.11.2017
Right

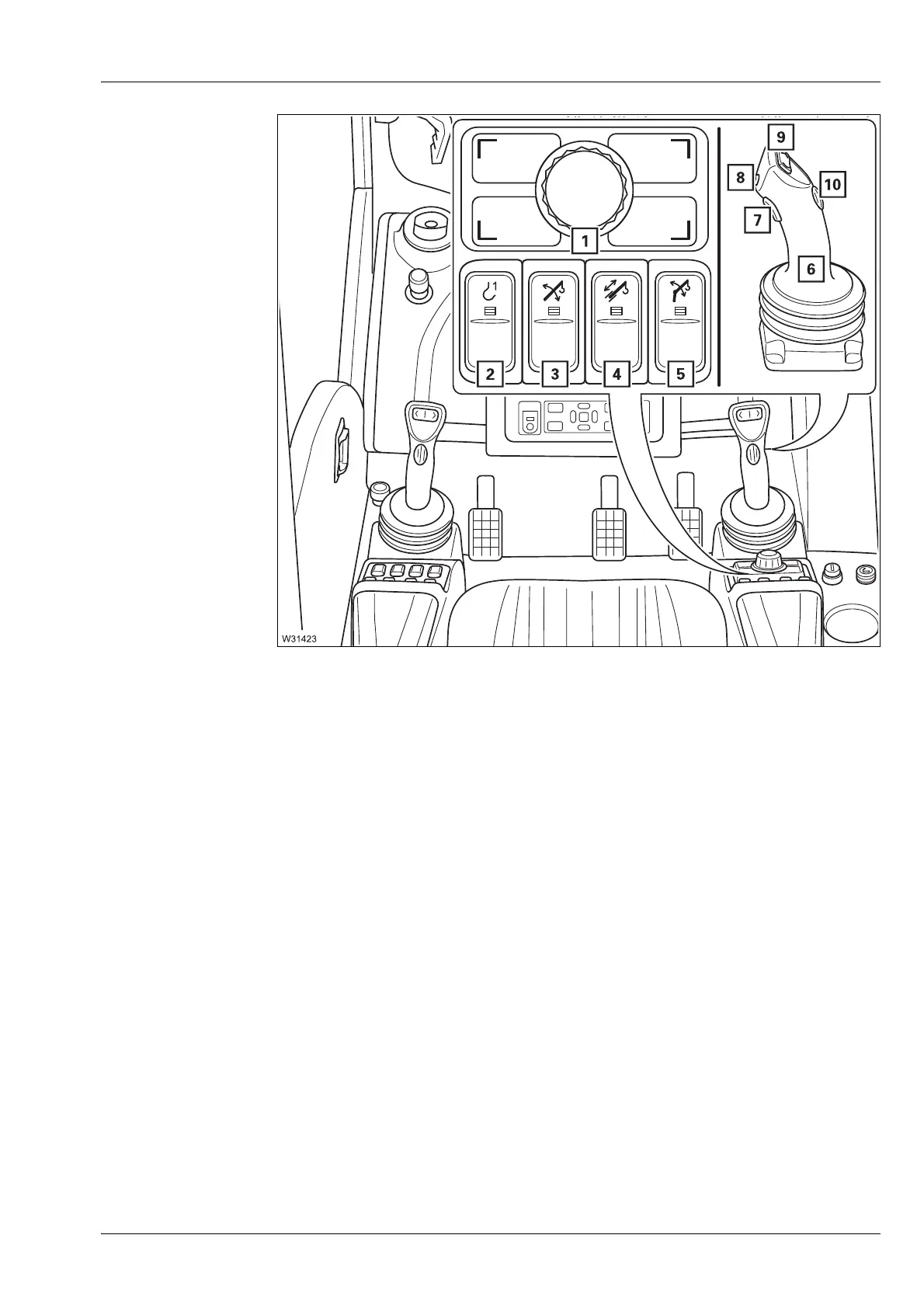

1 Jog dial (rotary push button)
à p. 9 - 95
2 Main hoist on/off
à p. 9 - 114
3 Derricking gear on/off
à p. 9 - 120
4 Telescoping mechanism on/off
à p. 9 - 122
5 Lattice extension derricking gear
1), 2)
6 Right-hand control lever (configuration depends on
version)
à p. 9 - 14
7 Dead man's switch
à p. 9 - 94
8 Horn
à p. 9 - 149
9 Hoist high-speed mode on/off
à p. 9 - 114
10 Main hoist slewing indicator
à p. 11 - 77
1)
Additional equipment
2)
à Lattice extension operating manual
