Driving modes
6.4 Rigging the auxiliary hoist
6 - 24 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
6.4.8 Transporting the auxiliary hoist
•
For transportation, be sure to use a separate vehicle with sufficient load
bearing capacity. Transport dimensions and weight;
à p. 1 - 19.
• Load the separate vehicle in such a way that the weight is evenly
distributed.
• Load the auxiliary hoist in such a way that no motorists and cyclists are
put at risk.
• Lift the auxiliary hoist onto the separate
vehicle and remove the lifting gear.

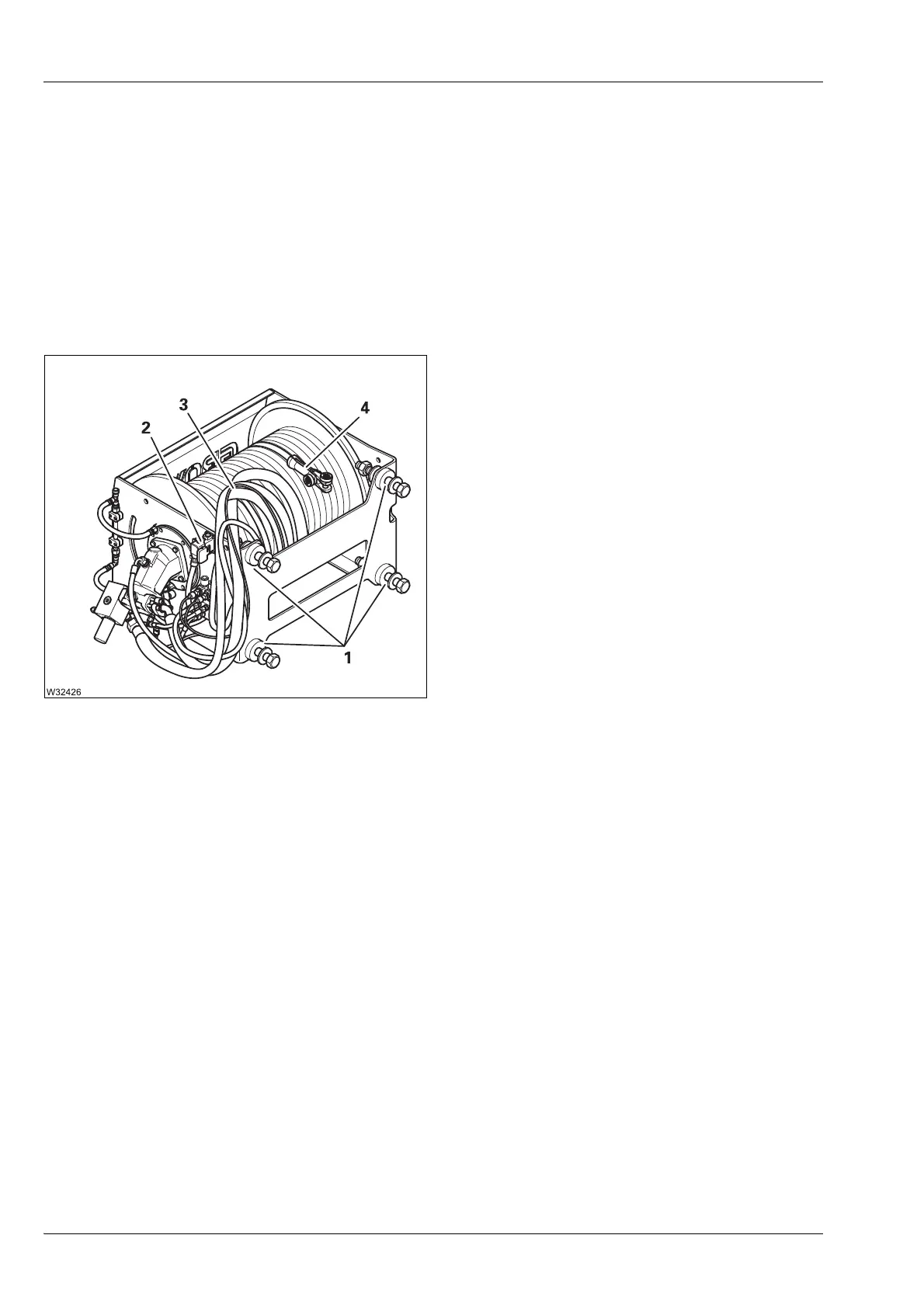

• Use a washer on each side and tighten the
bolts (1) with the nuts (2) at all the connec-
tion points.
• Check that the plug (2) is inserted into the
dummy socket.
• Lay the hoses and cables (3) aside so they
will be become kinked.
• If necessary remove the rope end fitting (4).
