9.2.26 Windows and doors

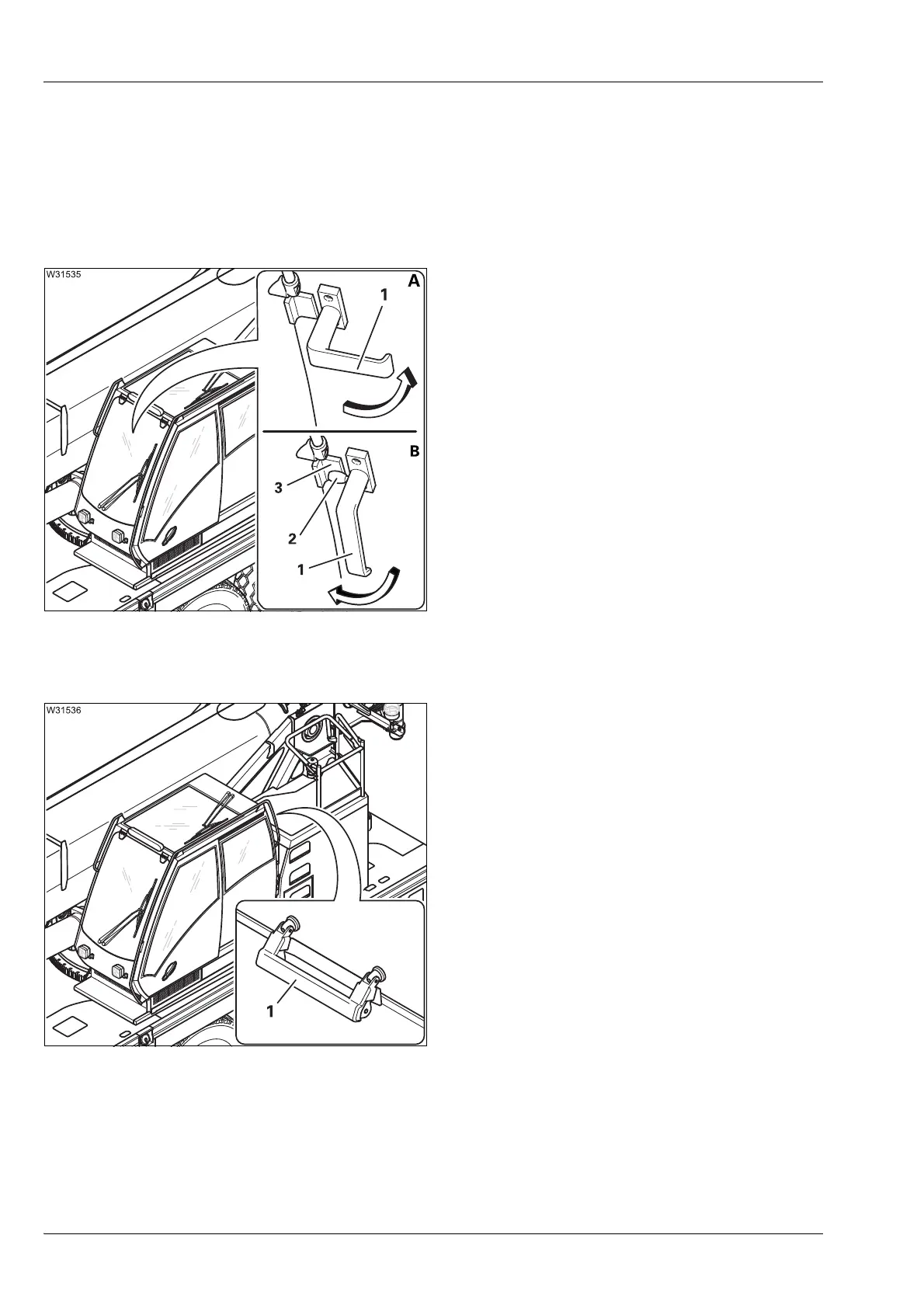

Window The handles on the windscreen and the rear window have the same function.
Open window (A)
• Turn both handles (1) inward.
• Push the window forward.
Close window (B)
• Pull the window closed.
• Turn both handles down – pegs (2) located
behind the clamp (3).
Rear window
Opening
• Raise the handle (1).
• Push window outwards.
Closing
• Pull in window.
• Push down the handle (1).
