Driving modes
6.4 Rigging the auxiliary hoist
Operating manual 3 302 690 en 6 - 21
GMK4100L-1
23.11.2017

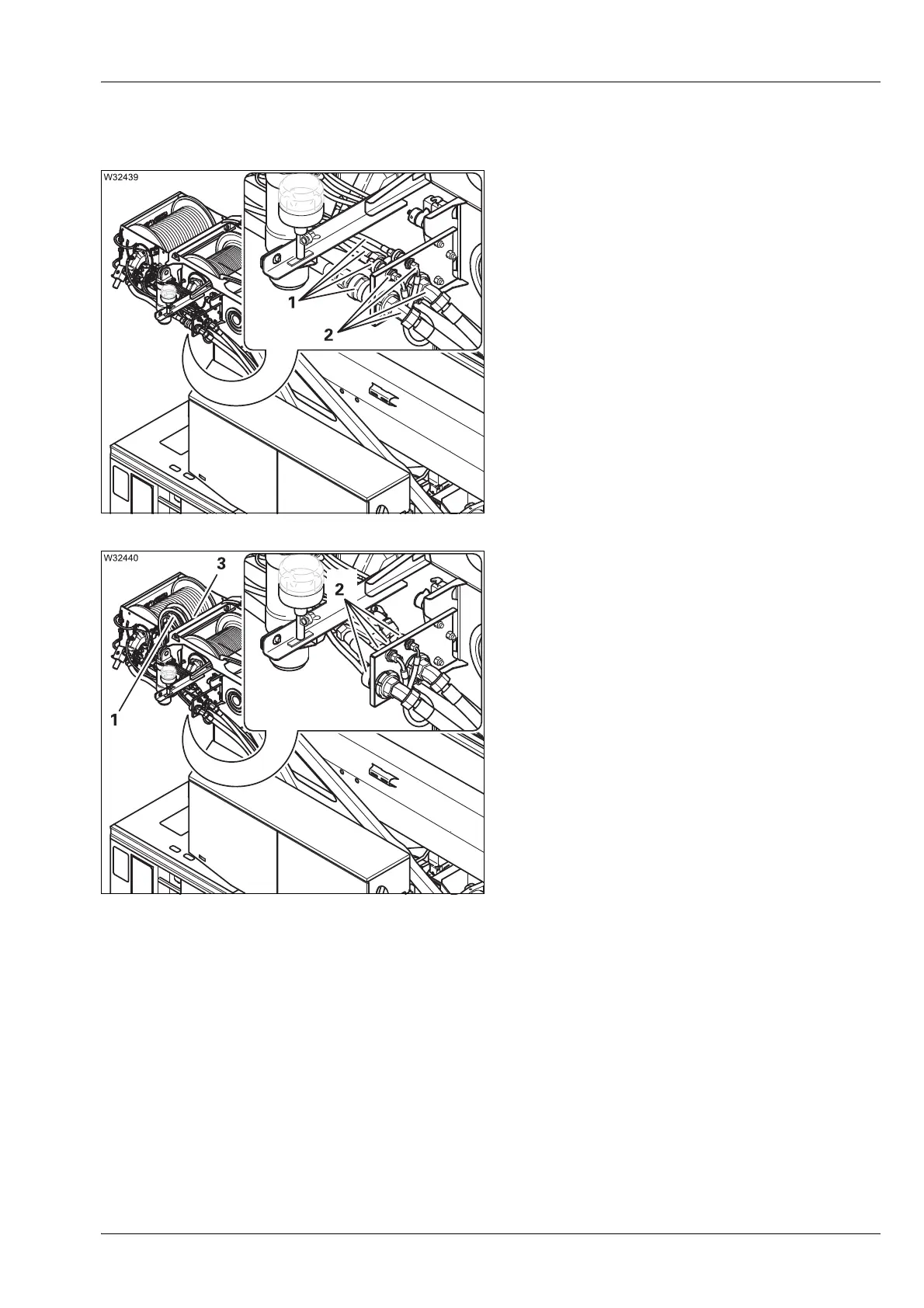

6.4.5 Establishing/disconnecting the hydraulic connections
Making the connection
The assignment is given by the size and colour
designations.
• Connect the hoses (1) to the ports (2).
Undoing the connection
• Remove the hoses (2) from the connec-
tions (1).
• Close all hoses and connections.
• Insert the hoses into the hoist frame (3).
