Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 71
GMK4100L-1
23.11.2017

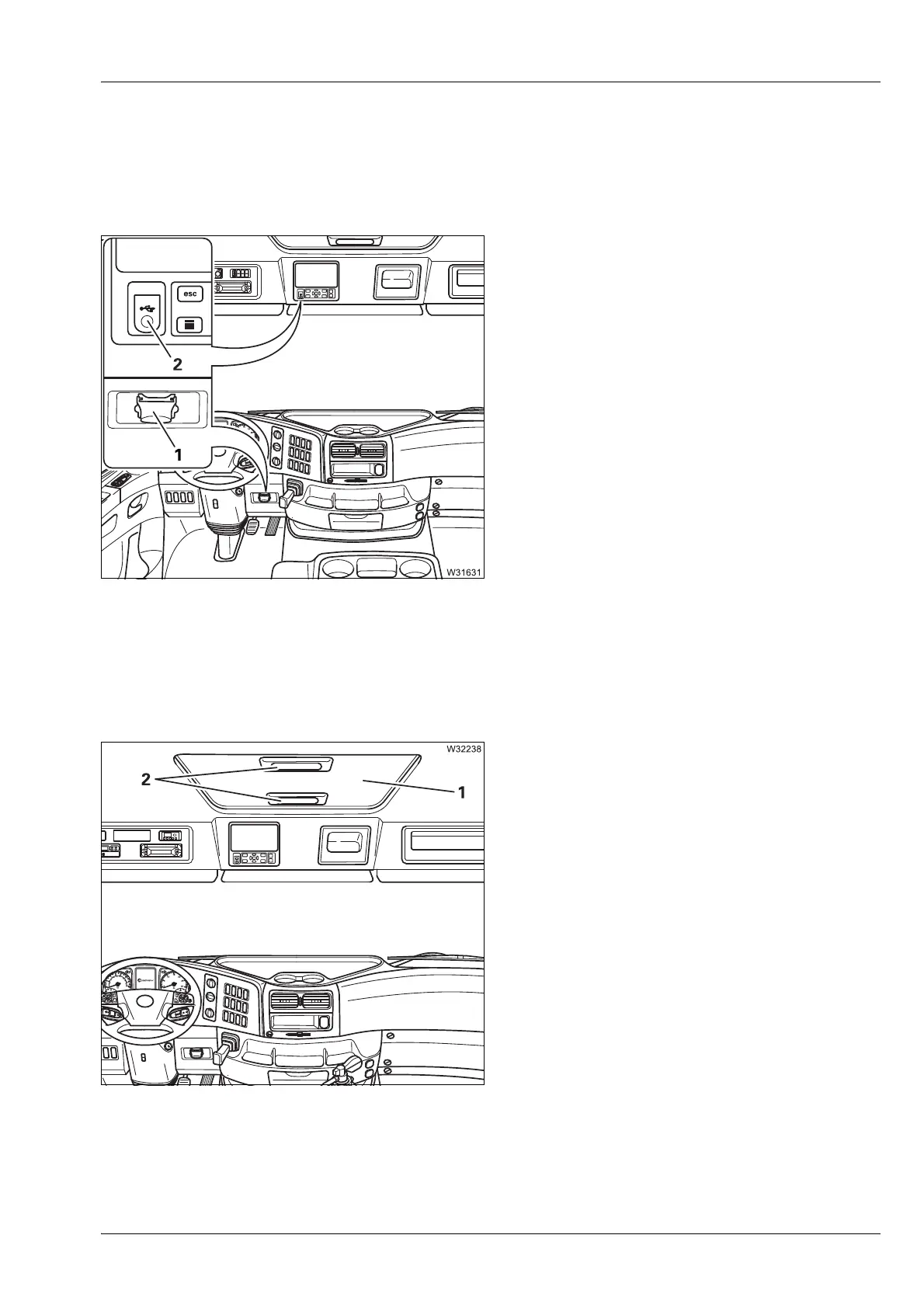

3.2.19 Diagnostics
The diagnostics connections may only be operated by service staff from the
engine manufacturer/transmission manufacturer, or by
Manitowoc Crane Care.
The following connections are below the
cover (4)
.
3.2.20 Push-up roof
Opening
Hold the push-up roof (1) by the handles (2)
and push up into the required position.
Closing
Hold the push-up roof by the handles (2) and
pull down until it latches into place.
1 Carrier electronics diagnostics
2 Transmission diagnostics
3 Engine diagnostics
