Operating elements for crane operation
9.2 Short description of the operating elements
9 - 122 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

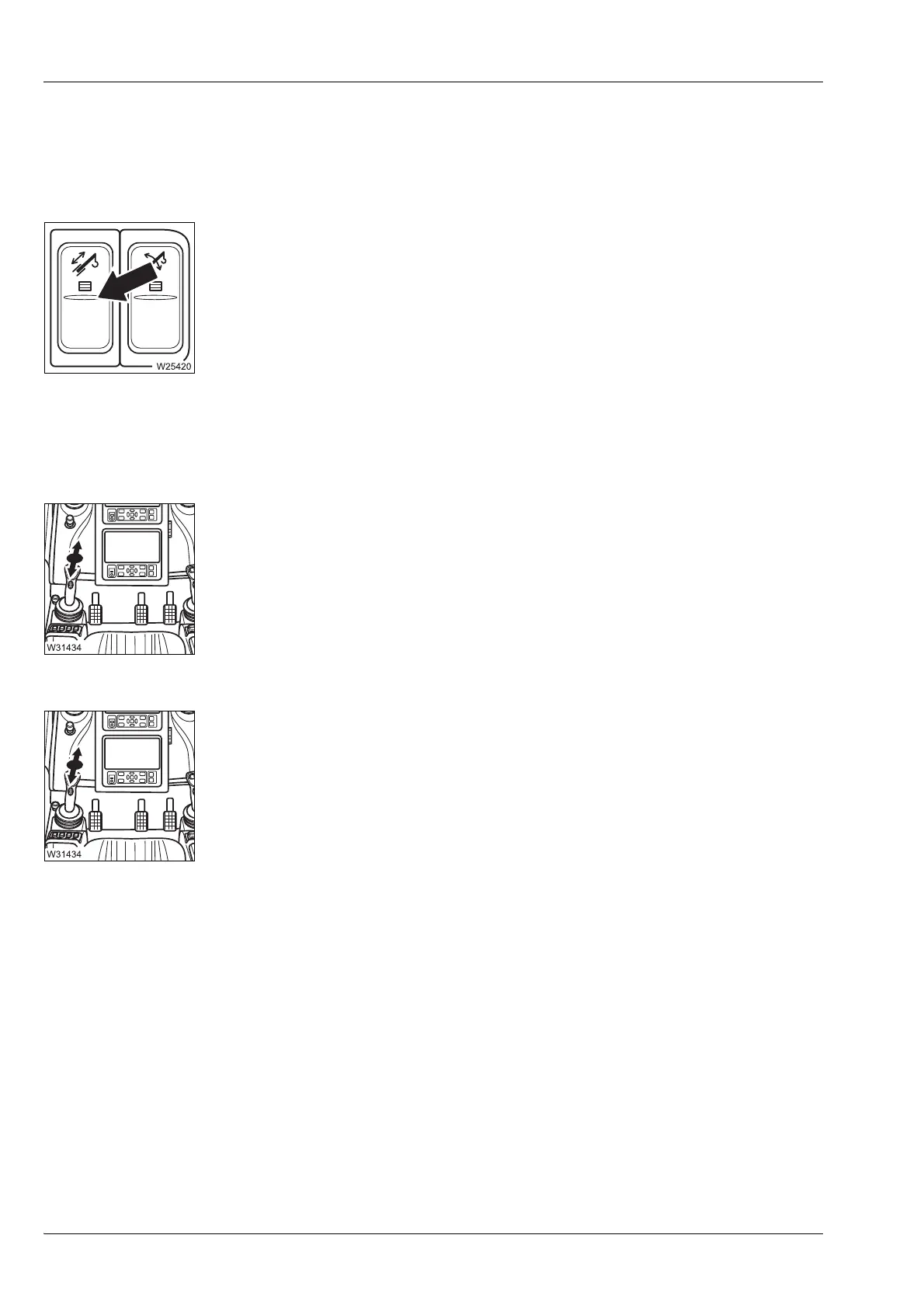

9.2.18 Telescoping mechanism
Control panels à Telescoping mechanism, p. 11 - 89.
Telescoping mechanism on/off
There is a lamp in the button.
Control lever
The control lever configuration is depends on the version.
– Version 1
Left control lever
– Version 2
Right control lever
– Press once: – Lamp bright – telescoping mechanism on,
power units with the same control lever configuration off
– Lamp dim – telescoping mechanism off
à p. 11 - 98
– Back: Retraction of the telescoping
–Forward: Extension
à p. 11 - 98
– To the left: Retraction of the telescoping
– To the right: Extension
à p. 11 - 98
