Rigging work
12.10 Rigging work on the main boom
12 - 100 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
Attaching the
hook block

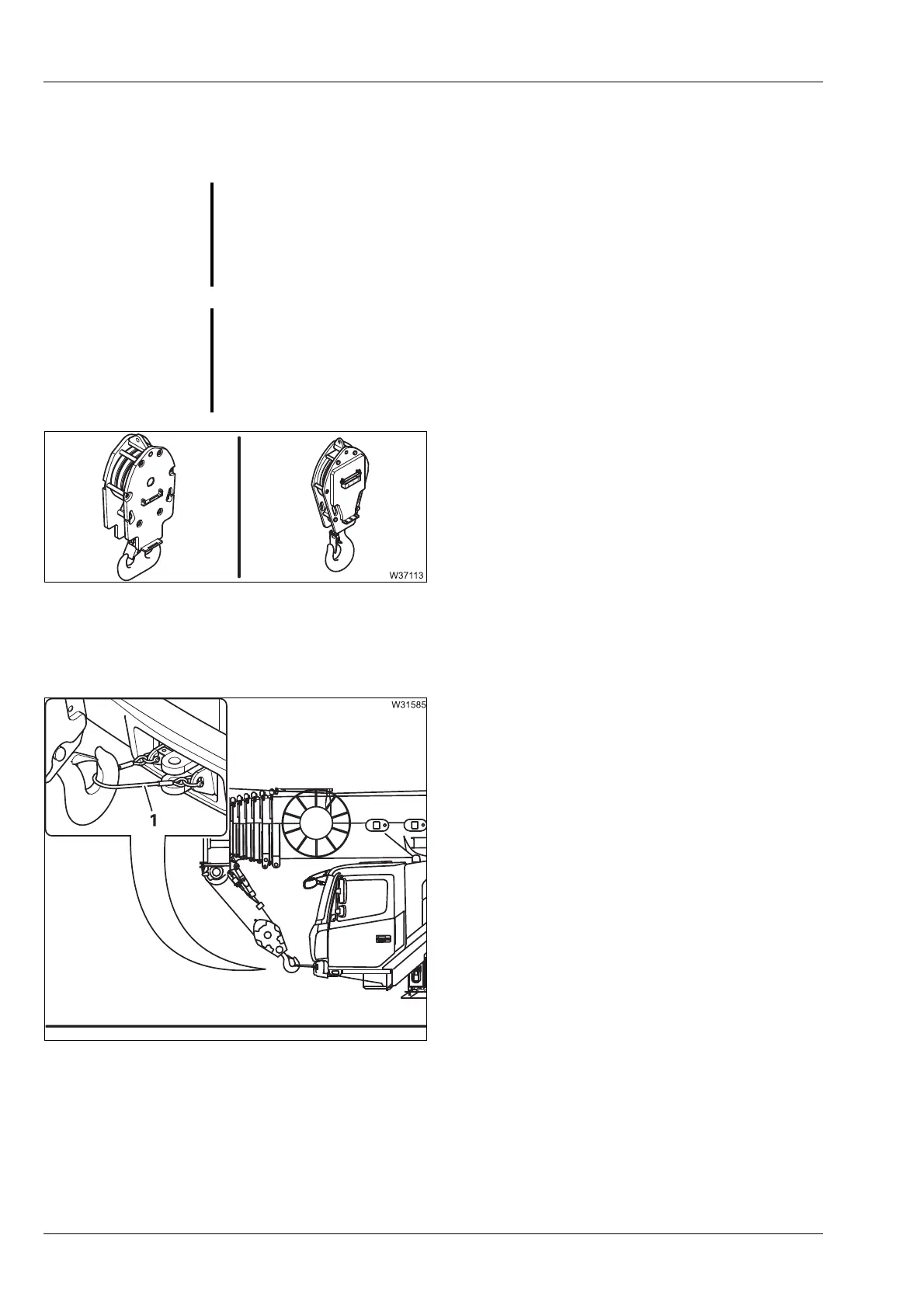

Depending on the driving mode, you can attach the hook block to the front
bumper;
à Driving modes, p. 6 - 1.
Before attaching a hook block with ballast
plates to the bumper, you can dismantle the
ballast plates;
à p. 12 - 106.
H
Do not attach the rope end clamp to the front towing coupling! The towing
coupling must be free for a tow-rod in emergencies.
• Raise the hook block vertically above the
retaining rope (1).
• Lower the hook block and attach the hook
block to the retaining rope (1).
• Set down the main boom on to the boom
rest and pull the hoist rope tight only to the
extent that the hook block is stabilised in its
position.
H
If the lifting limit switch is deactivated while you tighten the hoist rope,
you can override the shutdown of the lifting limit switch;
à p. 11 - 83.
G
Risk of accidents if the view is obstructed
The reeved rope lines obstruct the view of the runway. The number of
legally permissible rope lines can vary depending on the country in which
you are working. According to EU regulations, the hook block may be
reeved no more than 4 times when driving on the road.
G
Risk of accidents from the hook block swinging unexpectedly
The hook block will suddenly swing forward if the retaining rope for the
hook block tears when tightening the hoist rope.
Therefore ensure that the banksman or other persons always stand at a
safe distance to the side of the hook block.
