Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 690 en 12 - 115
GMK4100L-1
23.11.2017

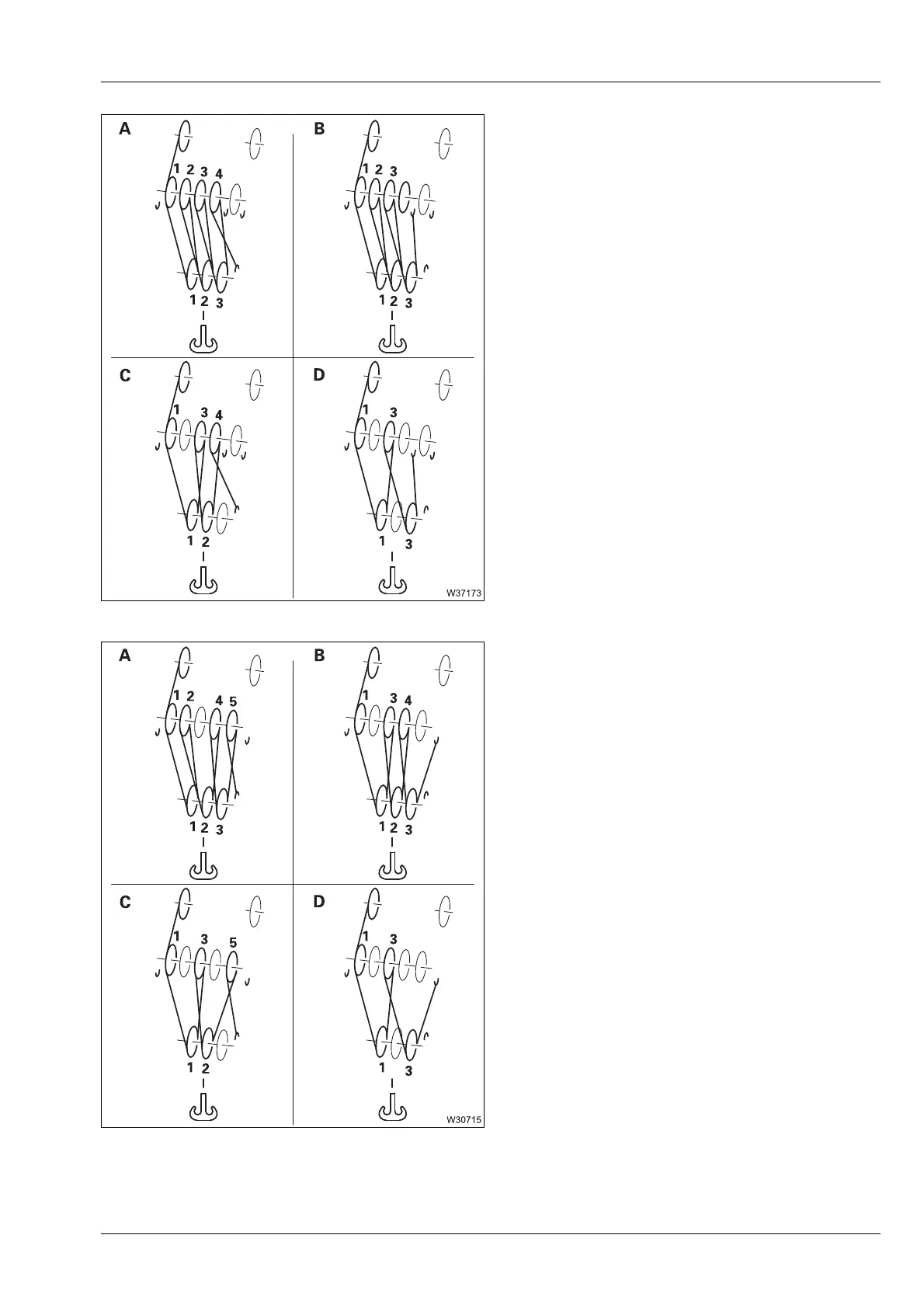

3-sheave hook block
– On version with centre fixed point
3-sheave hook block
– On version without centre fixed point
s
Reeving
A 7-fall
B 6-fall
C 5-fall
D 4-fall
Reeving
A 7-fall
B 6-fall
C 5-fall
D 4-fall
