Rigging work
12.8 Outrigger operation
12 - 40 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

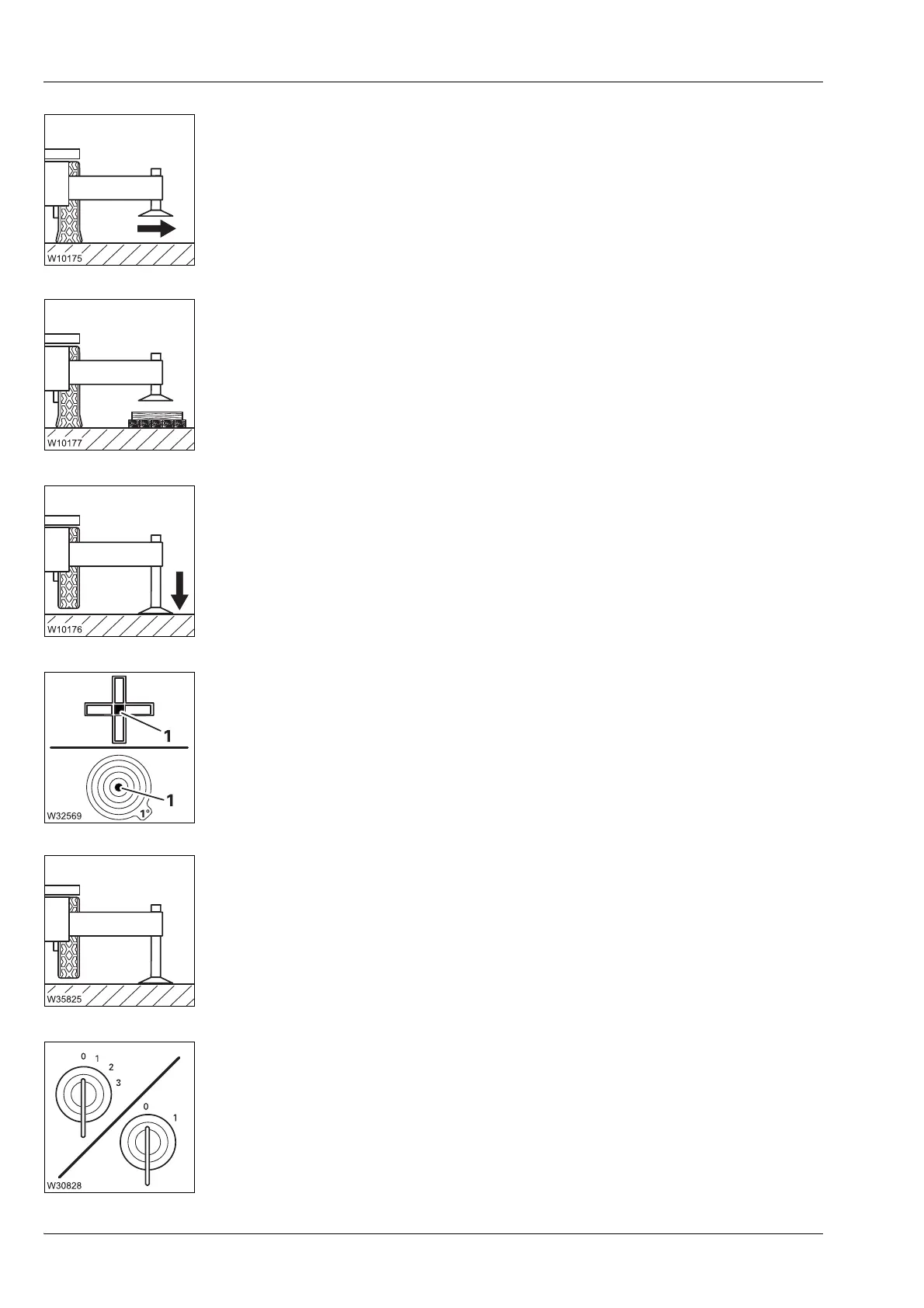

5. Move the outrigger pads into the operating position and secure them;
à p. 12 - 51.
6. Enlarge the load-bearing area if necessary;
à Determining the required load-bearing area, p. 12 - 11,
à Enlarging the load-bearing area, p. 12 - 53.
7. Extend the supporting cylinders until none of the wheels are touching
the ground;
à p. 12 - 54.
8. Level the truck crane horizontally with the outriggers.
The lamp (1) lights up in the measuring range 1°;
à p. 12 - 58.
9. Check that none of the wheels are touching the ground.
Raise the wheels if necessary;
à Operating the axle raising system,
p. 12 - 64.
10. Switch off the engine:
– After operating it from the control units;
à p. 4 - 18.
– After operating it from the crane cab;
à p. 10 - 11.
