Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 51
GMK4100L-1
23.11.2017

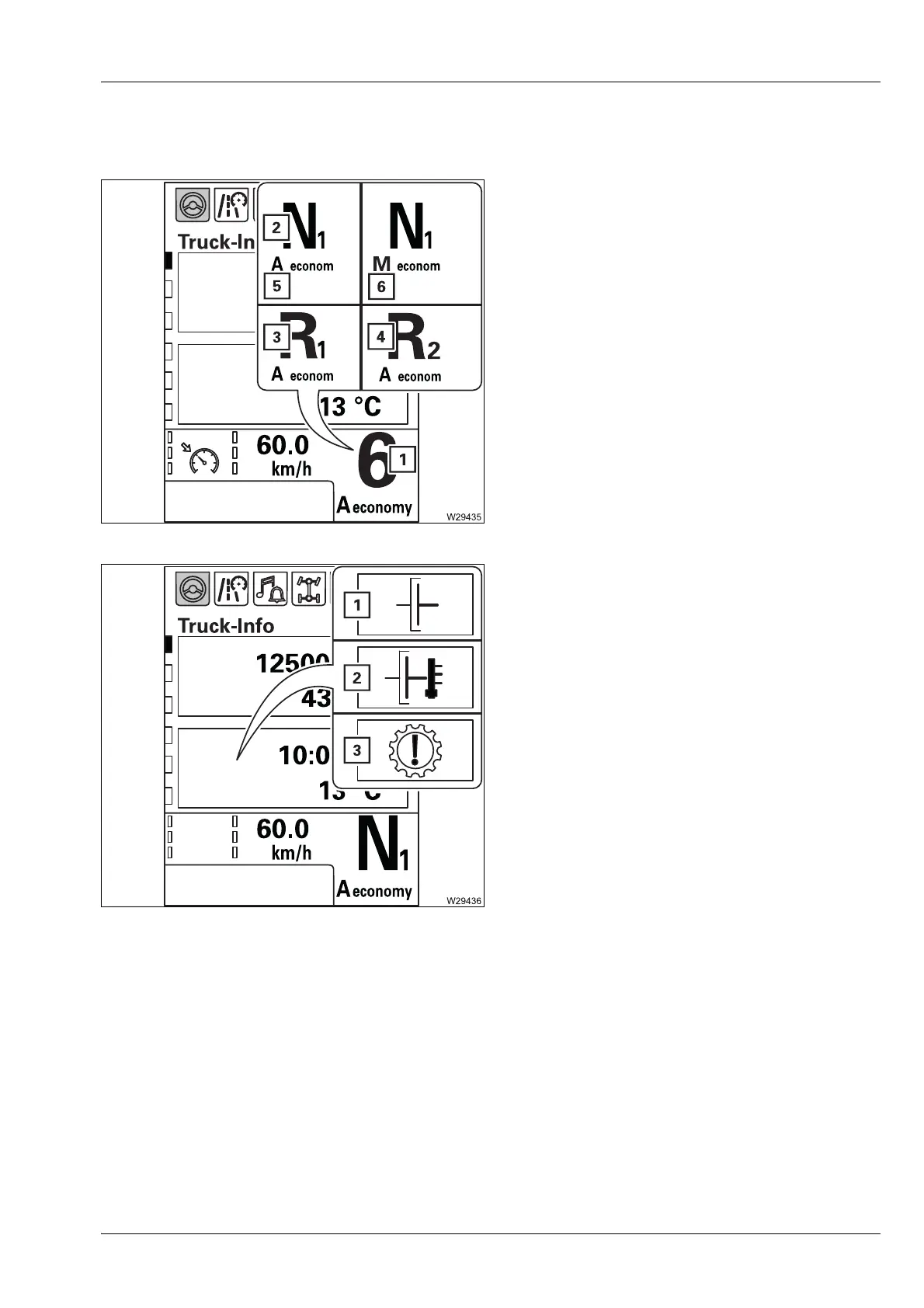

Display, driving
mode,
Transmission display
Error messages display
1 Currently engaged gear – forwards
(1 to 16), e.g. 6
2 Neutral position switched on
3 Gear currently engaged – 1st reverse gear
4 Gear currently engaged – 2nd reverse
gear
5
Automatic operating mode
6
Manual operating mode
1 Clutch heavily loaded
2 Clutch malfunction
3 Gear shift malfunction
