Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 57
GMK4100L-1
23.11.2017
Longitudinal differential lock on/off
For drive 8 x 8 x 8 – simultaneously drive of second axle line on/out

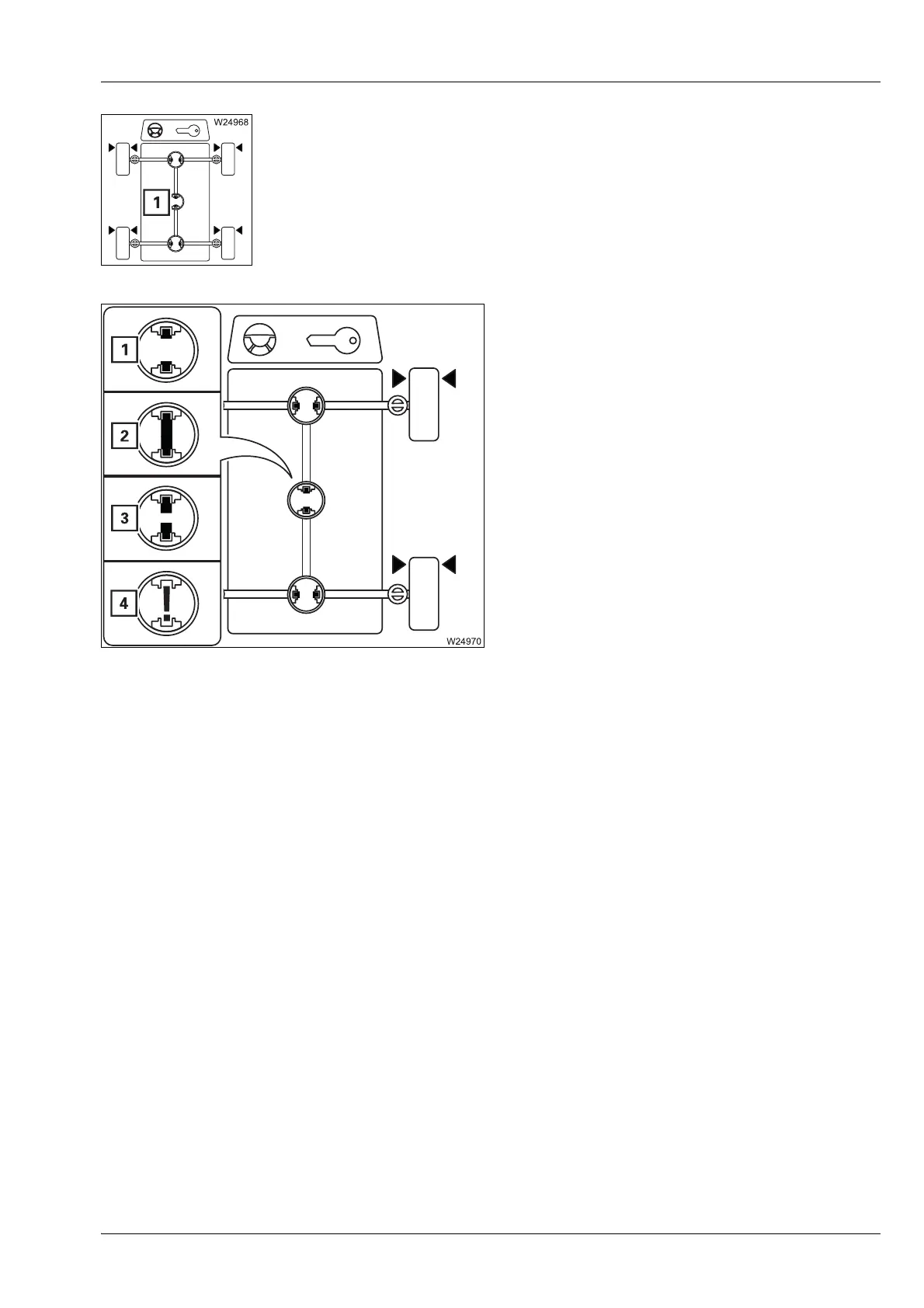

Longitudinal differential lock display
The current status is shown using different
symbols.
– To switch on: Select symbol (1) and confirm – symbol is red
– To switch off: Select symbol (1) and confirm – symbol is green
1 Green – lock off
2Red – lock on
3 Yellow – intermediate position
4 Violet – error
à p. 5 - 51
