16.01.2018
30 3 302 710 en Additional pages GMK4100L-1
After driving
•

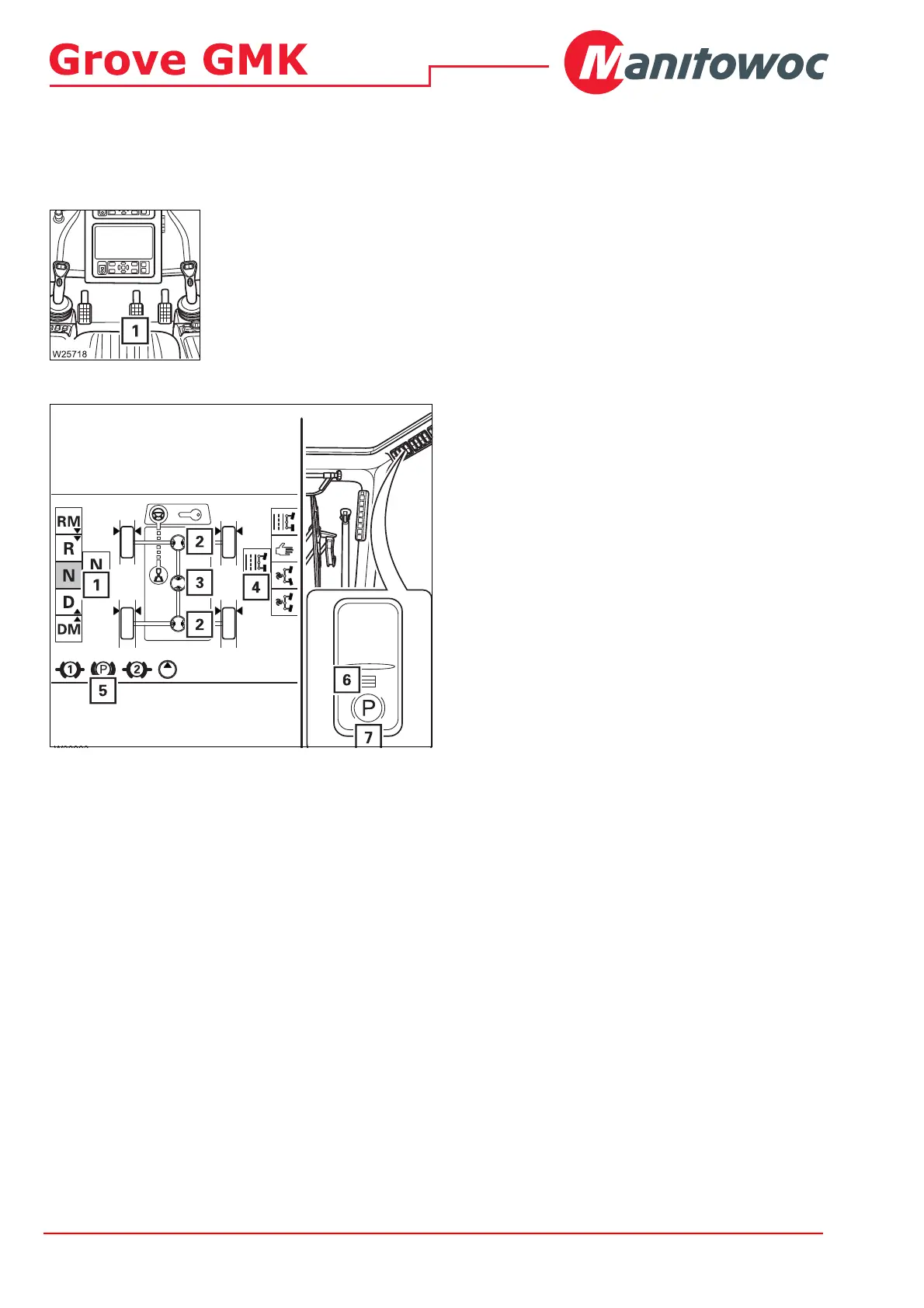

Bring the truck crane to a halt with the brake pedal (1).
• Restore the original condition:
– Switch the transmission to neutral
position (1)
– Switch off longitudinal differential lock (3)
– Switch off transverse differential locks (2)
– Switch on normal steering mode (4)
• Press button (7) down once. The lamp (6)
lights up, symbol (5) is red – the parking
brake is applied.
• If necessary, switch the engine off; à Supplied operating manual.
• Remove the ignition key from the ignition lock in the driver's cab and lock
the driver's cab to prevent unauthorised access.
• Support the truck crane on outriggers if you do not intend to work in the
Free on wheels working position.
