Driving modes
6.5 Installing/removing the outrigger beams
Operating manual 3 302 690 en 6 - 45
GMK4100L-1
23.11.2017

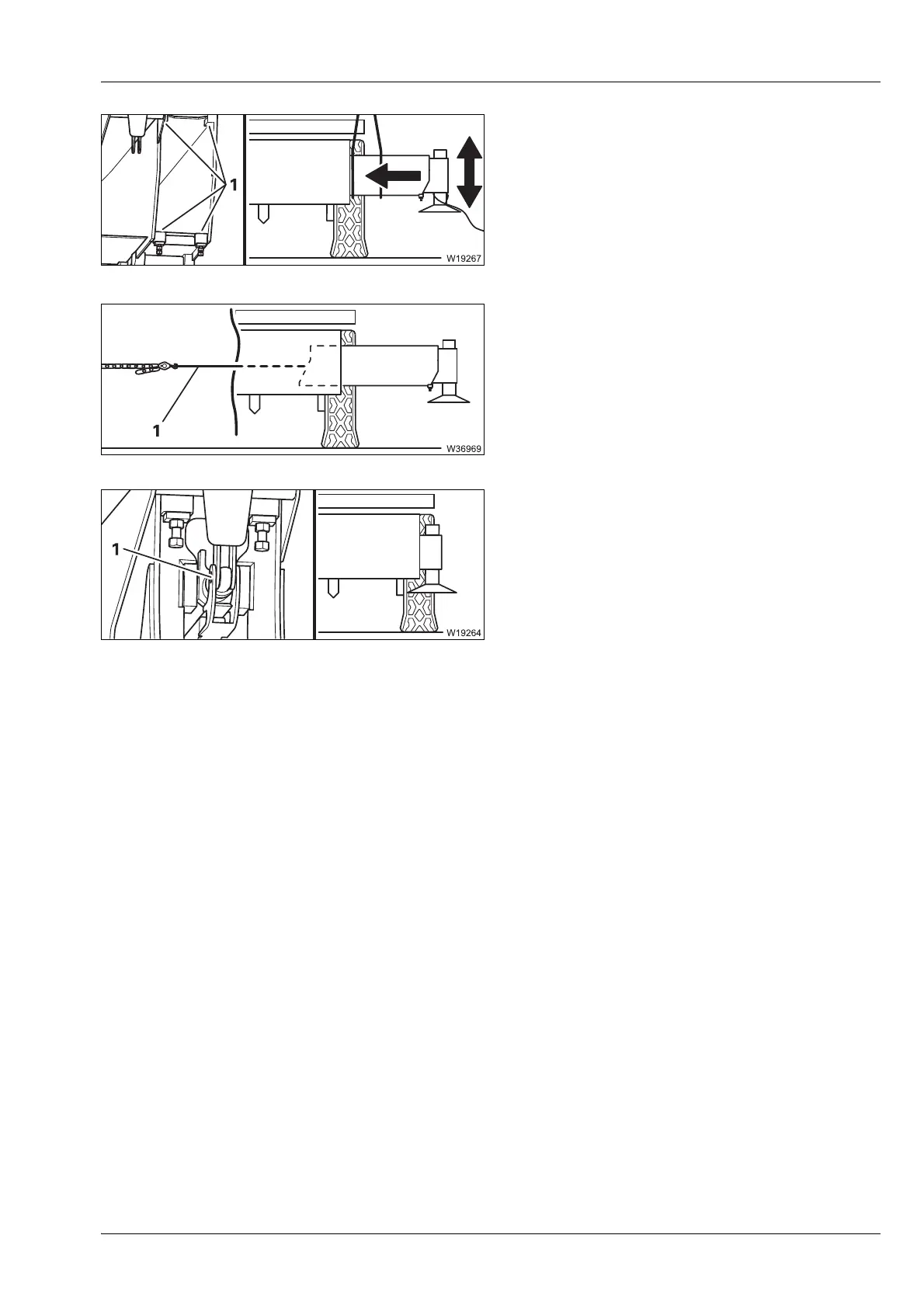

• Lift the outrigger beam as far as possible
into the outrigger box.
Correct the height so that it does not remain
hanging on the edges (1).
• Remove the lifting gear from the centre of
gravity.
• Fasten a chain hoist to the lifting gear (1).
• Pull the outrigger beam in so far until the
connecting points (1) align.
• Remove the chain hoist and lifting gear.
