Manitowoc Grove GMK4100L-1

Malfunctions in driving mode
8.5 Emergency operation and breakdown assistance
8 - 36 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
• Tighten the wheel nuts (1) and (2)
finger-tight to secure the wheel.
• Tighten the remaining wheel nuts
finger-tight.

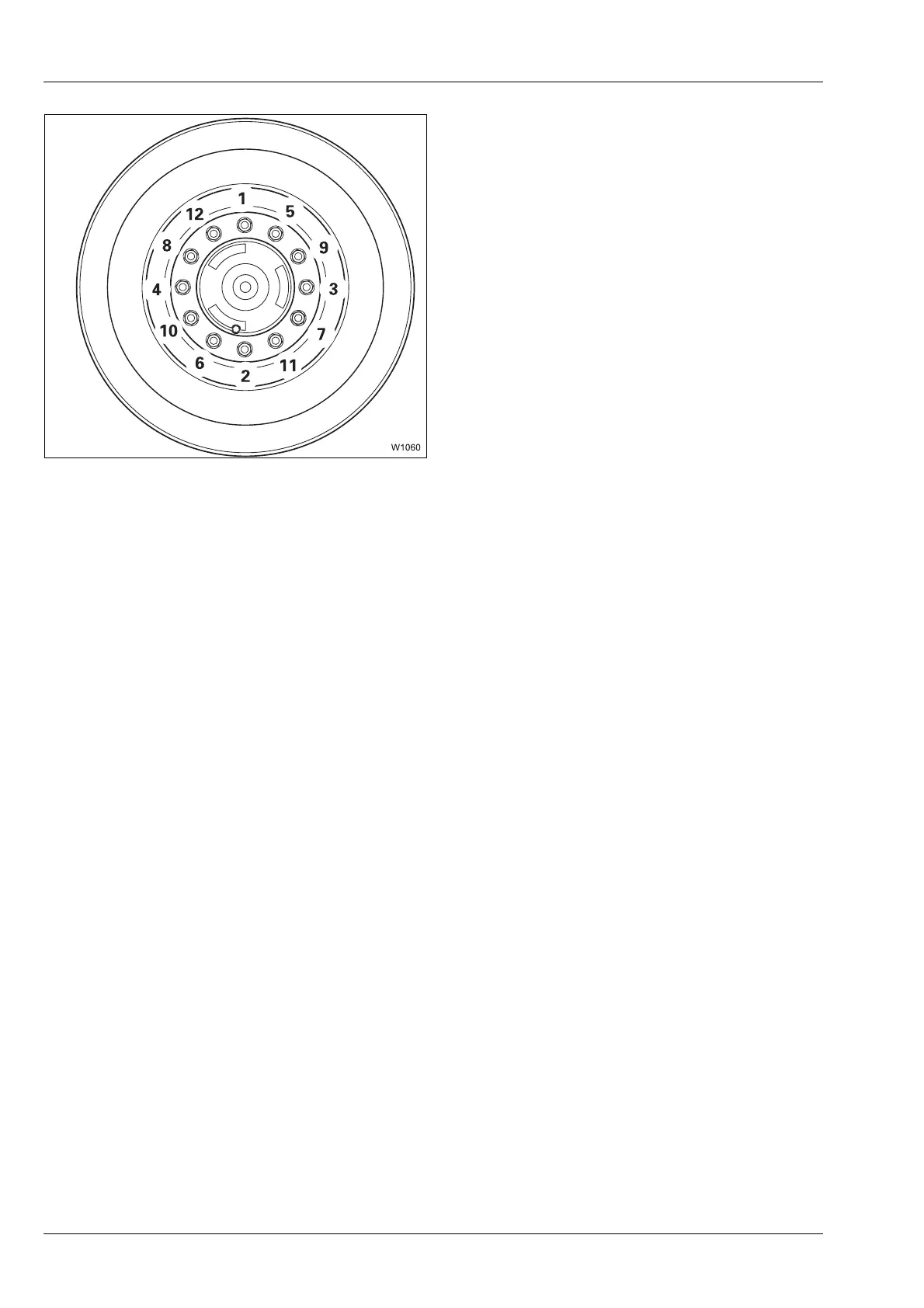

• Always tighten the wheel nuts in the
order (1) to (12).
– Tighten all wheel nuts first to 200 Nm
(150 lbf ft).
– Then all lug nuts to 400 Nm (300 lbf ft).
– Finally tighten all wheel nuts to 650 Nm
(480 lbf ft).
After 50 km (30 mi) and 150 km (90 mi)
retighten all wheel nuts to 650 Nm (480 lbf ft).
