Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 690 en 9 - 51
GMK4100L-1
23.11.2017

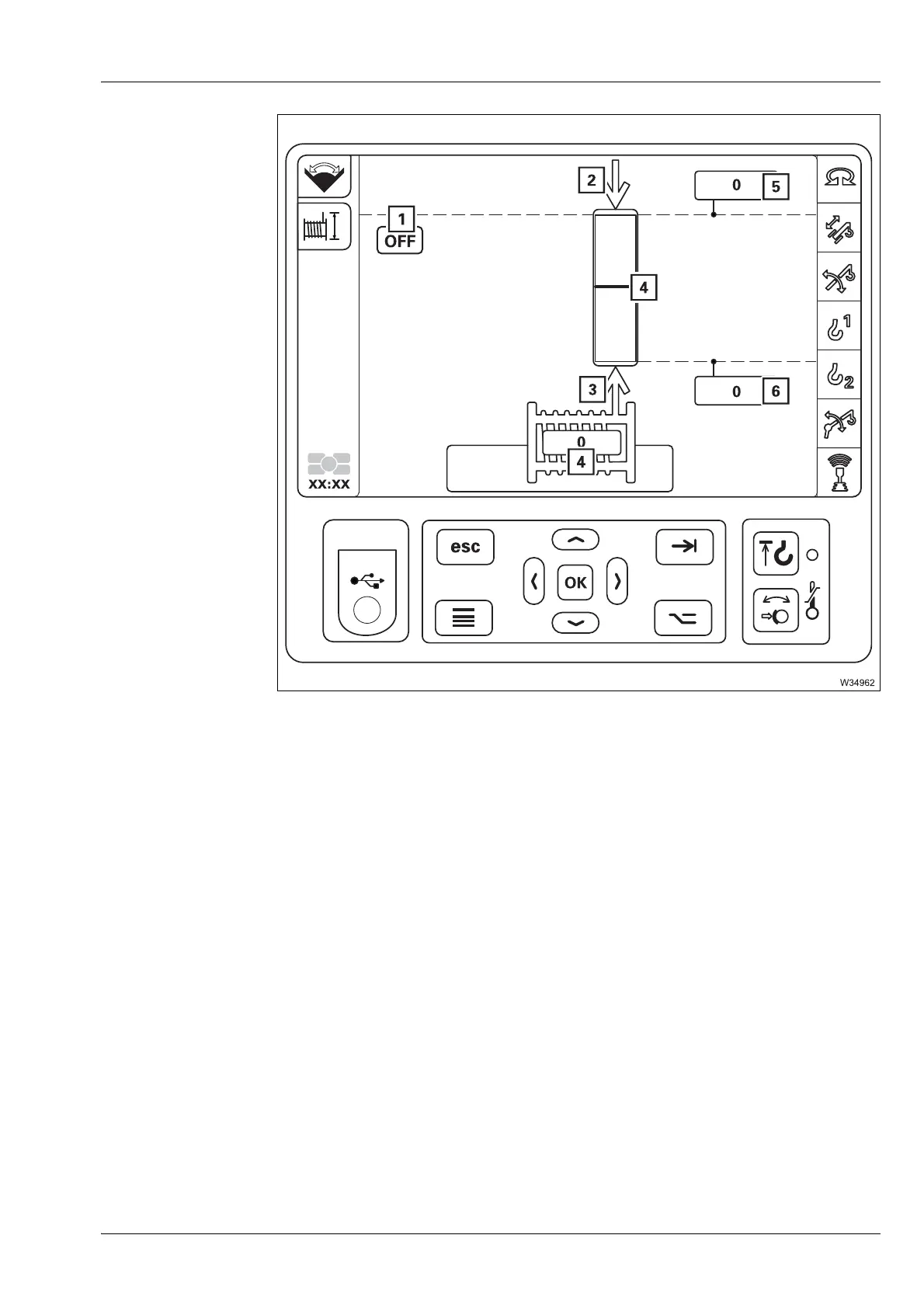

Hoist rope travel
limitation menu
1 Switching monitoring function on/off à p. 11 - 146
2 Input confirmation display, top
à p. 11 - 142
3 Input confirmation display, bottom
à p. 11 - 142
4 Current hoist rope position display
à p. 11 - 142
5 – Hoist rope travel limitation input, top
– Hoist rope travel limitation display, top
à p. 11 - 142
à p. 11 - 139
6 – Hoist rope travel limitation input, bottom
– Display hoist rope travel limitation bottom
à p. 11 - 142
à p. 11 - 139
