Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 690 en 9 - 53
GMK4100L-1
23.11.2017

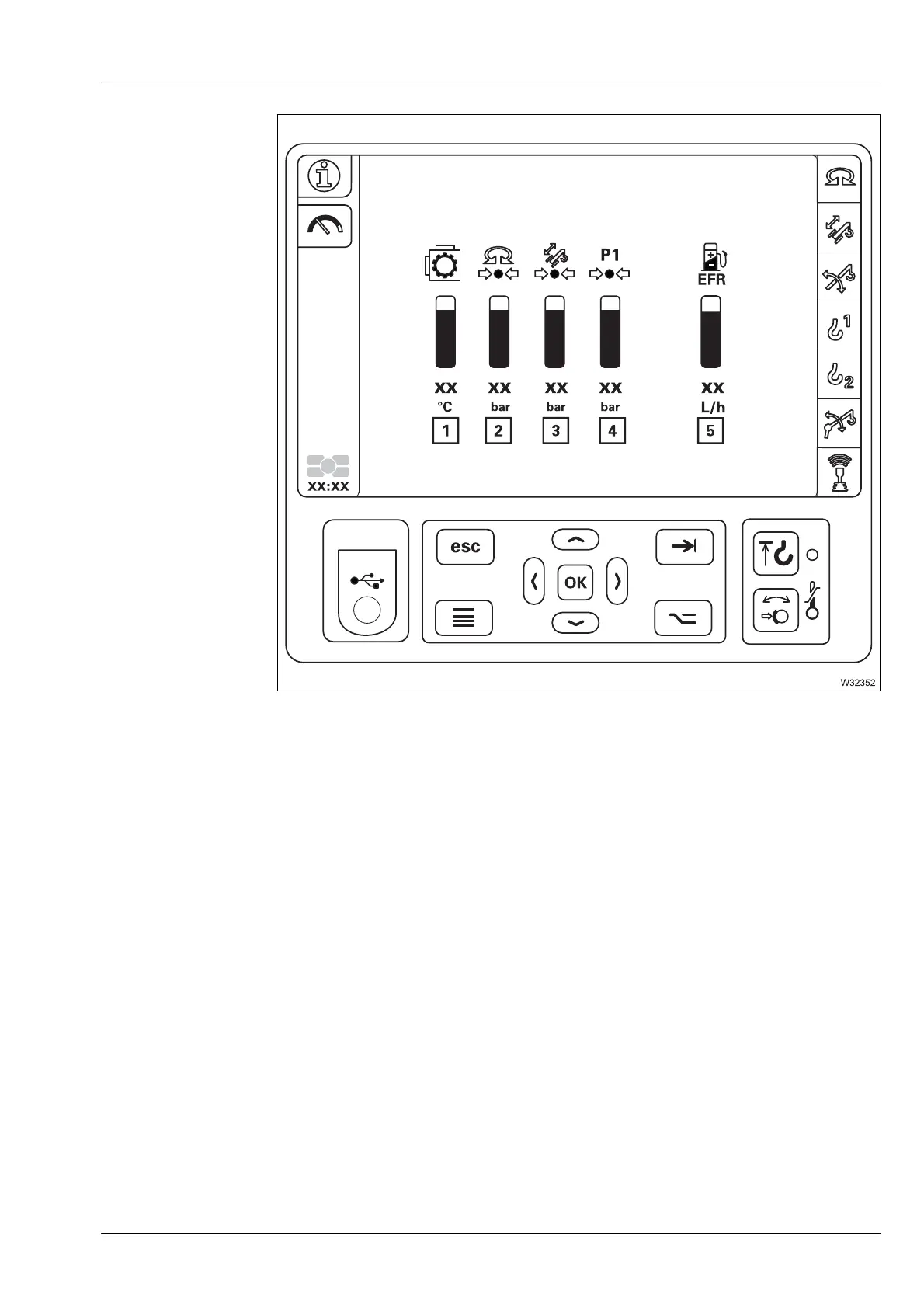

Hydraulic pressure
and fuel consump-
tion menu
1 Angle gear temperature display à p. 9 - 128
2 Slewing gear hydraulic circuit pressure display
à p. 9 - 128
3 Telescoping cylinder pressure display
à p. 9 - 128
4 Hydraulic circuit pressure display
à p. 9 - 128
5 Display of consumption in litres per hour
1)
1)
Additional equipment
