Operating elements for crane operation
9.2 Short description of the operating elements
9 - 130 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

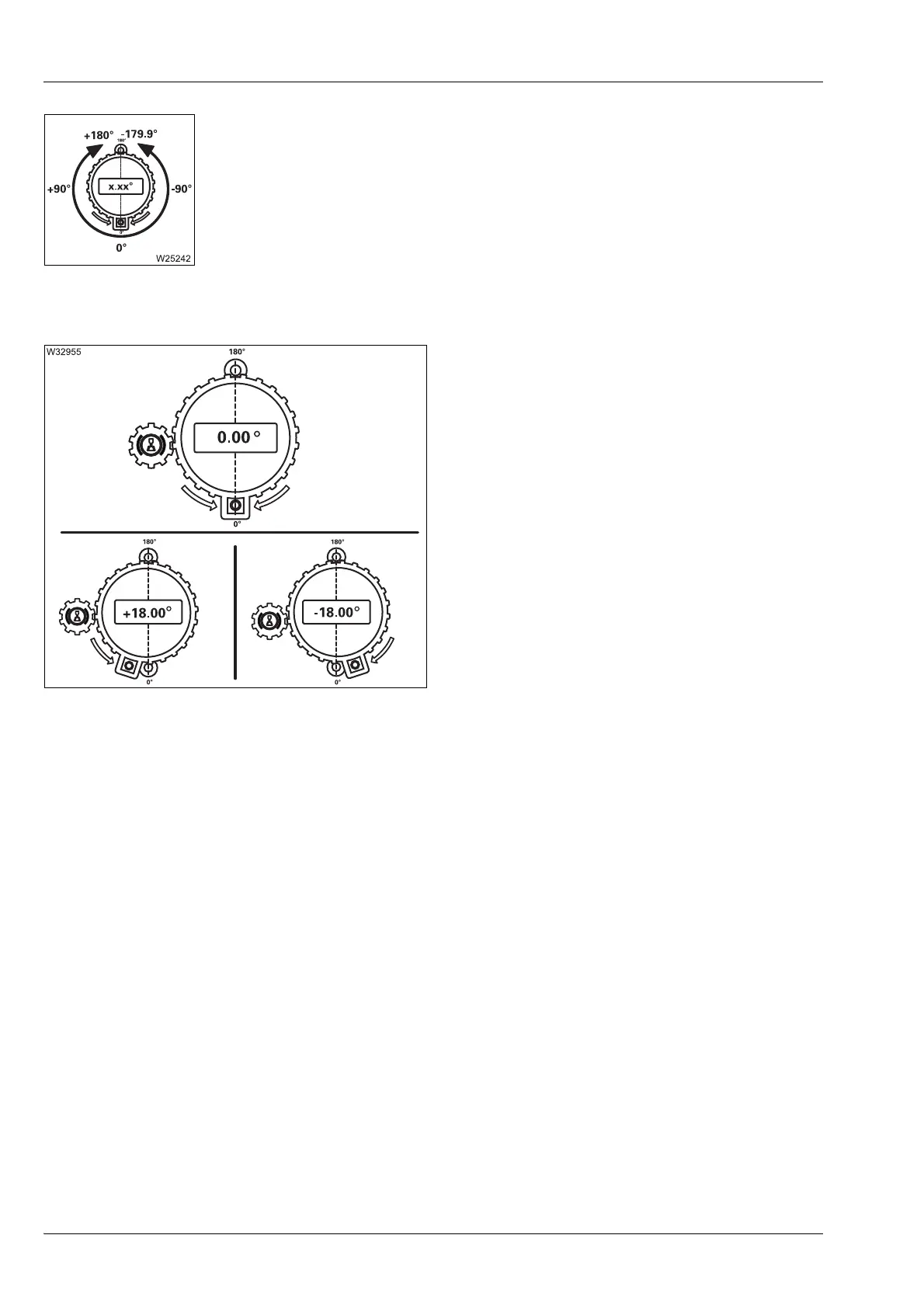

Current slewing angle display
Directional indicator
Current position ± 20° in front of the locking
point.
0°: Position
0° to the rear – locking point
180°: Position
180° to the front – locking point
+ 0.1 to +180.0°: Turned to the right from 0°
-0.1 to -179.9°: Turned to the left from 0°
à p. 11 - 115
– Both arrows: locking point reached
– One arrow: direction of arrow = turn-
ing direction towards the
locking point
à p. 11 - 15
