Operating elements for crane operation
9.2 Short description of the operating elements
9 - 138 3 302 690 en Operating manual
GMK4100L-1
23.11.2017
Boom system display
Boom system entry
For the
Standard slewing range type only.
In input mode – select and confirm the boom system
Input lattice extension – the length before the angle
In input mode – select and confirm length.
Input lattice extension – the length after the angle
In input mode – select and confirm length.
Lattice extension input – angle
Only for manually inclinable lattice extensions
In input mode – select and confirm the angle.
à Enter rigging mode, p. 11 - 32

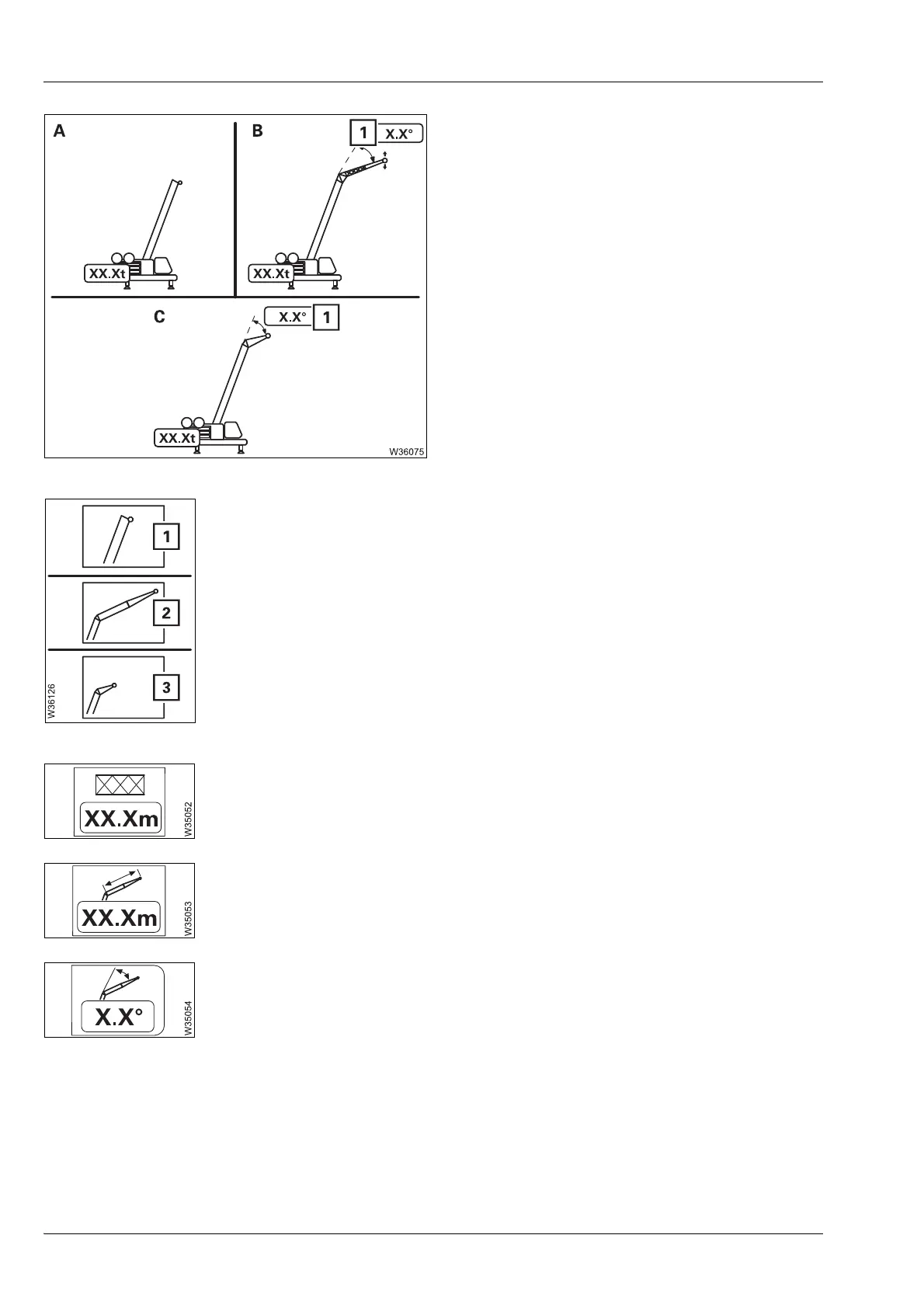

A Main boom display
B Lattice extension display
C Heavy load lattice extension display
1 Angle of the lattice extension display
(for inclinable lattice extension)
1 Main boom
2 Lattice extension/boom extension
3 Heavy load lattice extension
